2
-4
Apr. 2007
DSC48
417W202A

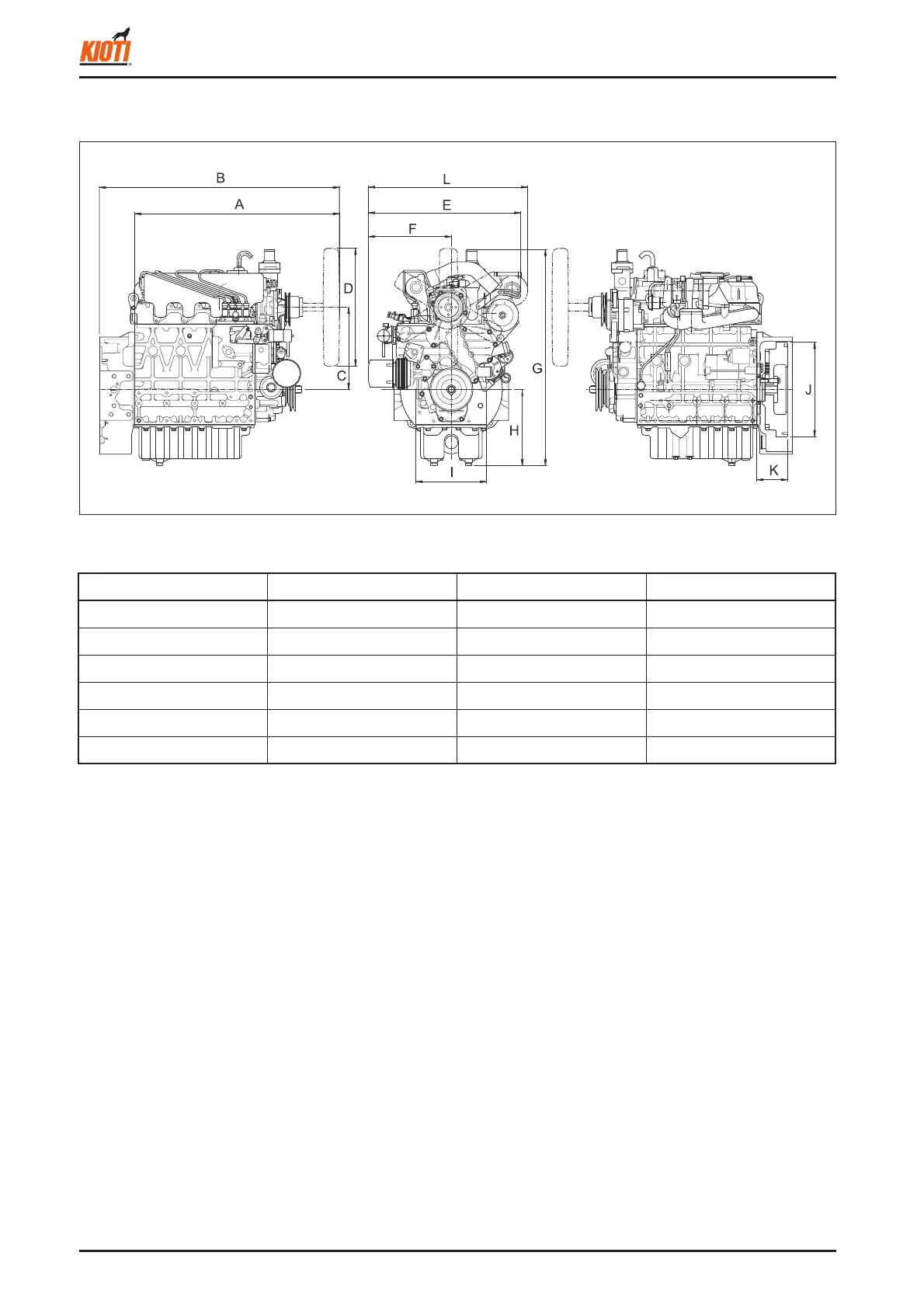

1.3 DIMENSIONS
mm (in.)
1.4 GENERAL PRECAUTIONS
• When disassembling the engine, arrange each part in a
clean area. Make sure not to mix them. Keep the bolts
and nuts near where they were removed.
• Before servicing electronic devices, disconnect the
negative terminal from the battery.
• When gaskets or O-rings are dissembled, replace them
with new ones. Apply grease on the new O-ring and oil
seal when reassembling.
• When replacing parts, use only genuine KIOTI parts to
maintain engine performance and safety.
• To prevent oil and water leakage, apply non-drying ad-
hesive to the gaskets according to this manual before
reassembling.
• When hoisting up the engine, use the hook provided on
the cylinder head.
• When installing the snap ring on the shaft or hole, di-
SPECIFICATIONS
4A220C-CH 4A220C-CH
A 655.8 (25.82) G 772.8 (30.43)
B 824.3 (32.45) H 296.7 (11.68)
C 280 (11.02) I 240 (9.45)
D
φ
400 (15.75) J
φ
328 (12.91)
E 516.5 (20.35) K 92.5 (3.64)
F 282.4 (11.19) L 545.9 (21.49)
