Daedong DSC48 - Adjusting the Belts

1
-18
Apr. 2007
DSC48

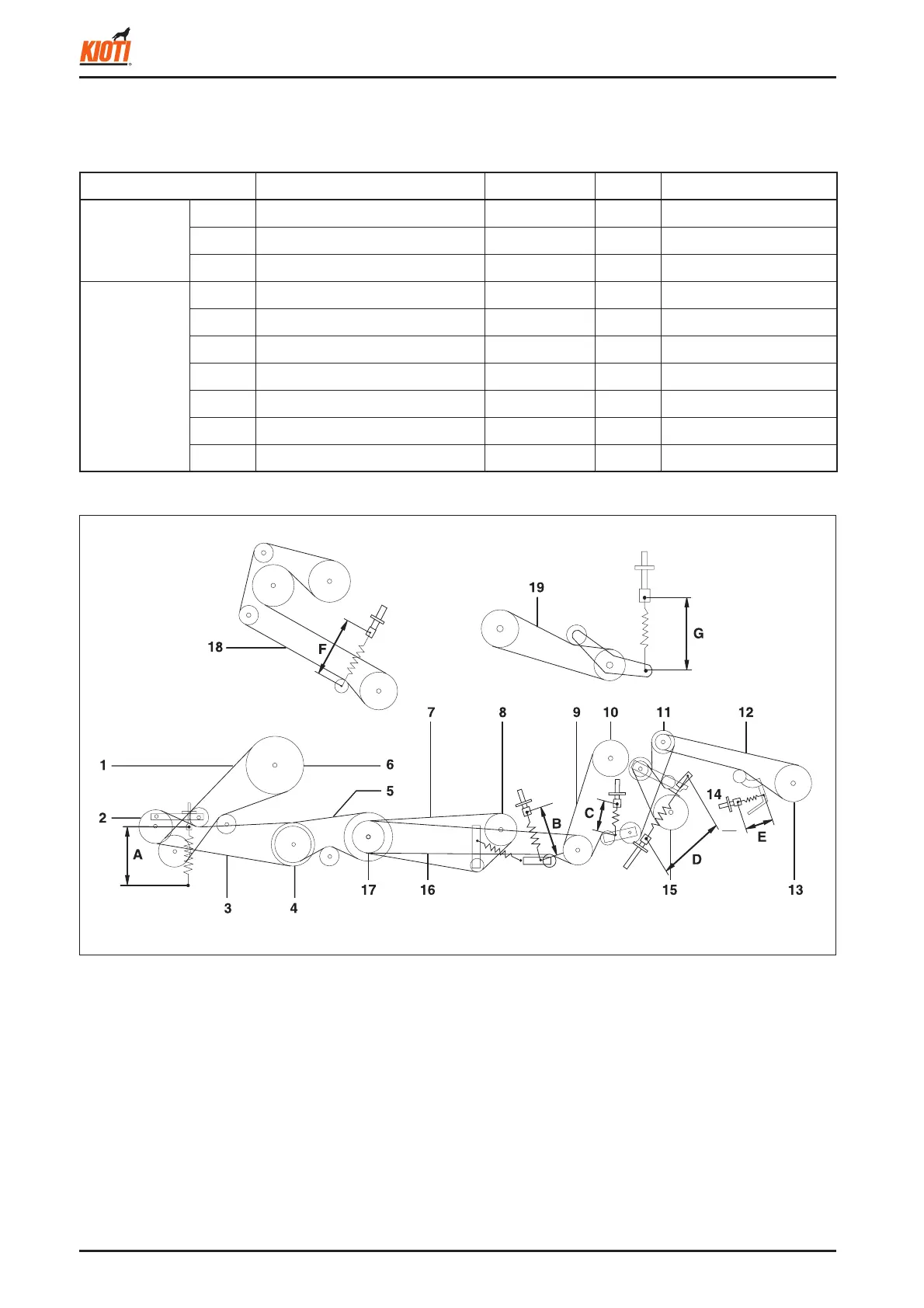

1.9.2 ADJUSTING THE BELTS
Adjust each belt’s tension with an adjusting bolt or cable bolt to maintain the proper return spring length as shown in the
following table.
417W143A
Straw discharging chain drive beltThreshing cylinder drive belt
Area around engine and LH of threshing unit
(1) HST pulley
(2) Reaping unit drive
belt B54
(3) Reaping unit pulley
(4) Threshing drive belts
REC385 (2EA)
(5) Engine pulley
(6) Transmission drive
belt REC B48.5
(7) B66
(8) Blower
(9) B108
(10) Separator drum
(11) Dust discharge fan
(12) B55
(13) Cutter
(14) Rocker
(15) B42
(16) B101
(17) Counter
(18) C145
(19) B38
(A) 193 mm
(B) 160 mm
(C) 165 mm
(D) 396 mm
(E) 165 mm
(F) 286 mm
(G) 145 mm
No. Belts Specifi cation Quantity Spring length (installed)
Engine unit 1 Transmission drive belt REC B49 2 193 mm
2 Threshing drive belt Cog C38.5 2 143 mm
3 Reaping drive belt LB53 1 102 mm
Threshing unit 4 Threshing rotor drive belt LC145 2 286 mm
5 Blower drive belt LB66 1 -
6 No.1 drive belt LB101 1 160 mm
7 No.2 drive belt LB108 1 165 mm
8 Oscillator drive belt LB42 1 396 mm
9 Straw discharge chain drive belt LB38 1 145 mm
10 Cutter drive belt LB55 1 165 mm
