Daedong DSC48 - Checking Manual Switch (AFC); Checking Automatic Feeding Depth Control Switch (AFC); Checking Oil Switch

7
-38
Apr. 2007
DSC48

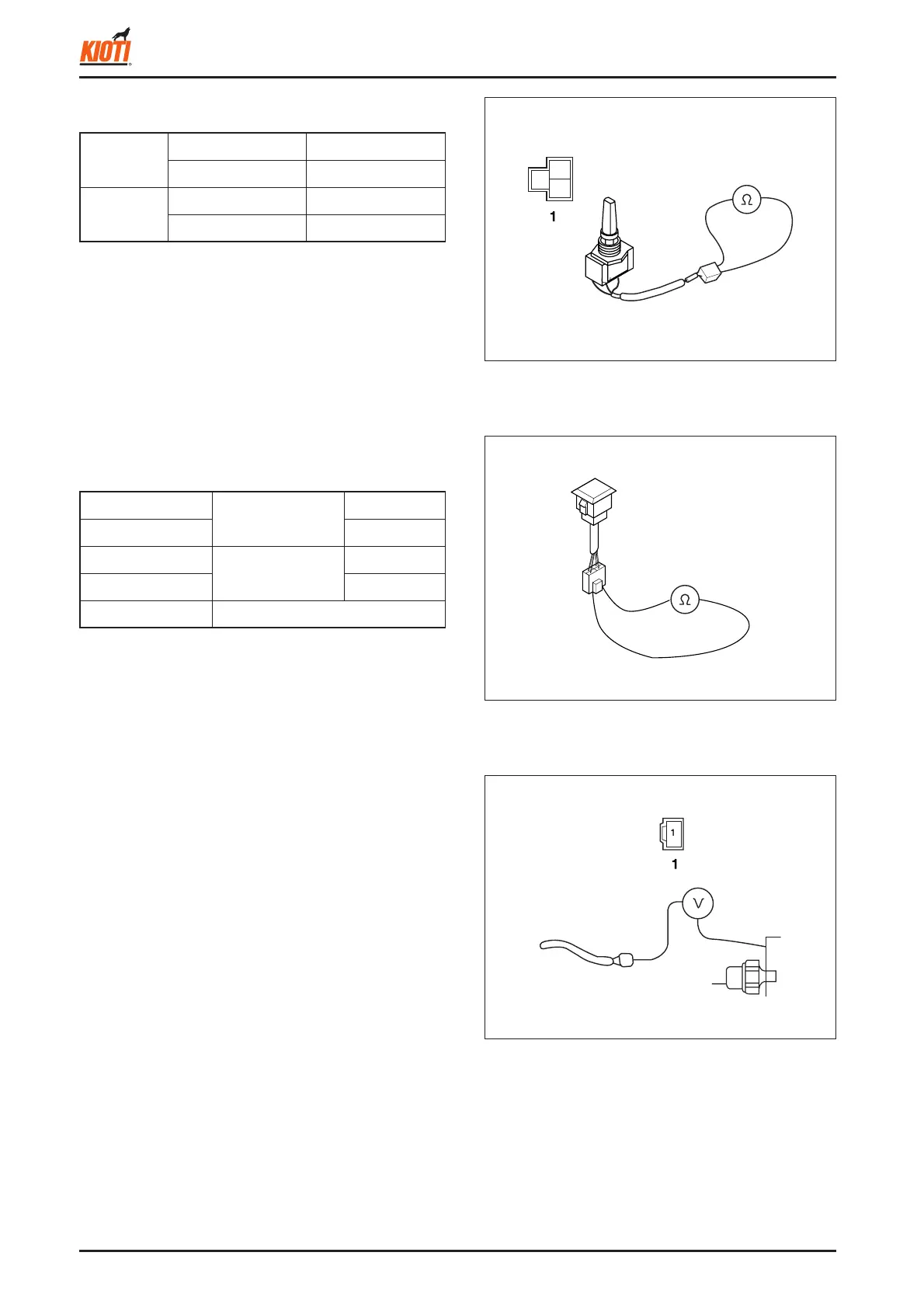

7.1.16 CHECKING MANUAL SWITCH (AFC)
417W750A
(1) Sensor side
7.1.17 CHECKING AUTOMATIC FEEDING
DEPTH CONTROL SWITCH (AFC)
• If the switch is normal, check the connector and wiring.
417W751A
(1) Sensor side
If the above operation occurs, it is normal.
• If the switch is normal, check the switch operation, con-
nector and wiring.
7.1.18 CHECKING OIL SWITCH
1. Check the operation of the oil switch.
2. Connect the positive terminal to the wiring side and the
negative terminal to the body ground.
3. Set the tester to the "DCV" range.
4. Turn the ignition switch to the "ON" position.
5. If the measured voltage reads approx. DC 12 V, the
wiring is normal (replace the oil switch).
• If the measured voltage does not read around DC 12 V,
check the oil lamp, fuse and wiring for open circuit.
417W752A
(1) Wiring side
1
2
3
Between 1
and 2
Deep Continuity
No operation No continuity
Between 3
and 2
Shallow Continuity
No operation No continuity
Between 1 and 4
When depressed
(ON)
No continuity
Between 1 and 2 Continuity
Between 1 and 4
When not de-
pressed (OFF)
Continuity
Between 1 and 2 No continuity
Between 5 and 3 Approx. 6 - 9
Ω
