Daedong DSC48 - Checking Grain Sensor; Checking No. 1 and No. 2 Sensors; (Cushion Switch); Checking Shift Lever Switch

7
-36
Apr. 2007
DSC48
417W745A
(1) Switch side

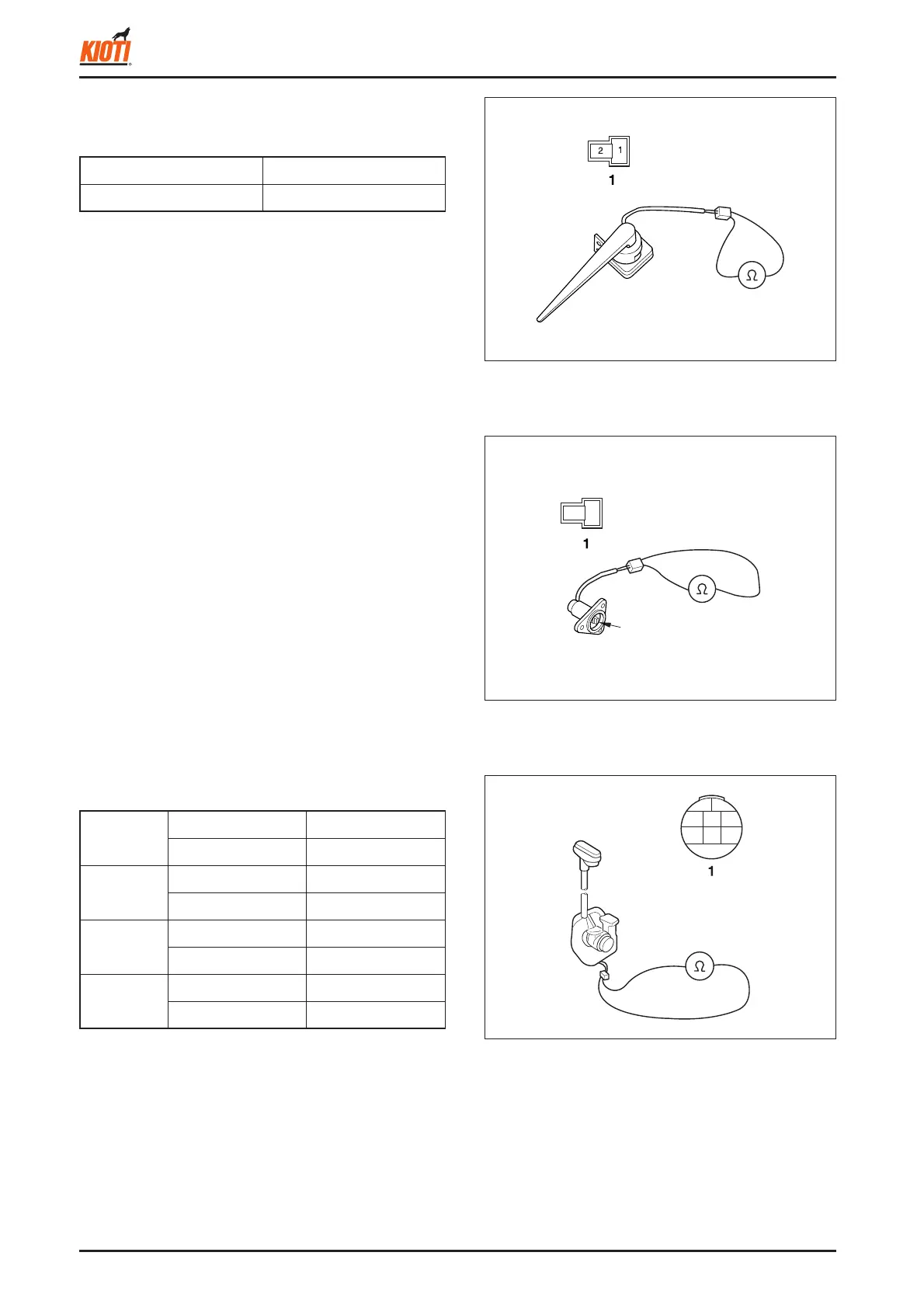

7.1.10 CHECKING GRAIN SENSOR
(grain sensor, straw sensor, neutral switch)
417W743A
(1) Sensor side
If the above operation occurs, it is normal.
• If the sensor is normal, check the connector and wiring.
7.1.11 CHECKING NO. 1 AND NO. 2
SENSORS (CUSHION SWITCH)
1. Slowly rotate the A section once.
2. If the pointer on the tester moves for over 4 times, the
sensor is normal.
• This test cannot be performed with a digital tester.
• If the sensor is normal, check the connector and wir-
ing.
417W744A
(1) Sensor side
7.1.12 CHECKING SHIFT LEVER SWITCH
If the above operation occurs, the switch is normal.
• If all the above operations correctly occur, check the
connector and wiring.
1
2
A
123
456
Operation Continuity
No operation No continuity
Between 5
and 3
Neutral Continuity
Other than neutral No continuity
Between 6
and 3
Reverse Continuity
Other than reverse No continuity
Between 4
and 3
Forward Continuity
Other than forward No continuity
Between 1
and 2
Neutral Continuity
Other than neutral No continuity
