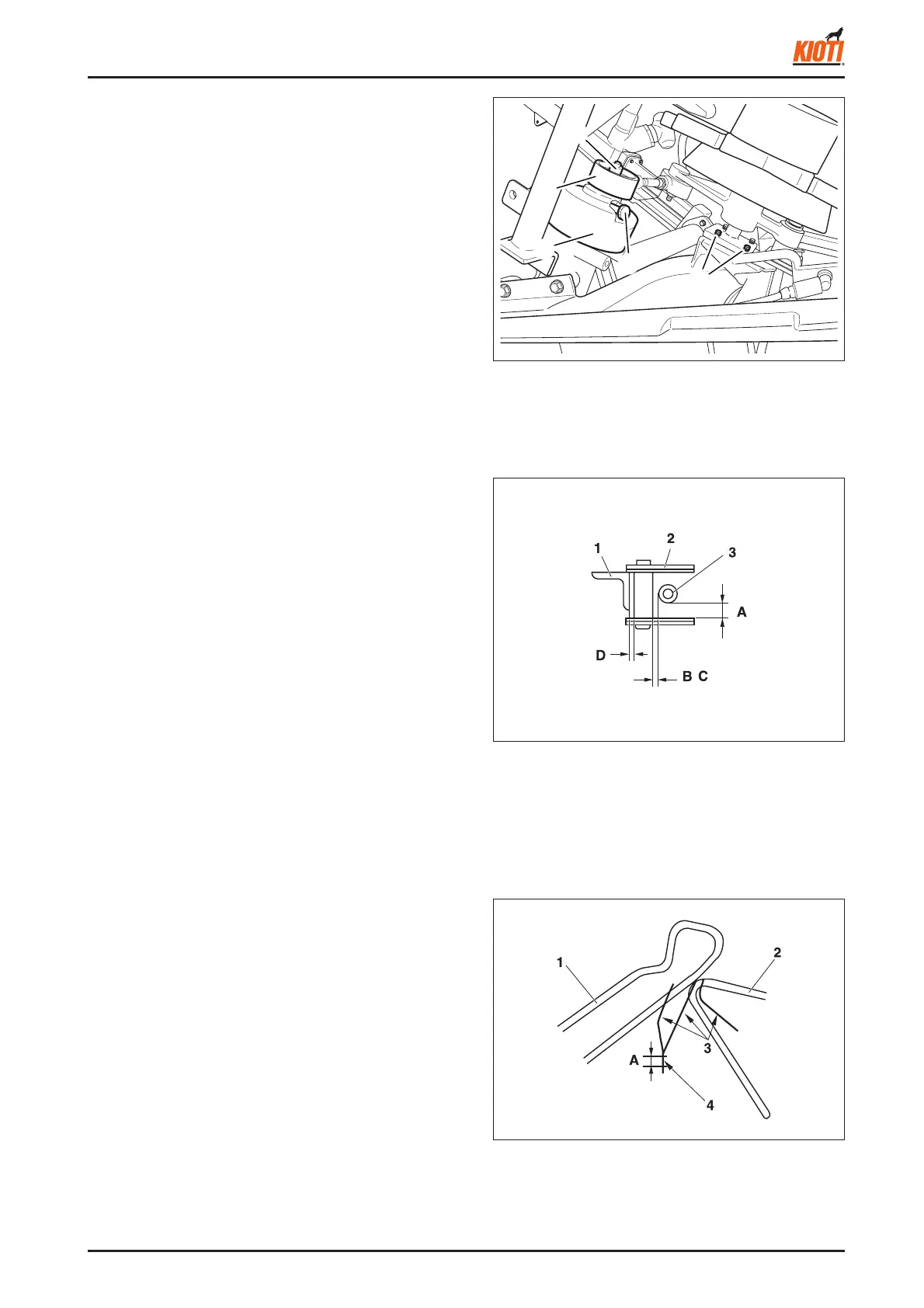

Daedong DSC48 - INSTALLATION OF STEM SIDE CONVEYOR PROP; LARGE-DIAMETER WASHER OF STEM SIDE SUPPORT SPRING

Apr. 2007
3
-19
DSC48
1
5
3
2
4
3. Unscrew two nuts (LOCTITE applied) on the bearing
holder.
4. Unscrew four mounting bolts on the packer shaft.
5. Pull out the bearing holder and packer shaft assembly.
6. Pull out the packer shaft bearings in order.
Use a puller when separating the packer shaft case
and the shaft.
<When assembling>
• Insert the crank roller to the cutting blade head.
(1) Bearing holder
(2) Stop bolt (LOCTITE
applied)
(3) Cutting blade crank
(4) Packer shaft mount-
ing bolts
(5) Nut (applied with
LOCTITE)
1.5.9 INSTALLATION OF STEM SIDE
CONVEYOR PROP
417W339A
1.5.10 LARGE-DIAMETER WASHER OF
STEM SIDE SUPPORT SPRING
417W340A
(1) Stem side chain (RH)
(2) Stem side chain (LH)
(3) Stem side support
spring
(4) Large-diameter
washer
(1) Stem side rail
(2) Stem side chain
(3) Stem side conveyor
prop
(A) 3 ~ 9 mm: parallel
(LH stem side)
(B) 3 ~ 9 mm
(LH stem side)
(C) 0 ~ 7 mm
(RH stem side)
(D) 0 ~ 1.9 mm
417W338A
