1.9.5 EVERY 100 HOURS
A. CHANGING ENGINE OIL: see page 1-17
B. ADJUSTING GRAIN SIDE CHAIN (RH)
If the adjustable hole is visible due to the defl ected chain,
move the stopper to let the hole and shaft contact slightly.
• Check and adjustment
Check the grain side tension's proper sliding movement
and the degree of the movement.

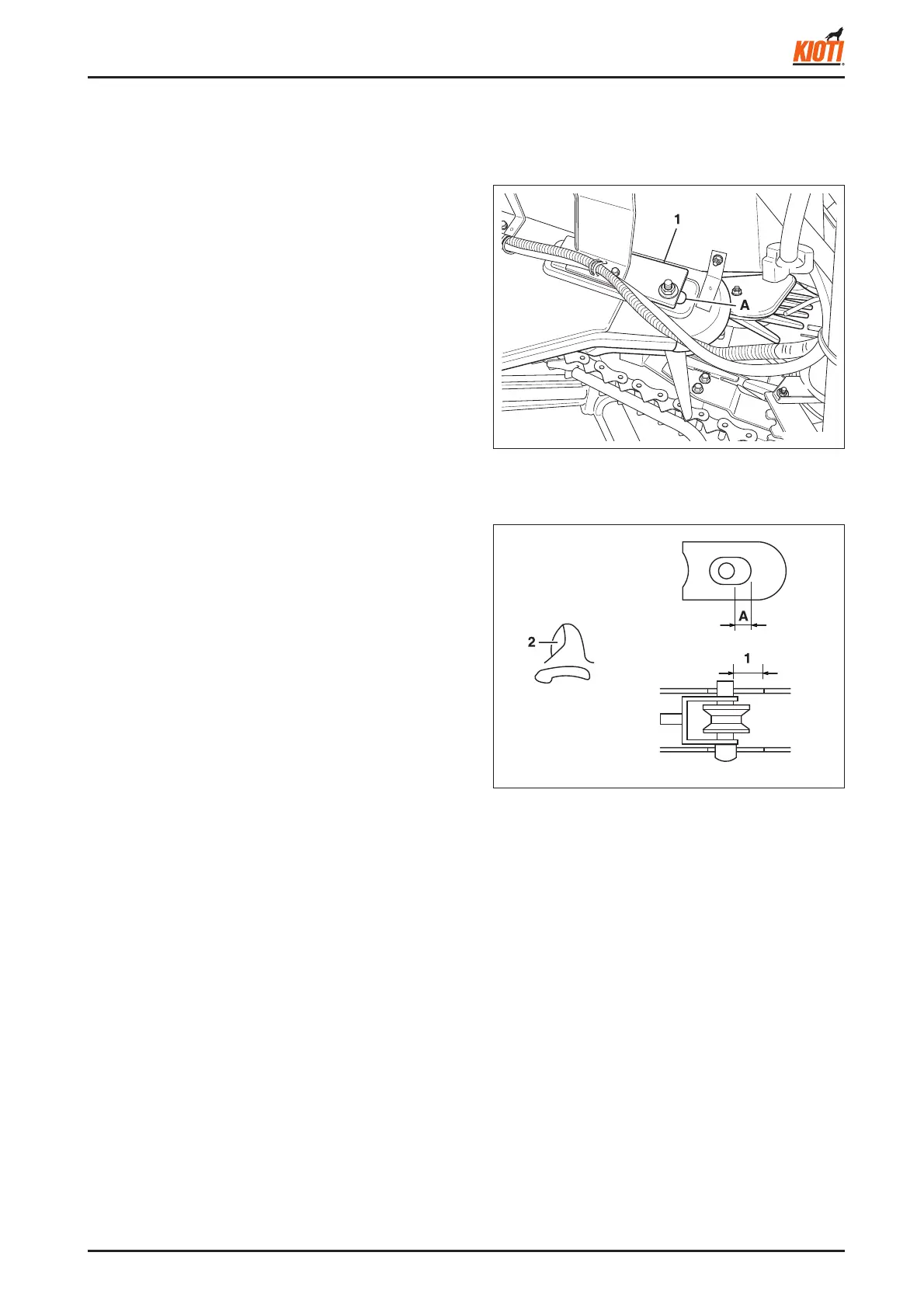

417W169A
(1) Stopper
(A) Adjustable hole should not be visible.
C. ADJUSTING STEM SIDE CHAIN (LH):
see page 1-22
D. ADJUSTING STEM SIDE FEEDING CHAIN:
see page 1-22
E. ADJUSTING FEEDING DEPTH CONTROL
CHAIN: see page 1-23
F. ADJUSTING FEEDING CHAIN: see page 1-23
G. ADJUSTING STRAW DISCHARGE CHAIN
(STRAW END SIDE): see page 1-24
H. ADJUSTING CRAWLER TENSION:
see page 1-21
417W170A
(1) Adjusted value (2) Wear
(A) If there is no enough space for the adjustable hole
for adjustment, remove the chain 2 link.
• Replacement
If it is severely damaged or worn or there is no enough
space for the adjustable hole
