1.9.11 EVERY 400 HOURS
A. REPLACING FUEL FILTER

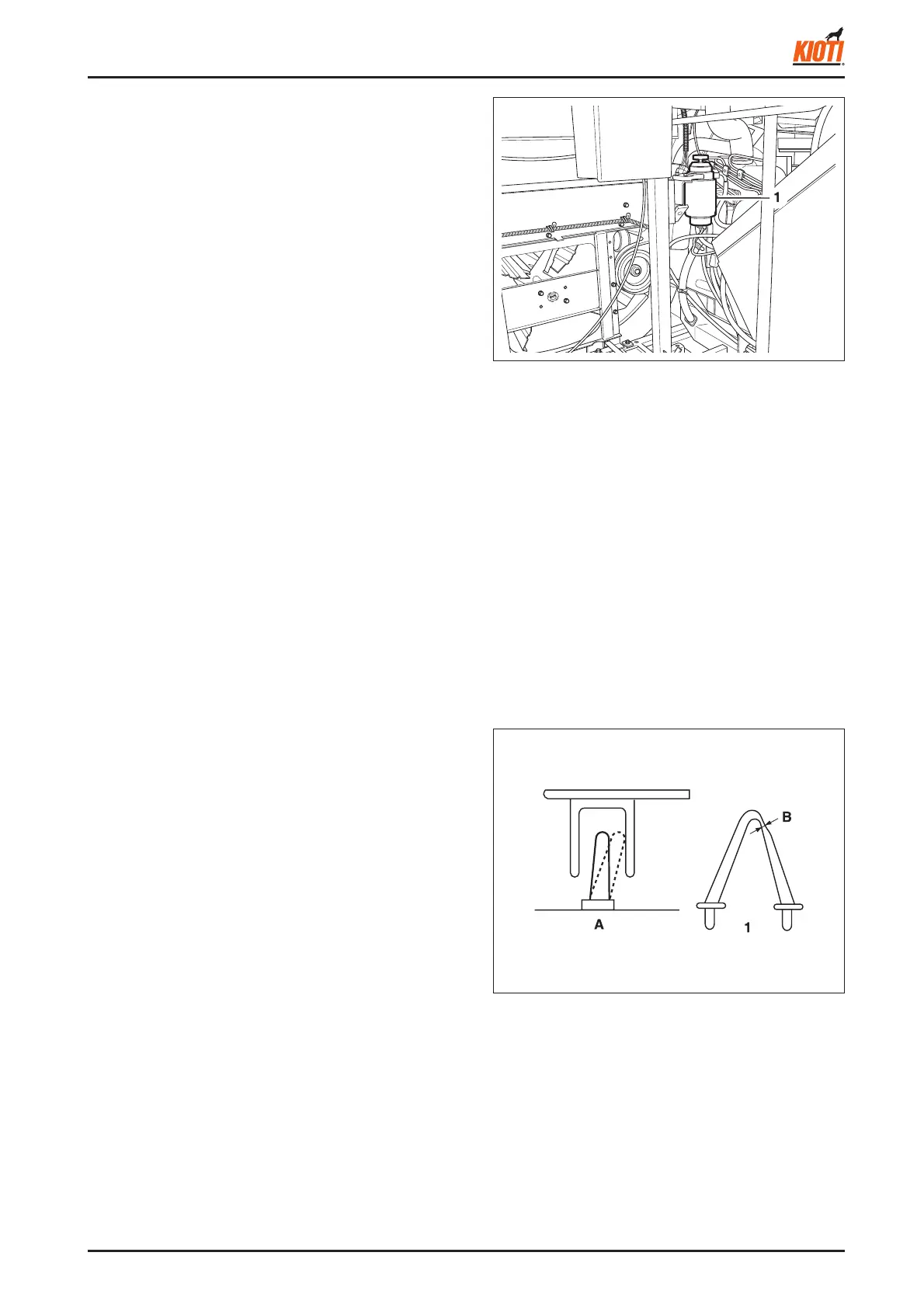

1. Remove the fuel fi lter with a hand or a tool.
2. Apply thin fi lm of oil to the packing of the new fuel fi lter
and hand-tighten it fi rmly.
417W190A
(1) Fuel fi lter
417W191A
(1) Wear
(A) Collapse
(B) Replace if it goes down 2.6 mm or less
B. REPLACING ELEVATOR TENSION SPROCKET:
see page 3-11
C. REPLACING GRAIN SIDE CHAIN (LH):
see page 3-14
D. REPLACING STRAW SIDE CHAIN (LH):
see page 3-14
E. REPLACING STEM SIDE FEEDING CHAIN:
see page 3-16
F. REPLACING FEEDING DEPTH CONTROL
CHAIN: see page 3-17
G. CHECKING THRESHING TEETH
• Check
Check if they are worn, improperly installed or collapsed.
• Replacement
If their diameter is 2.6 mm or less
