Daedong DSC48 - REPLACEMENT OF BASE CUTTER DISC

Apr. 2007
4
-11
DSC48
1.4.3 REPLACEMENT OF BASE CUTTER
DISC
1. Open the threshing cylinder.
2. Lock the open stopper.
3. Open the threshing cylinder cover and unscrew the
fl ange nut.
• No. 1 threshing knives (2 EA), supplementary teeth
(plate, 4 EA)
• Threshing knives (plate, 2 EA), common knives (88 EA)
• No. 1 supplementary teeth (4 EA), feeding teeth
(plate, 64 EA)
• No. 2 supplementary teeth (4 EA), threshing cylinder
blades (4 EA)

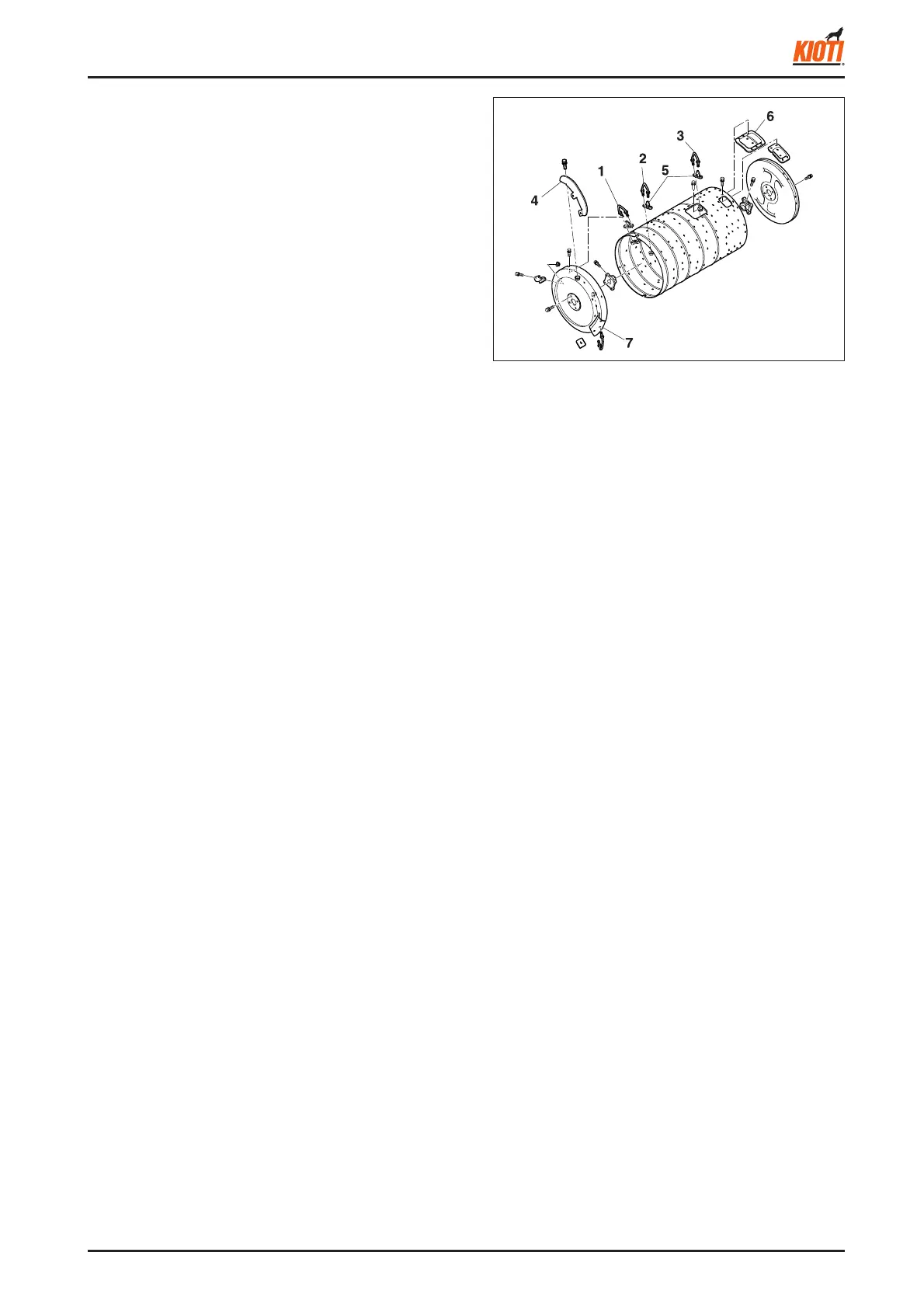

417W416A
(1) No. 1 supplementary tooth
(2) No. 2 supplementary tooth
(3) Common knife
(4) Threshing knife (plate)
(5) Base blade (plate)
(6) Threshing cylinder cover
(7) No. 1 threshing knife
