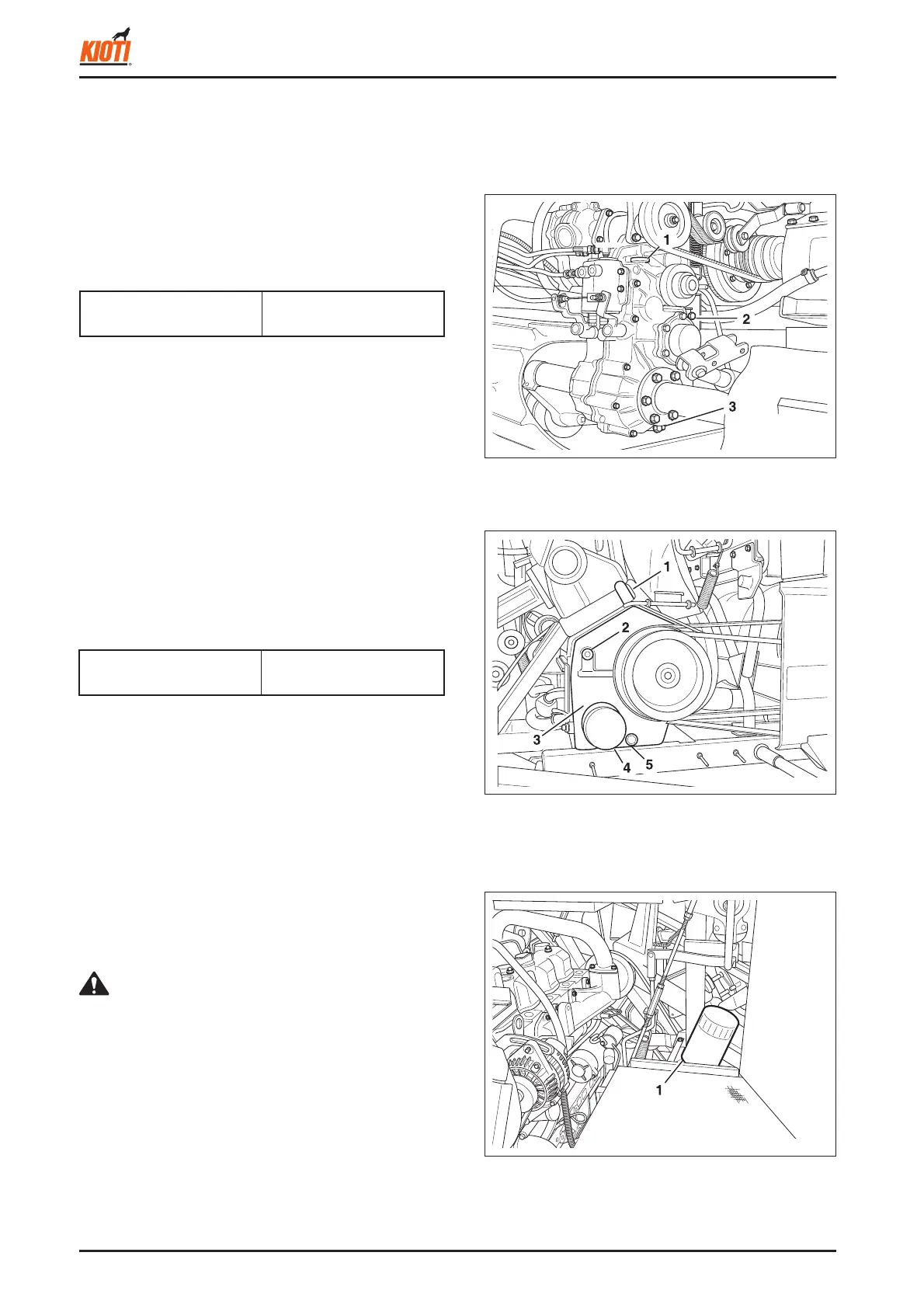

(1) HST oil fi lter
1.2 MAINTENANCE
1.2.1 TRANSMISSION FLUID,
HYDRAULIC OIL AND FILTERS
A. TRANSMISSION FLUID
1. Remove the level check bolt and check whether or not
the oil comes out.
• Transmission fl uid type
417W502A
(1) Oil Inlet (3) Drain plug
(2) Level check bolt
B. HST OIL FILTER, HYDRAULIC OIL FILTER
AND HYDRAULIC OIL
1. Remove the level check bolt and check whether the oil
comes out.
• Transmission fl uid type
417W503A
(1) Oil Inlet (4) Hydraulic Oil Filter
(2) Level check bolt (5) Drain Plug
(3) Oil tank
<Replacement of HST oil fi lter>
1. Remove the drain plug and drain the hydraulic oil.
2. Remove the oil fi lter with a fi lter wrench.
3. Add KIOTI genuine oil TF65 to the specifi ed level.
• Apply oil to the new oil fi lter's O-ring and hand-tighten
the oil filter. Make sure that the O-ring is installed
correctly.
CAUTION
Specifi ed amount of
KIOTI genuine oil TF65
7.1 ℓ
Specifi ed amount of
KIOTI genuine oil TF65
22 ℓ
