Daedong DSC48 - INSTALLATION OF FEEDING GUIDE; INSTALLATION OF FEEDING CHAIN; INSTALLATION OF FEEDING DEPTH CONTROL CHAIN

Apr. 2007
3
-21
DSC48

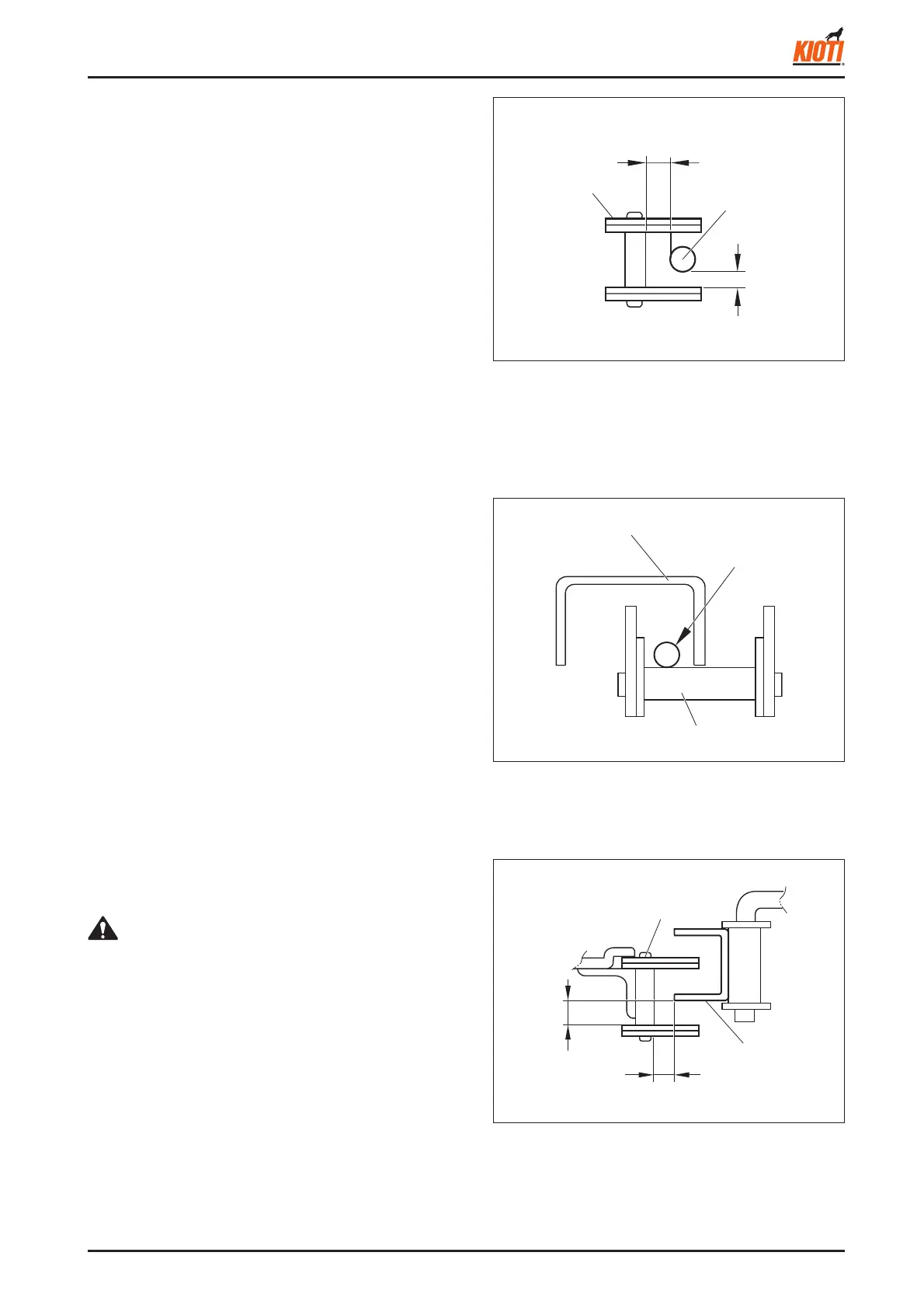

1.5.14 INSTALLATION OF FEEDING CHAIN
417W345A
(1) Rail
(2) Feeding chain
(A) Set the feeding chain guide in the rail.
1.5.15 INSTALLATION OF FEEDING
DEPTH CONTROL CHAIN
417W346A
(1) Feeding depth control chain
(A) Defl ection of feeding depth control chain
(B) 7 ~ 13 mm: parallel
(C) 2.6 ~ 7.6 mm
1.5.13 INSTALLATION OF FEEDING GUIDE
417W344A
(1) Feeding chain
(2) Feeding guide
(A) Minimum Clearance: 4 ~ 7 mm - Adjust the clear-
ance with the shim of the feeding guide support.
(B) 6 ~ 9 mm: parallel
• When installing the chain, set the slit pin's open
endings toward the chain's rotating direction.
CAUTION
1
A
2
B
1
A
2
1
A
B
C
