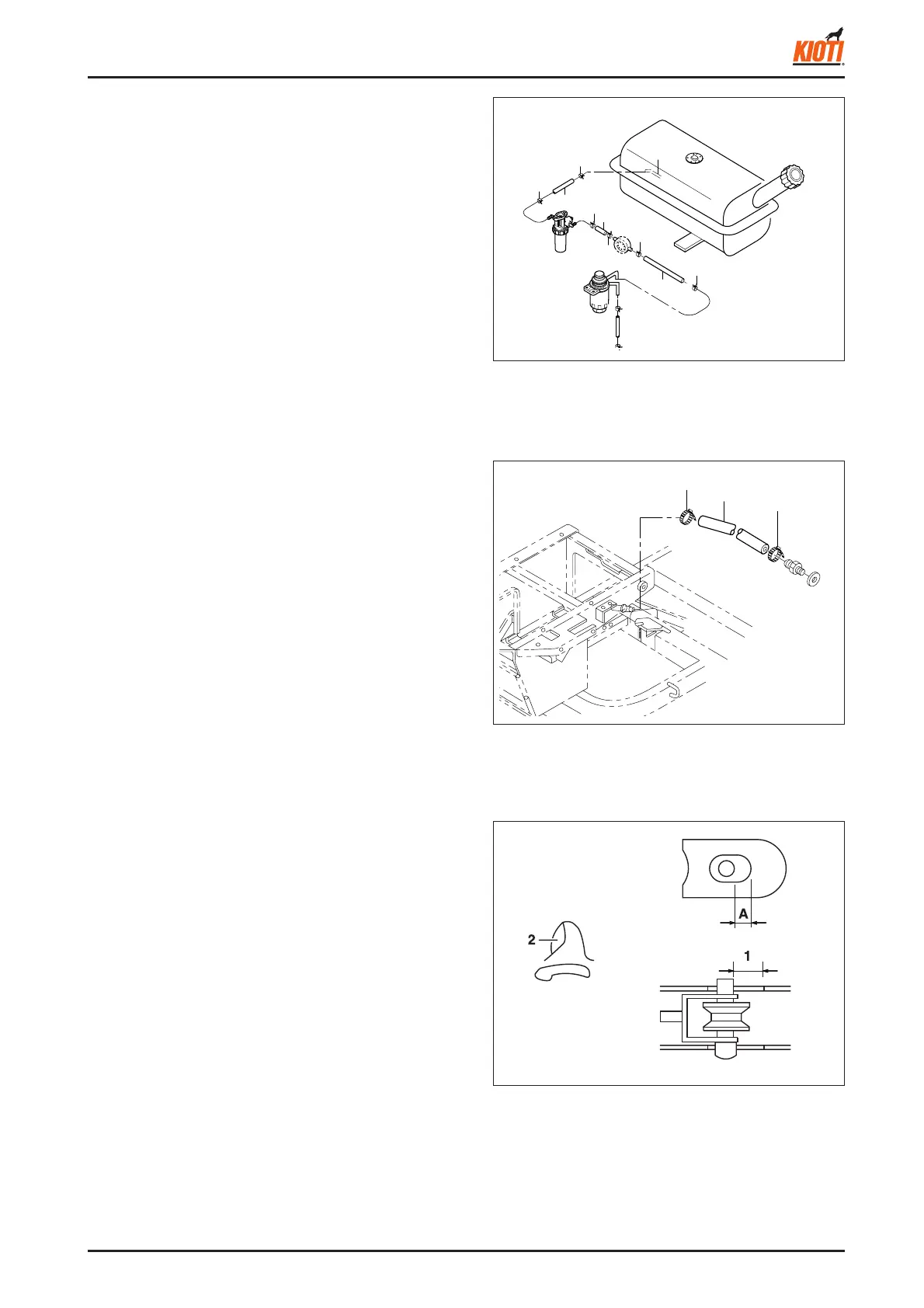

1.9.6 EVERY 150 HOURS
A. CHECKING FUEL PIPE
• Check and adjustment
Check any fuel leakage, due to any damage or crack
around the clip.
• Replacement
If fuel defi nitely or probably leaks
B. CHECKING ENGINE OIL DRAIN HOSE
• Check and adjustment
Check if oil leaks, due to any damage or crack around the
hose band.
• Replacement
If oil defi nitely or probably leaks
417W175A
(1) Band
(2) Engine oil drain hose
1.9.7 EVERY 200 HOURS
A. CHECKING GRAIN SIDE CHAIN (LH)
• Check and adjustment
Check if the grain side tension slides properly and there is
enough space for the adjustable hole.
• Replacement
If it is severely damaged or worn or no room for movement
417W176A
(1) Adjusting gap (2) Wear
(A) If there is no space for adjustment in the long hole,
disconnect the chain 2 link.
(1) Clip (4) Fuel pipe 3
(2) Fuel pipe 4 (5) Fuel pipe 2
(3) Engine pipe 1 (6) Band
1
1
1
1
1
2
3
4
5
6
417W174A
