1
-34
Apr. 2007
DSC48
417W187A

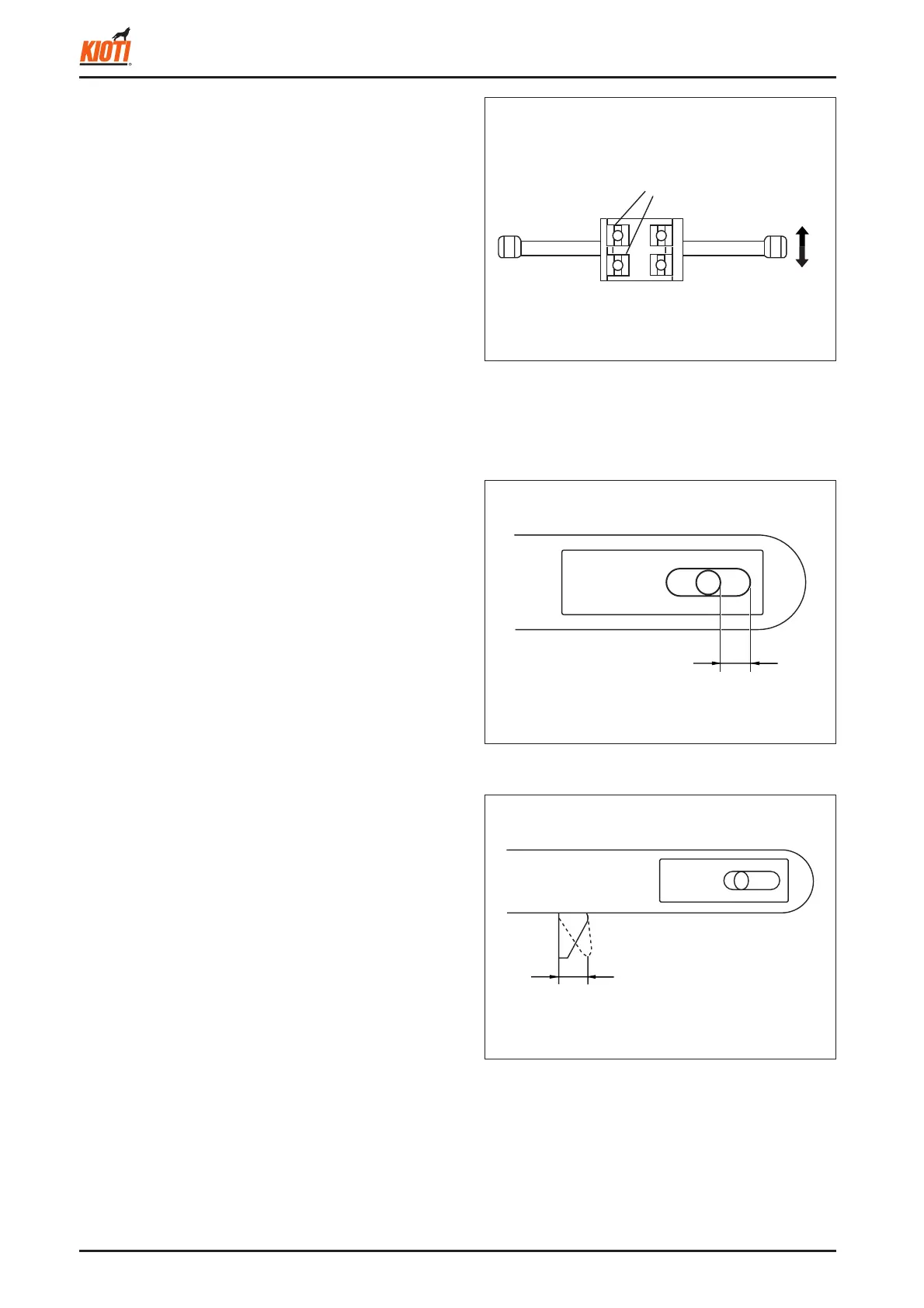

1.9.10 EVERY 350 HOURS
A. REPLACING STRAW DISCHARGE CHAIN
(GRAIN SIDE)
• Check
Check if the straw discharge tension slides properly and
there is enough space for the adjustable hole.
• Replacement
If it is severely damaged or worn or there is no enough
space for the adjustable hole
417W188A
(1) Adjustable space
417W189A
(A) Replace if it is tilted back 19 mm or more.
B. CHECKING CONVEYOR RAKE (STRAW DIS-
CHARGE CHAIN (GRAIN SIDE))
• Check
Check if it is worn or deformed.
• Replacement
If it is excessively damaged or tilted back 19 mm or more
C. REPLACING STRAW DISCHARGE CHAIN
(STRAW END SIDE): see page 1-24
O. REPLACING CUTTING BLADE CRANK ARM
BEARING
• Check
Check the crank arm play.
• Replacement
If there is abnormal noise due to stuck or unevenly applied
oil or the bearing play is excessive
(1) Bearing wear
(A) Play
1
A
1
A
