L. REPLACING VERTICAL AUGER BLADE
• Check
Check if it is worn or not properly installed.
• Replacement
If the blade is excessively worn or does not properly trans-
fer crops
417W185A
(1) Vertical auger blade
417W186A
(1) Crack (2) Wear
M. REPLACING OIL DRAIN HOSE: see page 1-29
N. REPLACING ELEVATOR CHAIN CUSHION
RUBBER
• Check
Check if it is cracked or worn.
• Replacement
If it is severely damaged or worn
K. CHECKING FRONT COVER
• Check
Check if it is worn or damaged.
• Replacement
If its bottom is worn 4 mm or more

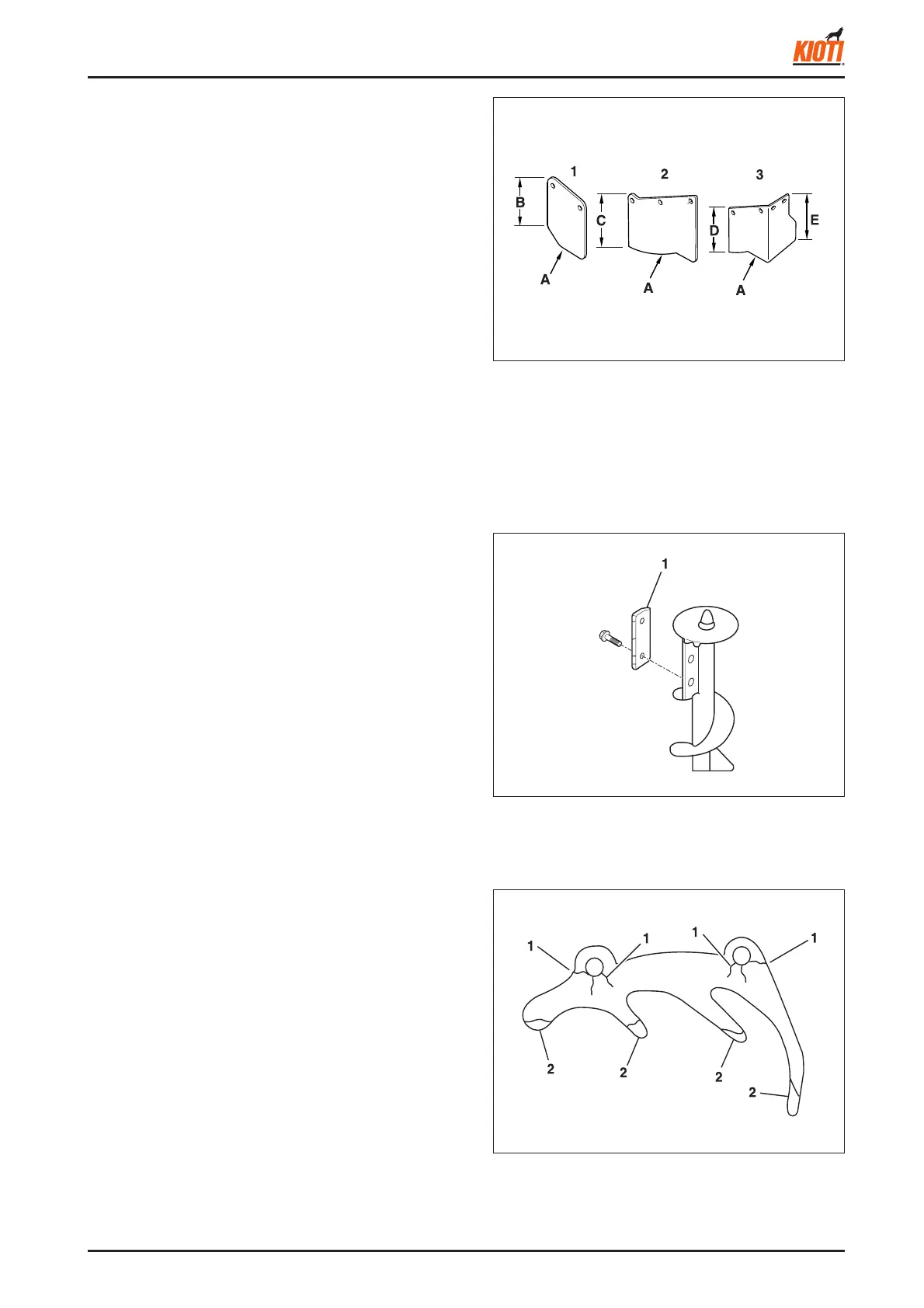

417W184A
(1) Front seal 1 from front cover
(2) Front seal 2 from front cover
(3) Front seal 3 from front cover
(A) Wear or damage (D) 250 mm
(B) 211 mm (E) 350 mm
(C) 211 mm
