7.1.21 CHECKING BUZZERS (FRONT
AND REAR)
• Check whether the buzzer operates by connecting the
terminals to the battery. If the buzzer sounds, it is nor-
mal.
• Front buzzer: If it does not sound, adjust the small
screw on the back.

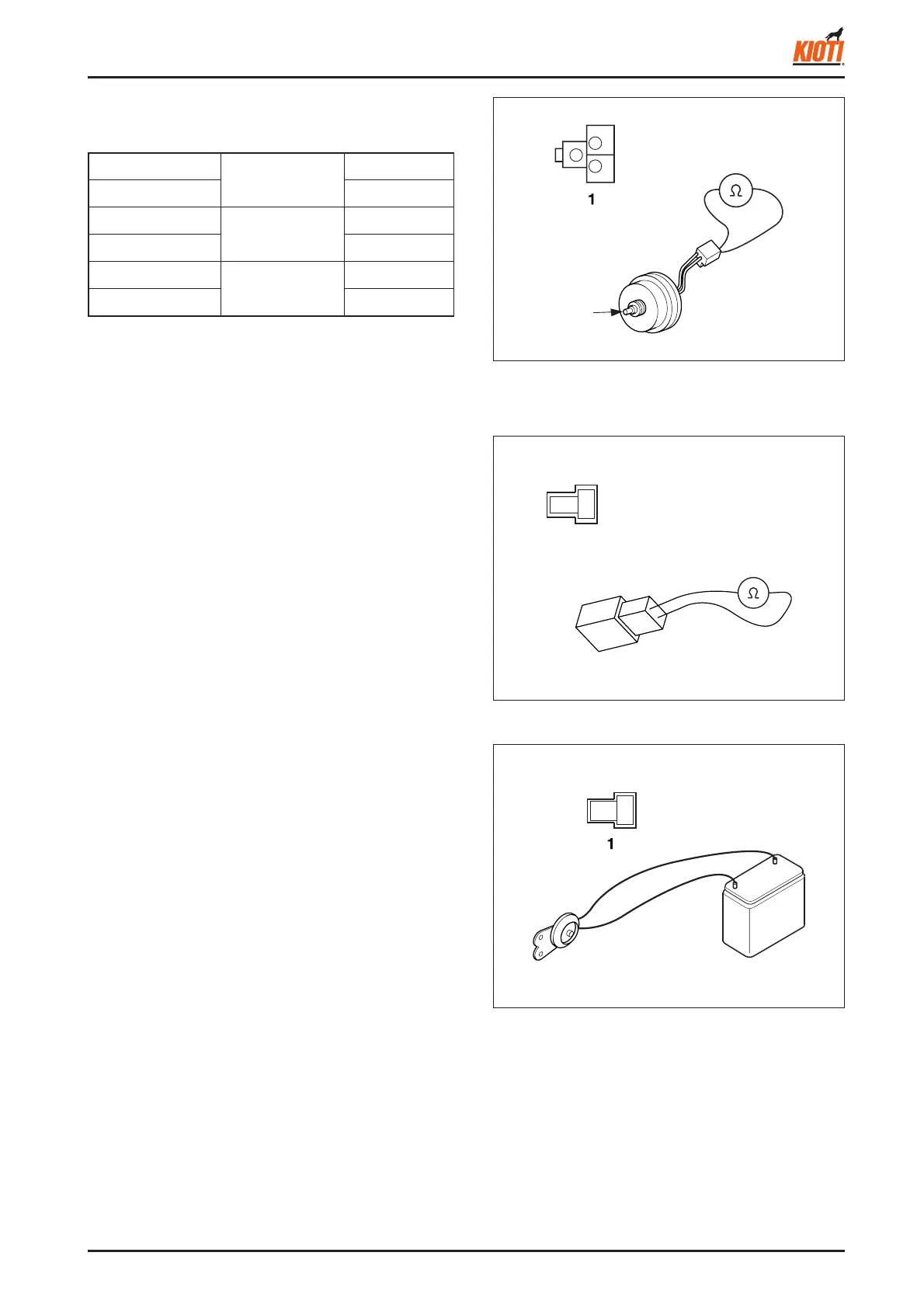

417W755A
(1) Wiring side
7.1.19 CHECKING FEEDING DEPTH
CONTROL STOP SWITCH
417W753A
(1) Switch side
7.1.20 CHECKING SLOW BLOW FUSE
• It is normal, if there is continuity between the terminals.
• Fuse blink: If heat generates after starting the engine,
replace it.
417W754A
If the above operation occurs, it is normal.
Ú
If the switch is normal, check the connector and wiring.
1
3
2
2
1
2
1
Between 2 and 1
Right turn end
No continuity
Between 3 and 1 Continuity
Between 2 and 1
Left turn end
Continuity
Between 3 and 1 No continuity
Between 2 and 1 Middle Continuity
Between 3 and 1 Continuity
