Apr. 2007
DSC48

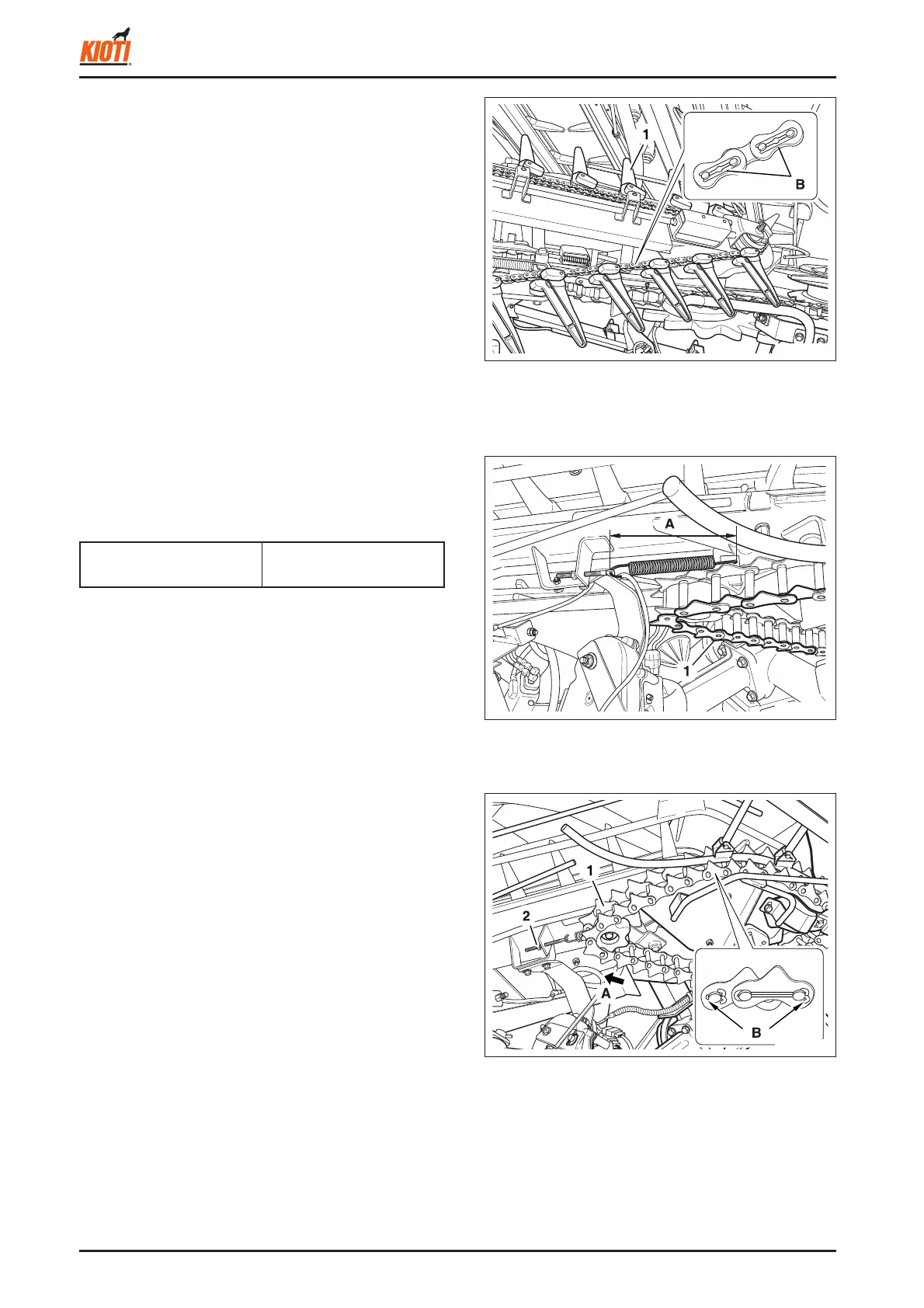

4. When installing the chain, ensure its clip's opening is
opposite the chain's rotating direction.
5. Apply grease on the tension sliding surface.
(1) Grain side chain (RH)
(B) Direction of clip
1.5.6 ADJUSTMENT AND REPLACEMENT
OF STEM SIDE FEEDING CHAIN
A. ADJUSTMENT
(1) Stem side feeding chain
(A) 162 ~ 168 mm
417W332A
(1) Stem side feeding chain
(2) Adjustment nut
(A) Rotating direction
(B) Direction of split pin
B. REPLACEMENT
1. Loosen the tension and take out the split pin to remove
the chain.
2. When installing the chain, set the split pin's open end-
ings toward the chain's rotating direction, as shown in
the fi gure.
417W331A
417W333A
Standard spring length
(installed)
162 ~ 168 mm
