Daedong DSC48 - CHECK AND ADJUSTMENT OF BELT; FRONT SECTION OF THRESHING CYLINDER; REAR SECTION OF THRESHING CYLINDER

4
-6
Apr. 2007
DSC48

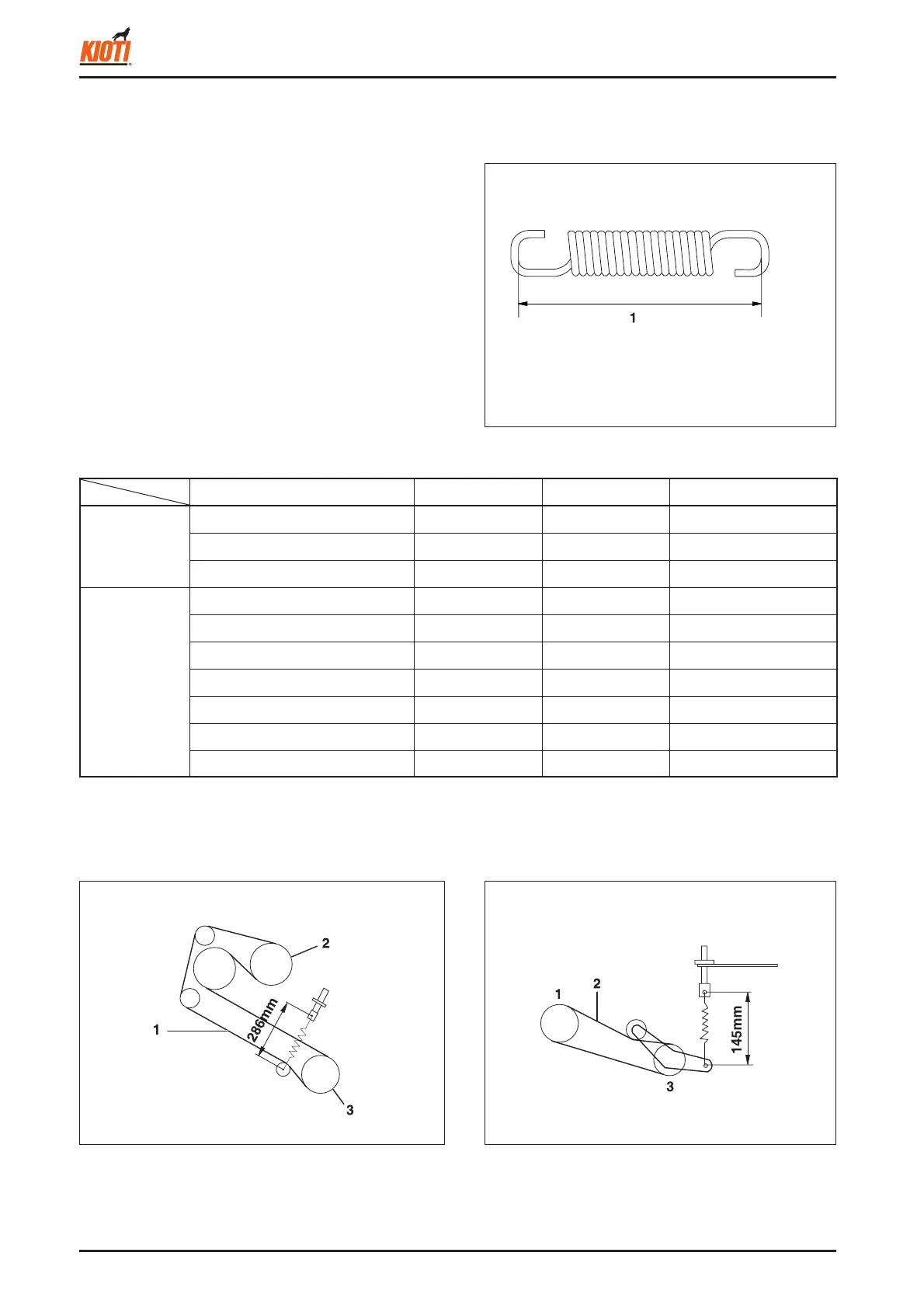

1.2 CHECK AND ADJUSTMENT OF BELT
(Check every 100 hours, replace every 300 hours)
(1) Value (length between hook inner ends)
(1) Straw discharging
(2) Straw discharging drive belt
(3) Threshing cylinder
417W407A
• The length of the springs for the following belts should
be kept in the specifi ed ranges. Adjust their length us-
ing the adjusting bolt and wire adjusting bolt if neces-
sary.
• Replace the belt only with a new genuine belt.
1.2.1 FRONT SECTION OF THRESHING
CYLINDER
1.2.2 REAR SECTION OF THRESHING
CYLINDER
(1) Threshing drive belt
(2) Threshing cylinder
(3) Counter
417W406A
417W405A
Belt Belt specifi cation Quantity Specifi ed value (mm)
Area around
engine
Transmission drive belt REC 48.5 2 193 ± 1
Threshing drive belt REC 38.5 2 143 ± 2
Reaping drive belt B53 1 102 ± 1
Area around
threshing unit
Threshing cylinder drive belt C145 2 288 ± 2
Blower drive belt B66 1 Adjustment not required
No. 1 drive belt B101 1 162 ± 2
No. 2 drive belt B108 1 167 ± 2
Rocker drive belt B42 1 396 ± 2
Straw discharging chain drive belt B38 1 147 ± 2
Cutter drive belt B55 1 165 ± 2
