Daedong DSC48 - SECTIONAL VIEW

Apr. 2007
5
-3
DSC48
12
10
11
12
9
7
6
5
4
2
3
1
8

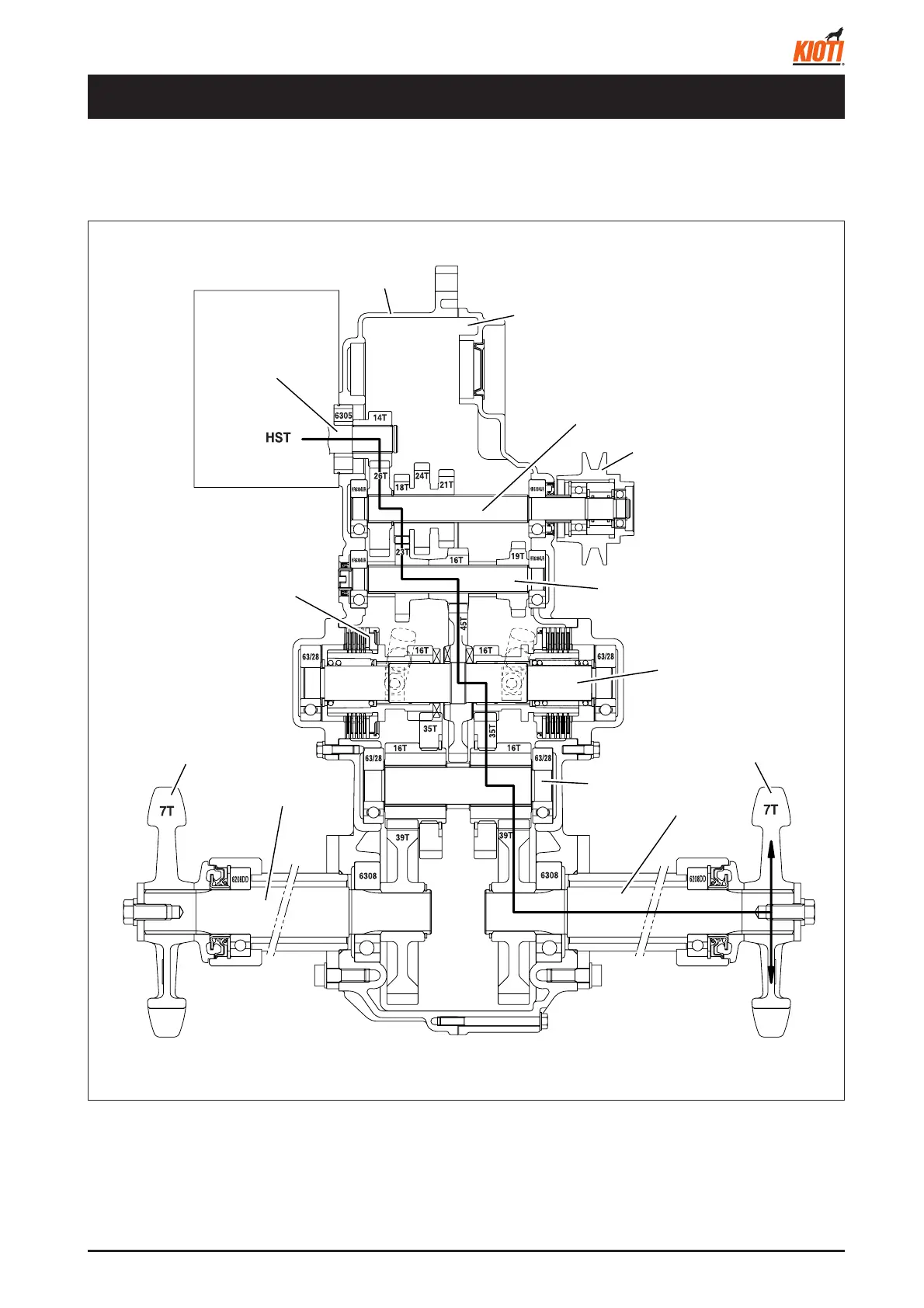

1.1 SECTIONAL VIEW
1.1.1 BRAKE TURN (RIGHT TURN)
417W501A
(1) HST output shaft (4) No. 1 shaft
(2) Transmission case (LH) (5) 101 pulley (reaping)
(3) Transmission case (RH) (6) No. 2 shaft
(7) Side clutch shaft (10) Axle shaft (RH)
(8) Pressure plate (11) Axle shaft (LH)
(9) Intermediate shaft (12) Drive sprocket
1. DRIVING SYSTEM
