Daedong DSC48 - COMPONENTS RELATED TO THRESHING CYLINDER

Apr. 2007
4
-9
DSC48
417W179A
1.4 COMPONENTS RELATED TO THRESHING CYLINDER
(Replace every 200 hours)
1.4.1 REPLACEMENT OF STRAW
CHOPPER BLADE
• Never touch the blade.
• When removing the chopper blade, remove it holding
both ends.
CAUTION

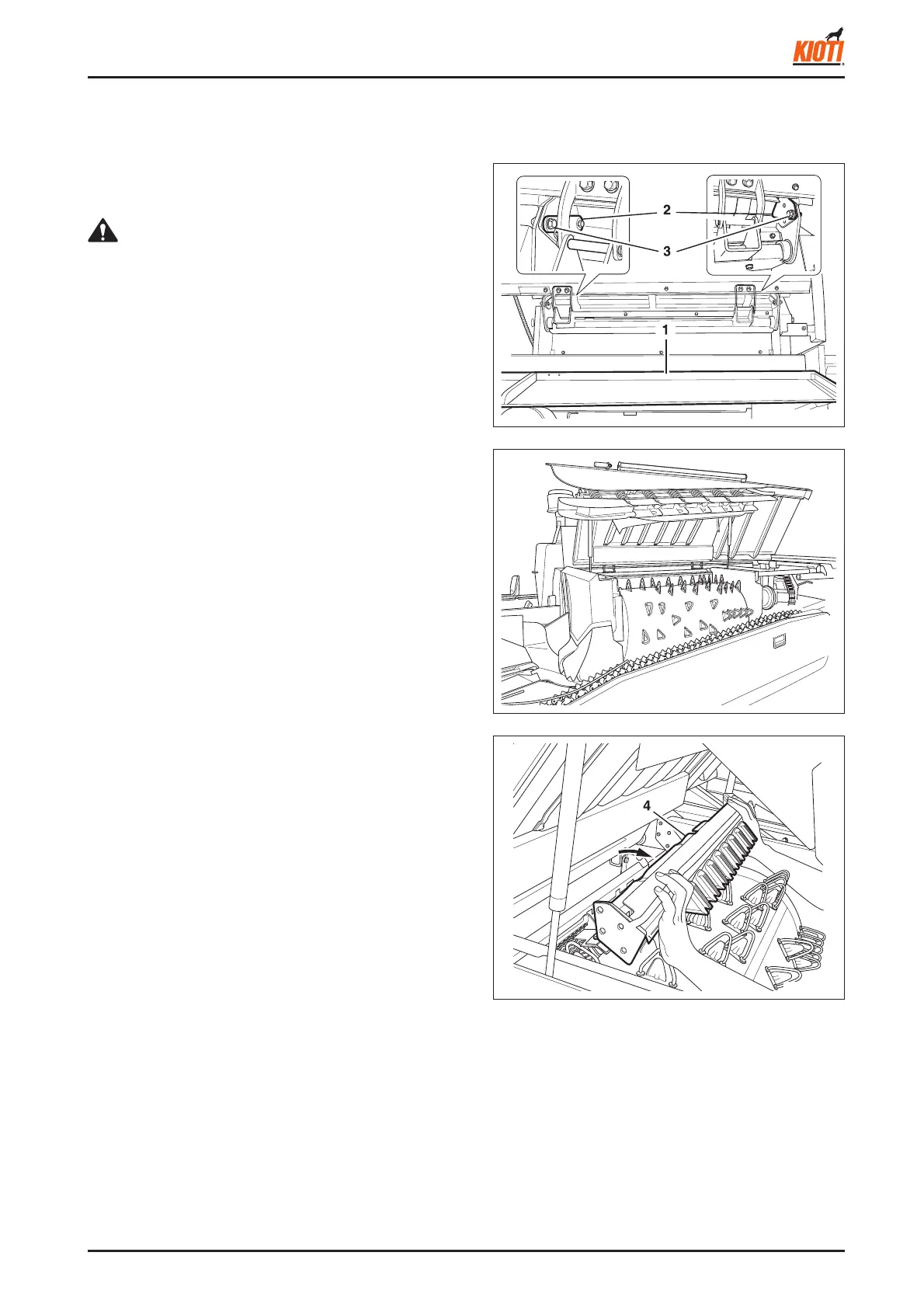

1. Open the threshing chamber cover.
2. Disengage the blade lock pin and remove the bolt.
417W177A
417W178A
(1) Threshing chamber cover
(2) Blade support mounting plate
(3) Bolt
(4) Blade support
3. Open the threshing cylinder.
4. Remove the blade support.
5. Unscrew the straw chopper blade bolts and nuts to de-
tach the straw chopper blade.
<When assembling>
• Install the chopper blade in the correct direction.
