Daedong DSC48 - CHECK FOR NORMAL OPERATION

Apr. 2007
6
-11
DSC48
2
3
1
4
A
D
E
B
417W613A

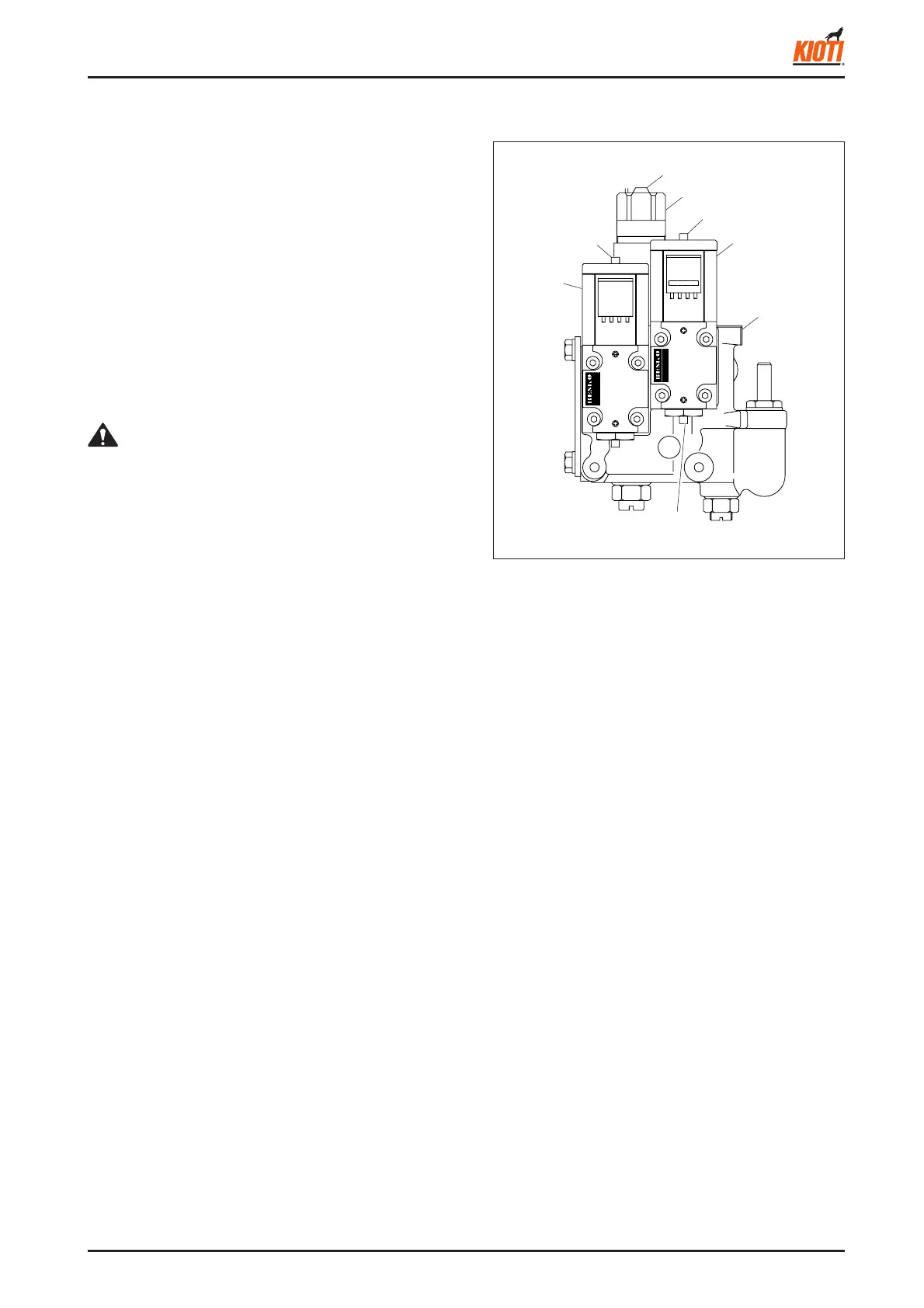

1.5.1 CHECKING SOLENOID VALVE
WITH THE MANUAL PUSH BUTTON
1. Put the range shift lever to the neutral position and start
the engine.
2. Check whether each solenoid valve operates correctly
by pressing the following manual push buttons.
• Steering clutch cylinder
RH operation ......................... Pressing A
LH operation ......................... Pressing B
• Reaping unit
Lifting .................................... Pressing E
Lowering (high speed) .......... Pressing D
(1) Valve
(2) Reaping unit lowering solenoid valve
(3) Steering control solenoid valve
(4) Reaping unit lifting solenoid
(A) Steering clutch cylinder (RH) operation button
(B) Steering clutch cylinder (LH) operation button
(C) Reaping unit lowering button
(D) Reaping unit lifting button
1.5 CHECK FOR NORMAL OPERATION
• Do not disassemble the hydraulic system unless
necessary.
CAUTION
