Daedong DSC48 - OTHER BOLTS AND NUTS, LOCTITE AND GREASE APPLICATION

Apr. 2007
3
-23
DSC48

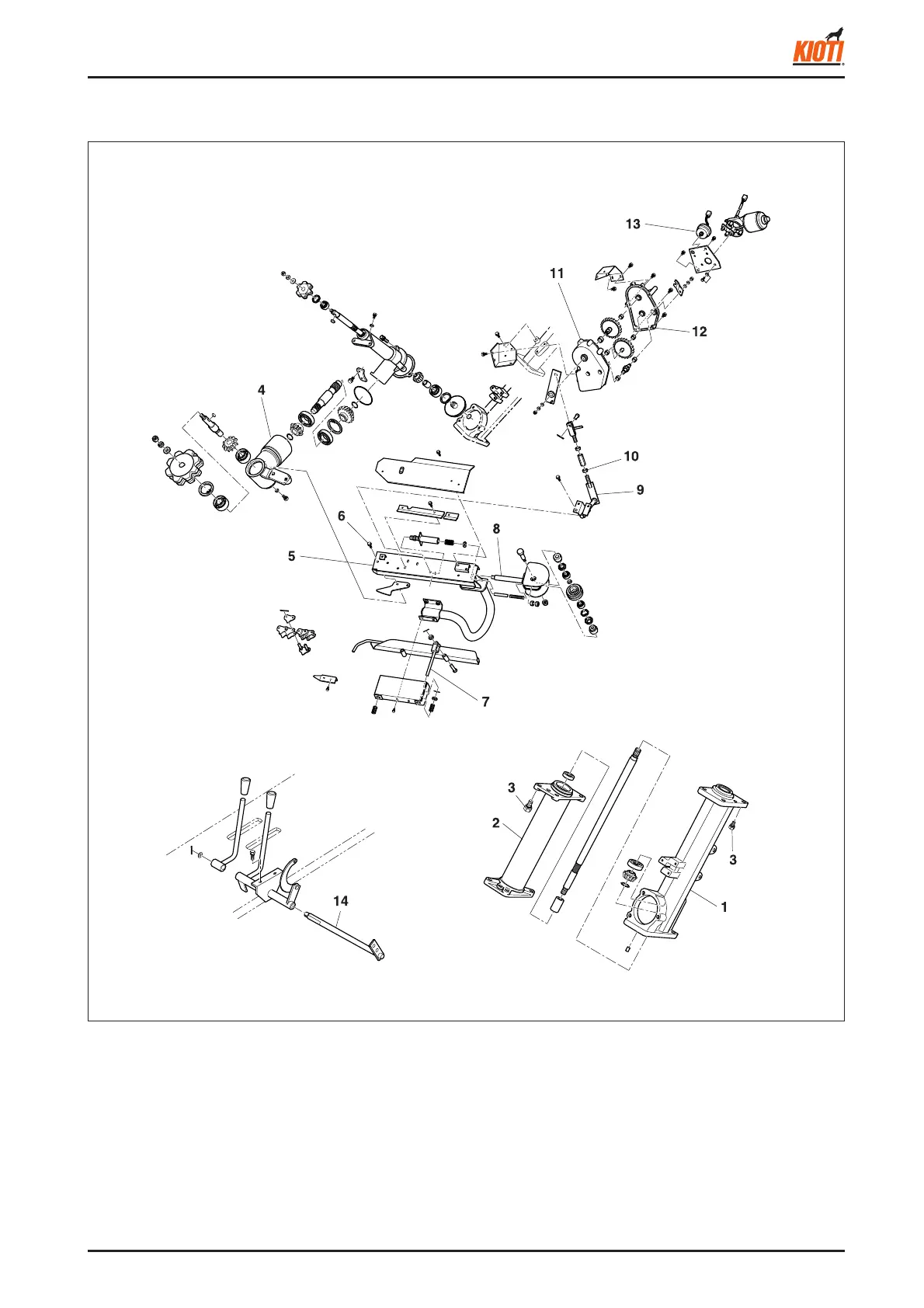

(9) Feeding depth control rotating shaft support
(10) Nut (LOCTITE applied)
(11) Feeding depth control case 1 (gear and bushing,
grease applied)
(12) Feeding depth control case 2 (Three Bond 1215 ap-
plied on installation surface)
(13) Feeding depth control stop switch
(14) Reaping clutch lever point shaft (grease applied)
417W351A
(1) Reaping unit shaft case 1
(2) Reaping unit shaft case 2
(3) Bolt (LOCTITE applied)
(4) Feeding depth control case (grease applied)
(5) Feeding depth control rail
(6) Bolt
(7) Feeding depth control rail shaft (grease applied)
(8) Feeding depth control tension arm (grease applied)
1.6 OTHER BOLTS AND NUTS, LOCTITE AND GREASE APPLICATION
