Daedong DSC48 - Sectional View of HST

Apr. 2007
6
-17
DSC48

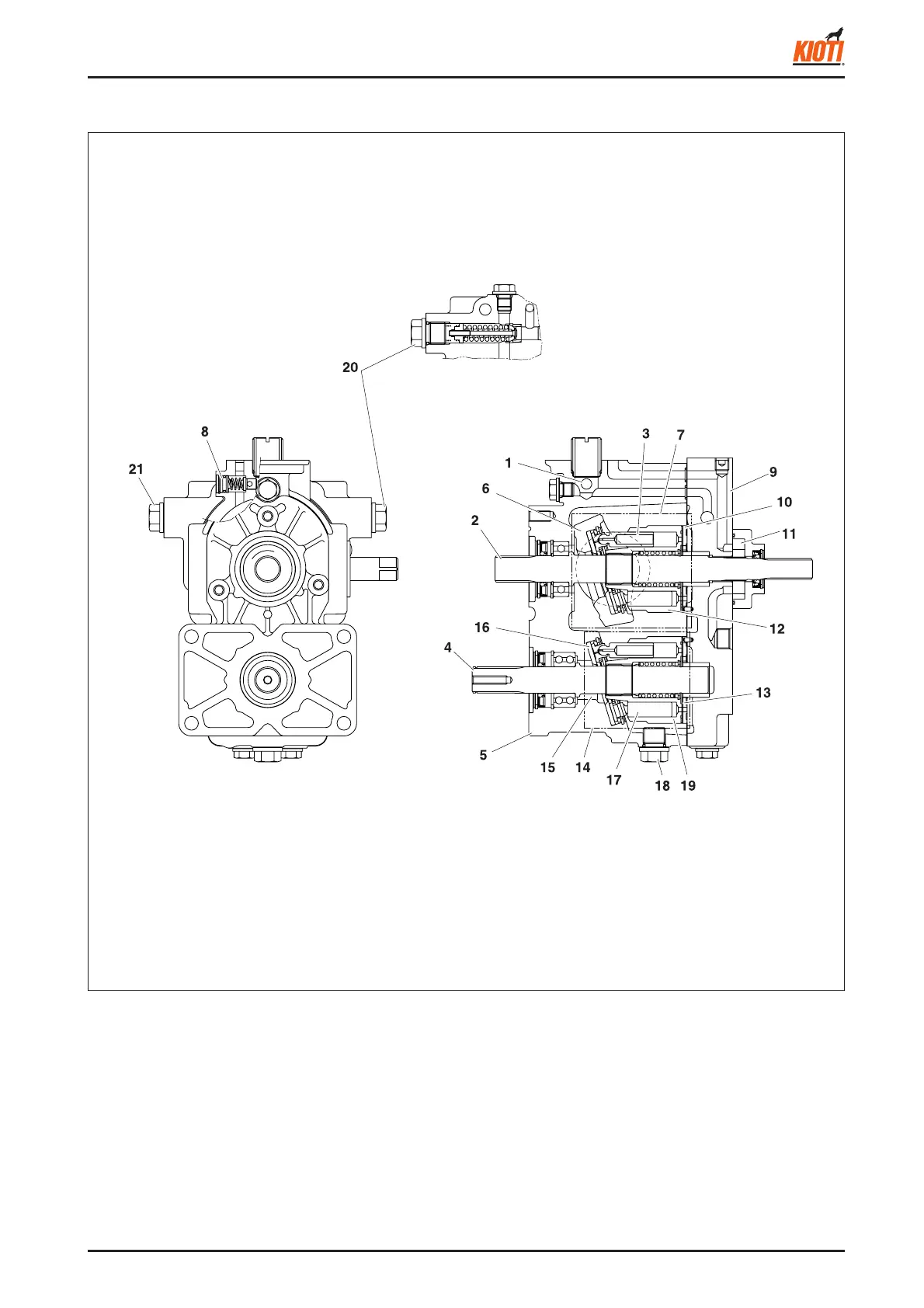

2.1.1 SECTIONAL VIEW OF HST
417W623A
(1) Oil outlet
(2) Pump shaft
(3) Piston
(4) Motor shaft
(5) Case
(6) Variable swash plate
(7) Variable capacity pump
(8) Charge relief valve
(9) Port block
(10) Valve plate P
(11) Charge pump
(12) Cylinder block P
(13) Valve plate M
(14) Fixed capacity motor
(15) Fixed swash plate
(16) Thrust plate
(17) Piston
(18) Drain Plug
(19) Cylinder block M
(20) Check & high pressure relief valve
(for reverse driving)
(21) Check & high pressure relief valve
(for forward driving)
