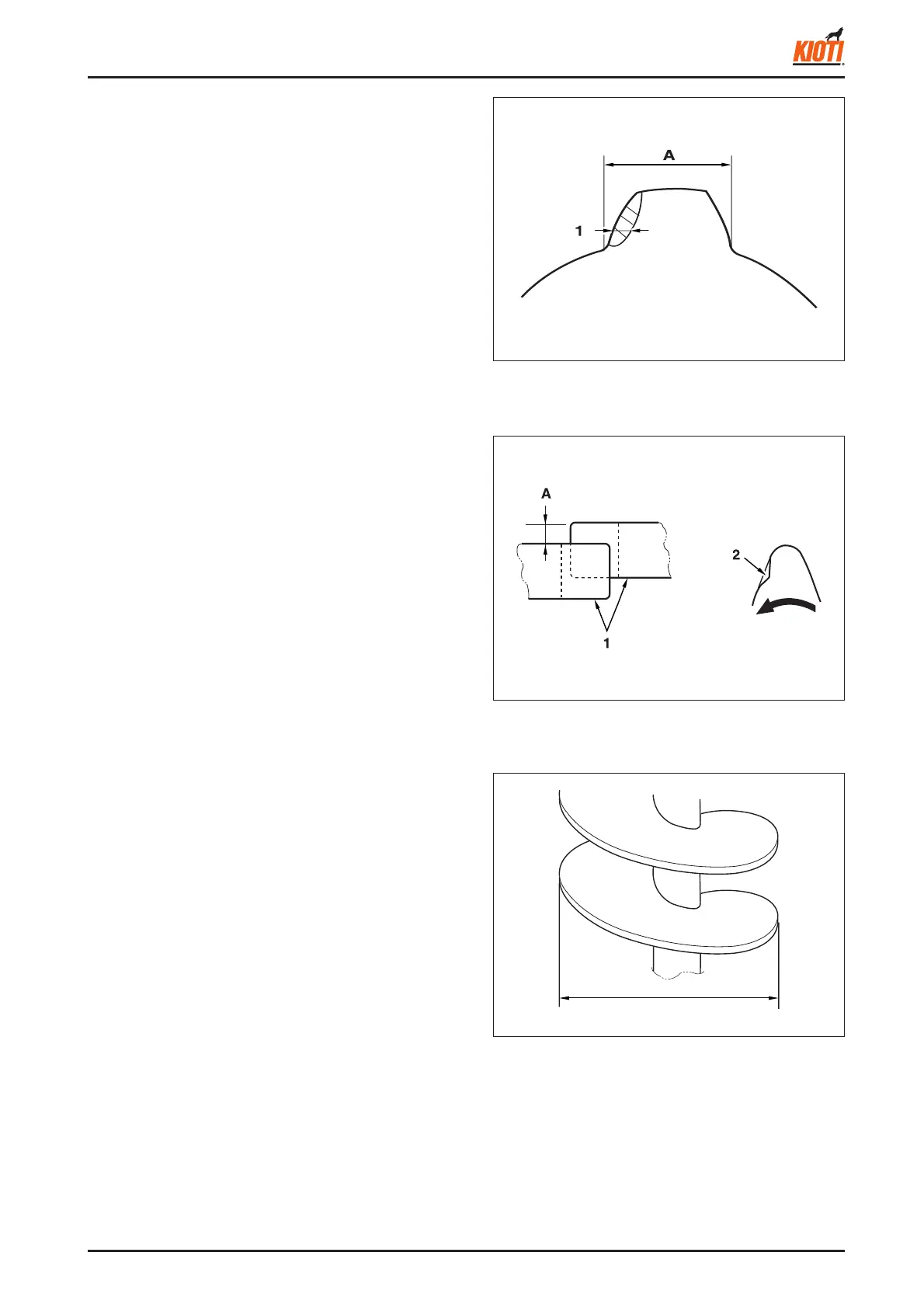

1.9.12 EVERY 500 HOURS
A. CHECKING DRIVE SPROCKET
• Check
Check if it is worn.
• Replacement
If it is worn 5.5 mm or more
417W194A
(1) Wear
(A) New: 38 mm
417W195A
(1) Packer (2) Wear
(A) Protrusion: below 2 mm (adjustable with shims)
417W196A
(A) New: 94 mm (No. 1 vertical auger shaft)
B. REPLACING PACKER
• Check
Check if the packers are not at the same level or they are
abnormally worn or damaged.
• Replacement
If it is abnormally worn or damaged
C. REPLACING NO. 1 AUGER AND VERTICAL
AUGER
• Check
Check if its end and frontal area are worn.
• Replacement
If it does not convey crops properly or the auger is worn 9.5
mm or more
D. REPLACING POWER BRAKE CABLE:
see page 1-26
E. REPLACING FEEDING CHAIN: see page 1-23
