Daedong DSC48 - Checking Engine Stop Motor; Checking Fuel Gauge Unit; Flasher Unit Resistance (S)

7
-34
Apr. 2007
DSC48

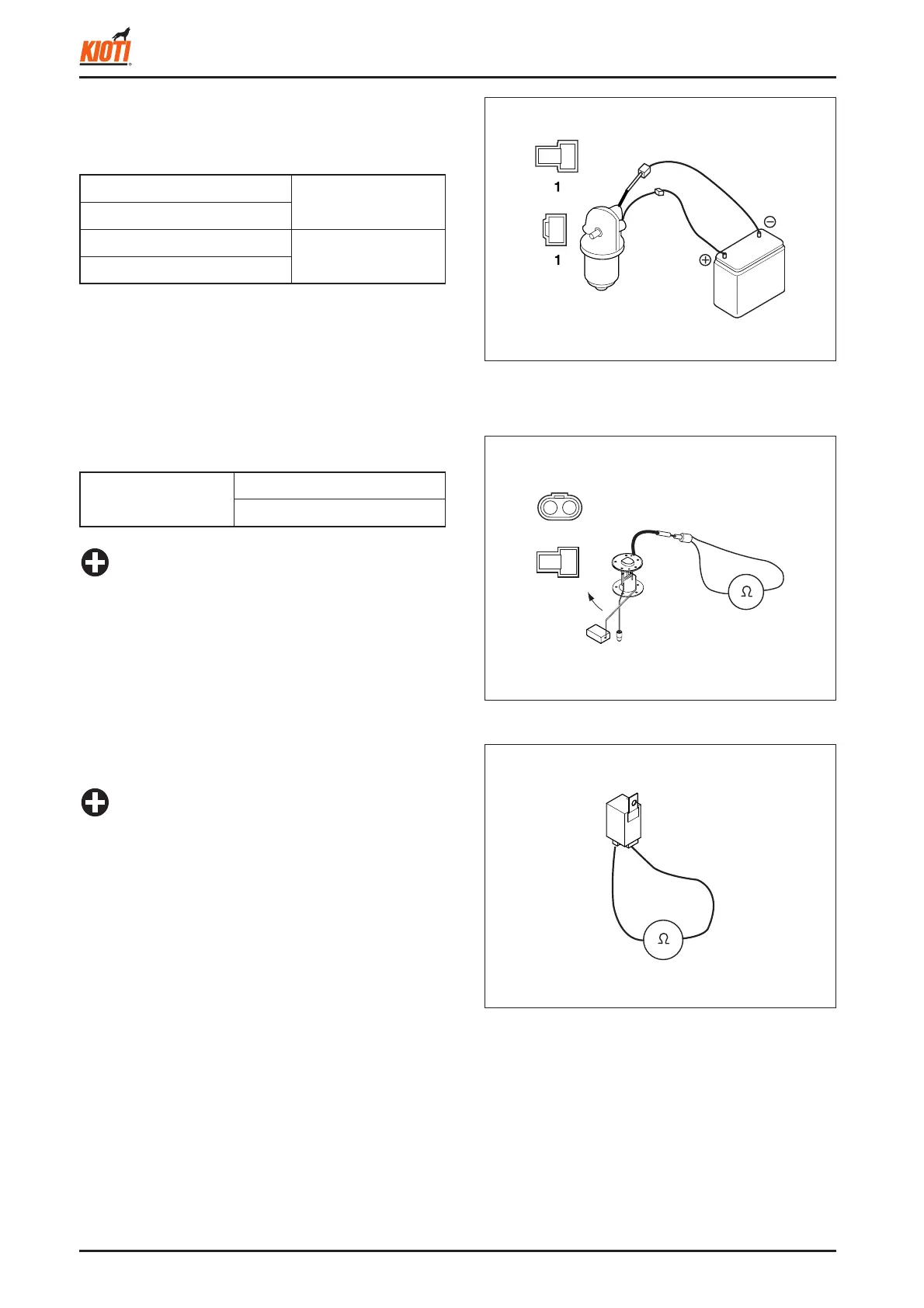

7.1.4 CHECKING ENGINE STOP MOTOR
1. Disconnect the connector and measure at the relay
side.
If the above operation occurs, the motor is normal.
Ú
If the motor is normal, check the connector and wiring.
417W737A
(1) Motor side
7.1.5 CHECKING FUEL GAUGE UNIT
417W738A
7.1.6 FLASHER UNIT RESISTANCE (S)
417W739A
• If the measured resistance of the fuel gauge unit is
same to the above values, check the connector and
wiring.
IMPORTANT
• Approx. 100 Ω
• If the measured resistance of the fl asher unit is same to
the above values, check the wiring.
IMPORTANT
1
2
1
2
1
11
2
(+) terminal: 1P connector
Runs and stops
(-) terminal: 2 of 2P connector
(+) terminal: 1 of 2P connector
Runs and stops
(-) terminal: 2 of 2P connector
Between 1 and 2
Approx. 3 Ω
Approx. 100 Ω
