Daedong DSC48 - Elevator Rake and Cushion Rubber Installation; Elevator Drive 14 Sprocket Shaft, Bearing, 12 Sprocket

Apr. 2007
3
-11
DSC48

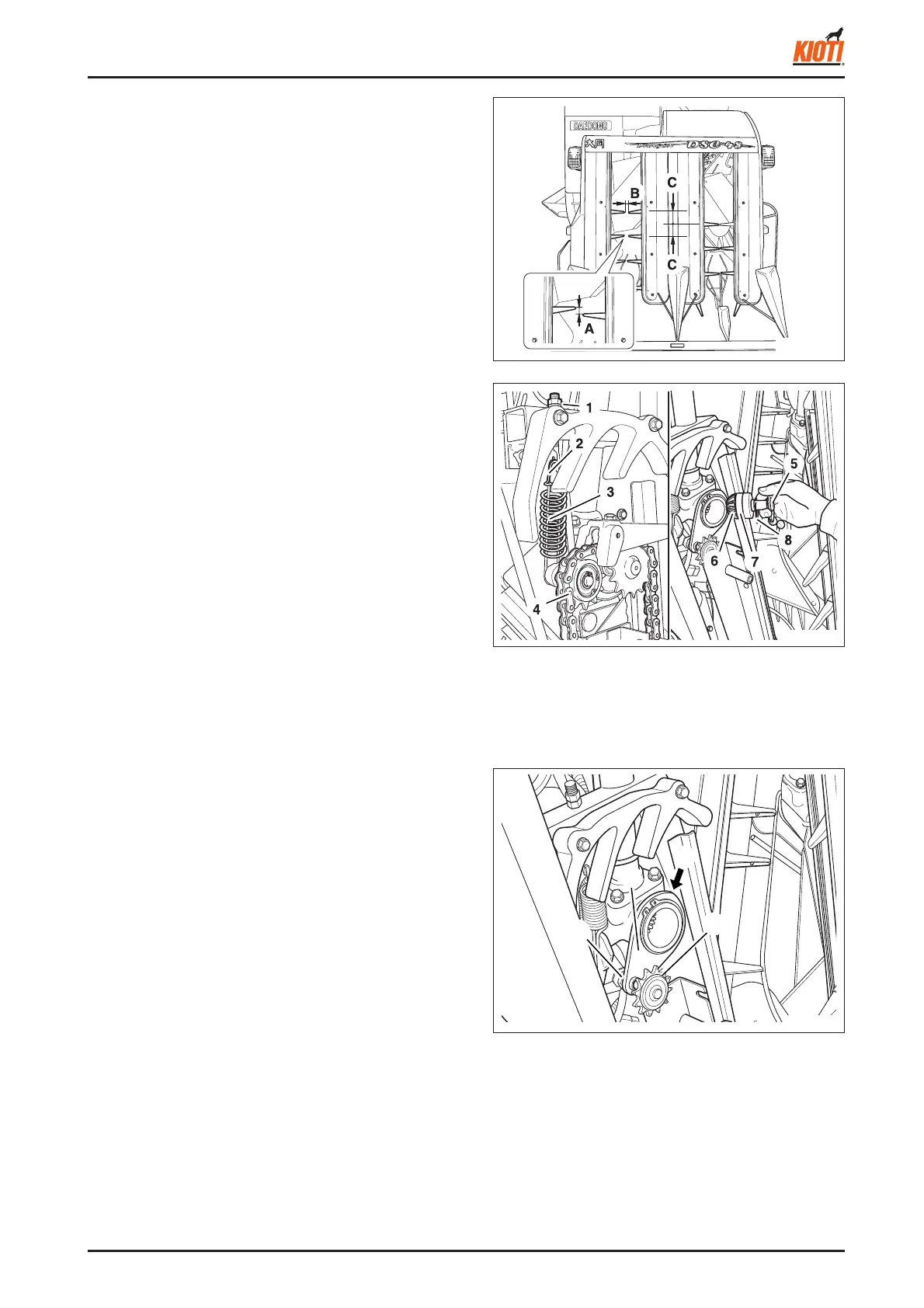

1.4.3 ELEVATOR RAKE AND CUSHION
RUBBER INSTALLATION
1. One side rake should be slightly above the other side
rake to avoid getting caught by each other.
2. Install the cushion rubber to the rotating direction of the
chain.
• A: Clearance between front and back, left and right -
within 9 mm
• B: Clearance between rake edges - 5 ~ 12 mm
• C: Distance between rakes in the same row - 71 ~
111 mm
417W318A
A
10
9
11
1.4.4 ELEVATOR DRIVE 14 SPROCKET
SHAFT, BEARING, 12 SPROCKET
1. Loosen two nuts (1) of the pulling bolt. Then, remove
the tension hook (2) and tension spring.
2. Remove the elevator chain (4).
3. Remove the snap ring (8) and pull out the sprocket
shaft (5) from the assembly.
4. Remove the 16 bevel gear (6) and pull out the bearing
(7) using a puller.
(1) Nut
(2) Tension hook
(3) Tension spring
(4) Elevator chain
(5) 14 sprocket shaft
(6) 16 bevel gear
(7) Bearing
(8) Snap ring
(9) Tension nut
(10) 12 sprocket
(11) Tension arm
(A) Grease applied to
rotating surface
5. Unscrew the tension nut (9) and pull out the 12 sprock-
et (10).
417W319A
417W320A
