Daedong DSC48 - ADJUSTMENT AND REPLACEMENT OF STEM SIDE CHAIN (LH); ADJUSTMENT AND REPLACEMENT OF GRAIN SIDE CHAIN (LH)

3
-14
Apr. 2007
DSC48
1
3
2
3
417W325A

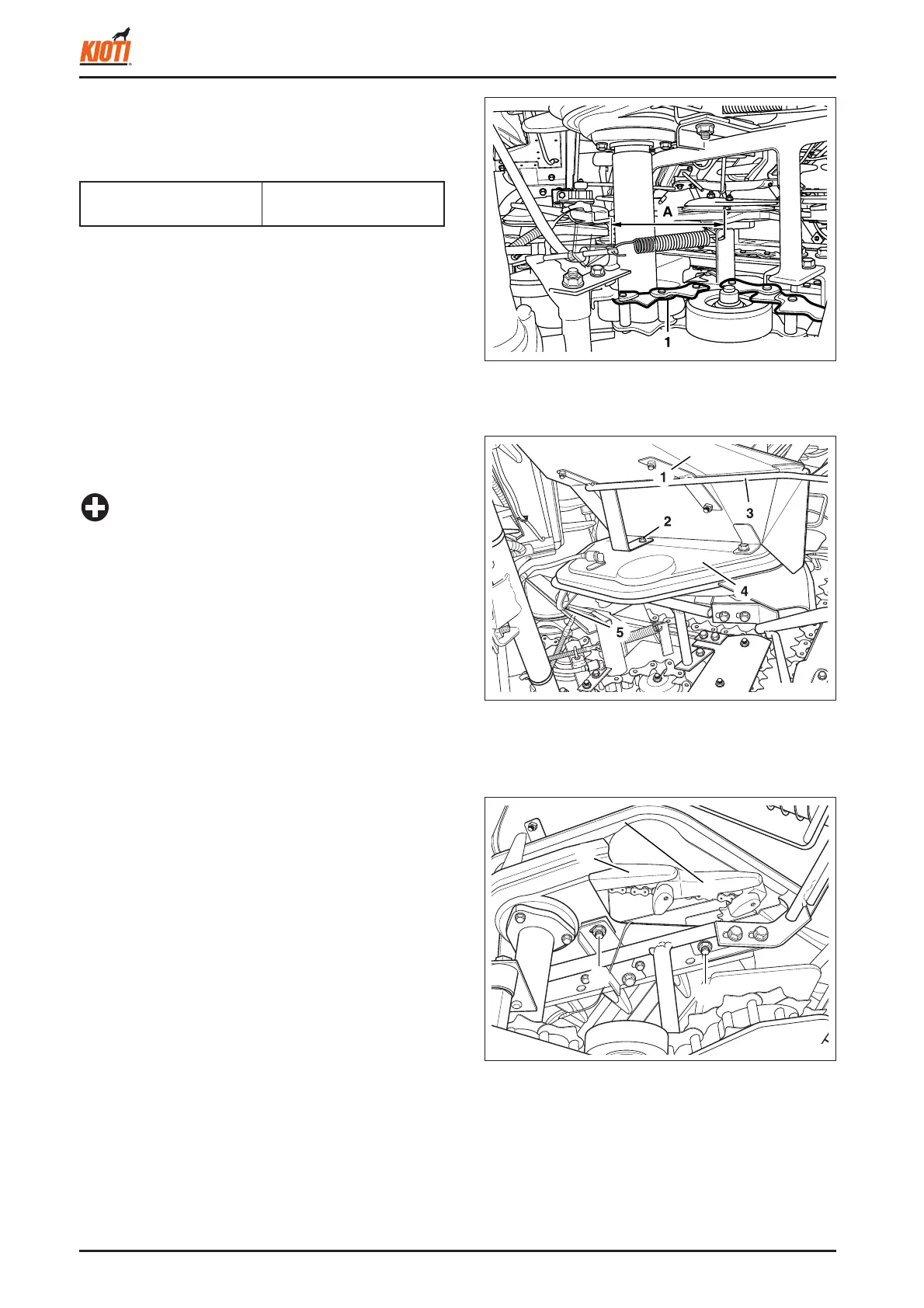

1.5.3 ADJUSTMENT AND REPLACEMENT
OF STEM SIDE CHAIN (LH)
A. ADJUSTMENT
(1) Stem side chain (LH)
(A) 124 ~ 128 mm
1.5.4 ADJUSTMENT AND REPLACEMENT
OF GRAIN SIDE CHAIN (LH)
1. Unscrew the bolts on the grain side frame (LH) and
conveyor guide to remove the cover and conveyor
guide.
2. Unscrew two nuts on the grain side frame to remove
the grain side frame (LH).
3. Remove the grain side chain (LH) by removing its clip.
(1) Cover (4) Grain side frame (LH)
(2) Bolt (5) Grain side chain (LH)
(3) Conveyor guide
(1) Stem side chain (LH)
(2) Grain side frame (LH)
(3) Nut
• The belt tension is automatically adjusted. If the chain
is stretched and the roller shaft contacts the bottom of
the roller cover's long hole, replace the chain.
IMPORTANT
417W326A
417W327A
B. REPLACEMENT
1. Same procedures as for the stem side chain (RH)
Standard spring length
(installed)
124 ~ 128 mm
