Apr. 2007
5
-7
DSC48
B. IDLE ROLLER SHAFT
1. Remove the roller shaft in the following order.
<When assembling>
• Apply a suffi cient amount of grease to the gap between
the bearing units (6 and 9).
• Apply grease to the oil seal (5) and its cap (12) before
installing them.
• Apply LOCTITE to the bolt (11) before installing it.
417W513A
(1) Bolt (7) 160 roller
(2) Plain washer (8) Roller spacer
(3) Track roller shaft (9) Bearing unit
(4) Spacer (10) Plain washer
(5) Oil seal (11) Bolt
(6) Bearing unit (12) Cap

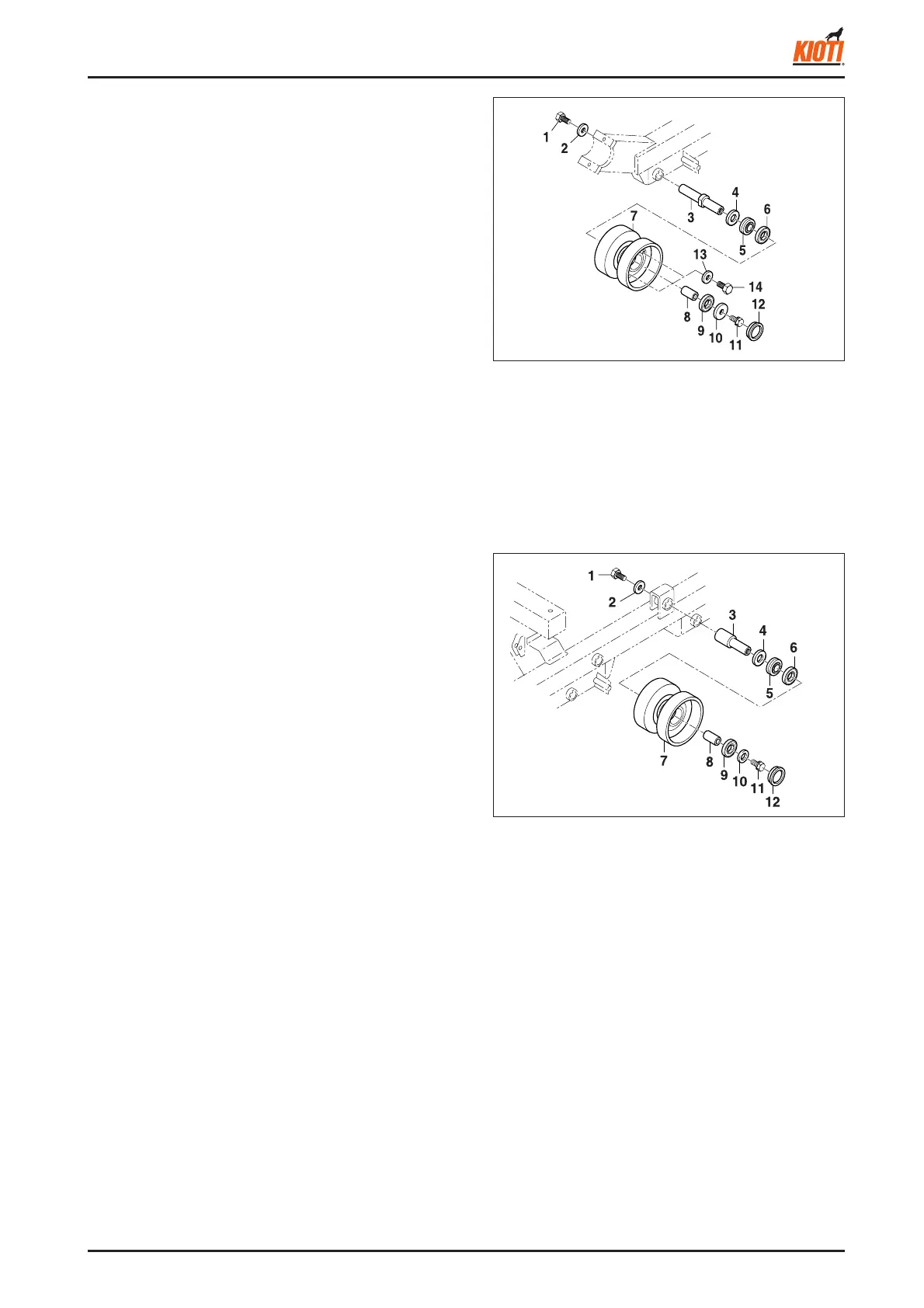

1.2.6 TRACK ROLLER, IDLE ROLLER
AND ROCKER ROLLER
A. TRACK ROLLER SHAFT
1. Remove the cap (12) and bolt (11).
2. Remove the plain washer (10) to take out the 160 roller
(7) from the track roller shaft (3).
<When assembling>
• Apply a suffi cient amount of grease to the gap between
the bearing units (6 and 9).
• Apply grease to the oil seal (5) and its cap (12) before
installing them.
• Apply LOCTITE to the bolt (11) before installing it.
417W512A
(1) Bolt (8) Roller spacer
(2) Plain washer (9) Bearing unit
(3) Track roller shaft (10) Plain washer
(4) Spacer (11) Bolt
(5) Oil Seal (12) Cap
(6) Bearing unit (13) Plain washer
(7) 160 roller (14) Bolt
