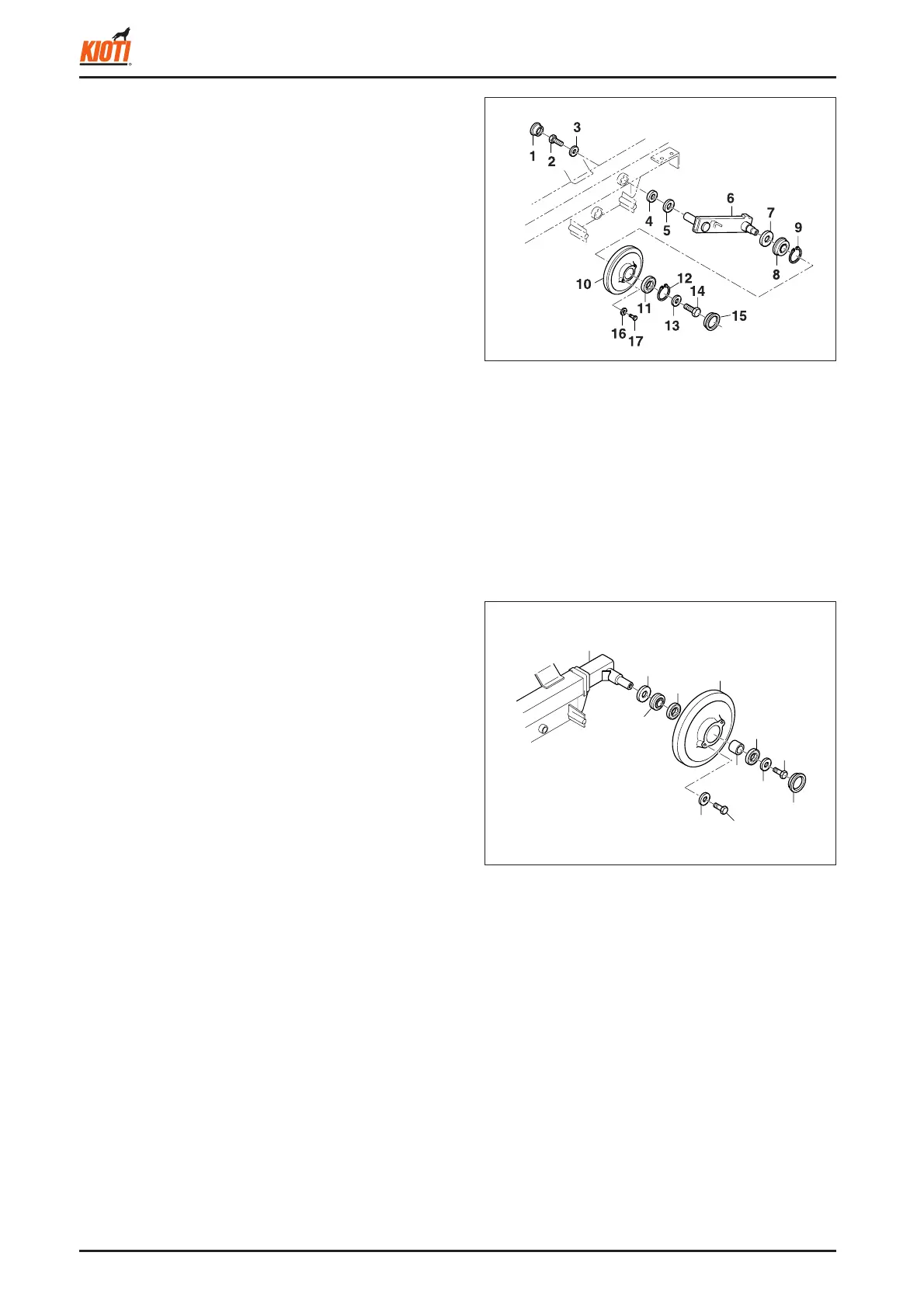

C. ROCKER ROLLER SHAFT
1. Remove the roller shaft in the following order.
<When assembling>
• Apply grease to the oil seal (8) before installing it.
• Apply a suffi cient amount of grease to the gap between
the oil seal (8) and its cap (15).
• Apply LOCTITE to the bolt (14) before installing it.
D. REAR WHEEL SIDE
1. Remove the rear wheel shaft in the following order.
<When assembling>
• Apply grease to the oil seal (3) before installing it to the
wheel tension (1).
• Apply LOCTITE to the bolt (9) before installing it.
417W514A
(1) Plug
(2) Bolt
(3) Spacer
(4) Oil Seal
(5) Spacer
(6) Rocker front wheel
arm
(7) Spacer 40-20
(8) Oil Seal
(9) Snap ring
(10) 155 roller
(11) Bearing unit
(12) Snap ring
(13) Plain washer
(14) Bolt
(15) Cap
(16) Plain washer
(17) Bolt
(1) Wheel tension (7) Bearing unit
(2) Spacer (8) Plain washer
(3) Oil seal (9) Bolt
(4) Bearing unit (10) Cap
(5) 250 roller (11) Plain washer
(6) Spacer (12) Bolt
417W515A
