2
-14
Apr. 2007
DSC48
417W228A

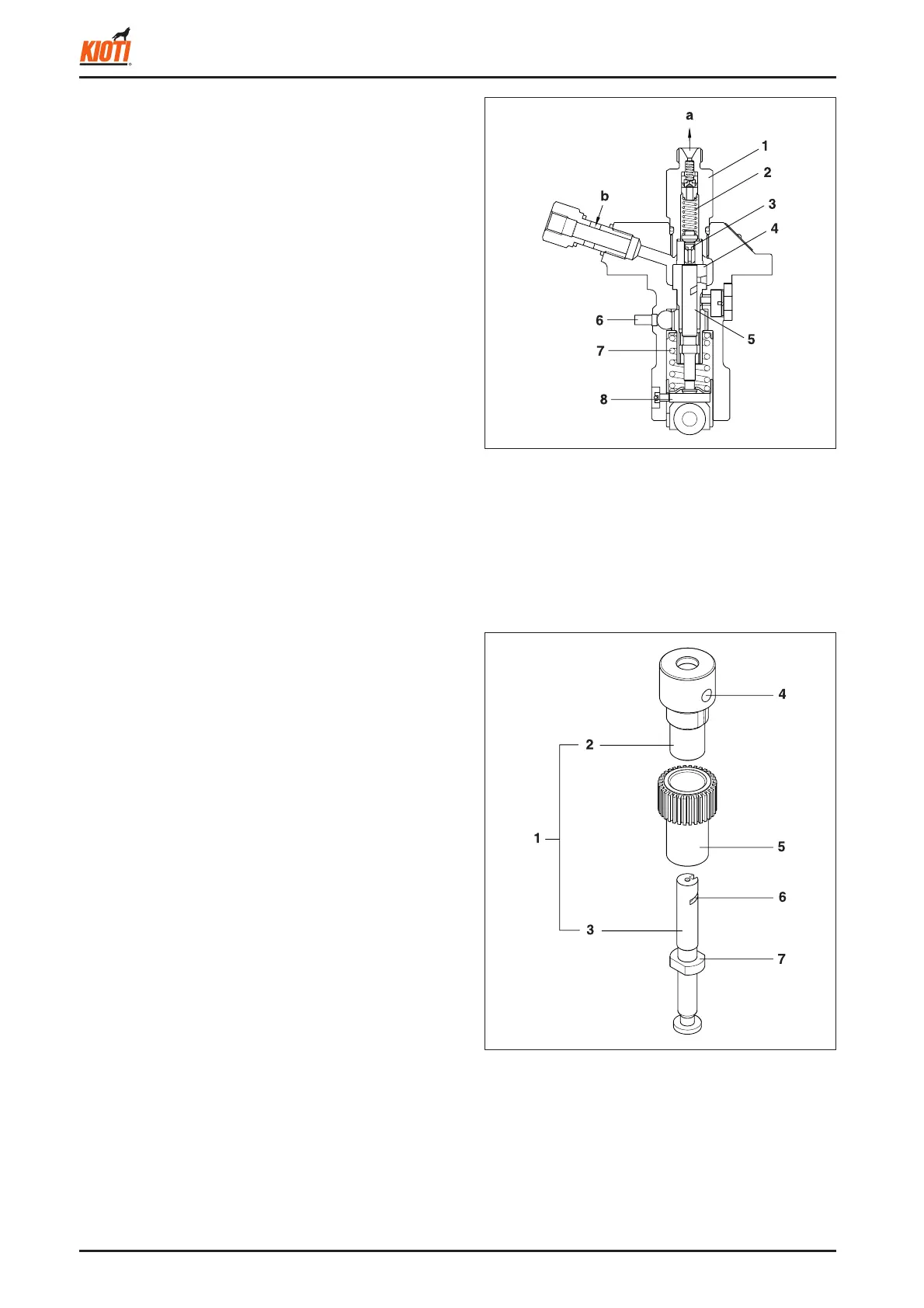

(1) Pump element (5) Control sleeve
(2) Cylinder (6) Control groove
(3) Plunger (7) Driving surface
(4) Feed hole
A. PUMP ELEMENT
The pump element (1) consists of the plunger (3) and cyl-
inder (2). Their sliding surfaces are precisely machined to
maintain fuel tightness. The plunger (3) fi ts in the control
sleeve (5) at the driving surface (7). The sleeve is engaged
with the control rack, which rotates the plunger in the cylin-
der to control the amount of fuel delivery.
417W227A
2.4.3 FUEL INJECTION PUMP
The injection pump is BOSCH K type mini injection pump.
It features a compact and light weight design.
(a) From fuel fi lter (b) To injection pump
(1) Delivery valve holder (5) Plunger
(2) Delivery valve spring (6) Control rack
(3) Delivery valve (7) Plunger spring
(4) Cylinder (8) Tappet
