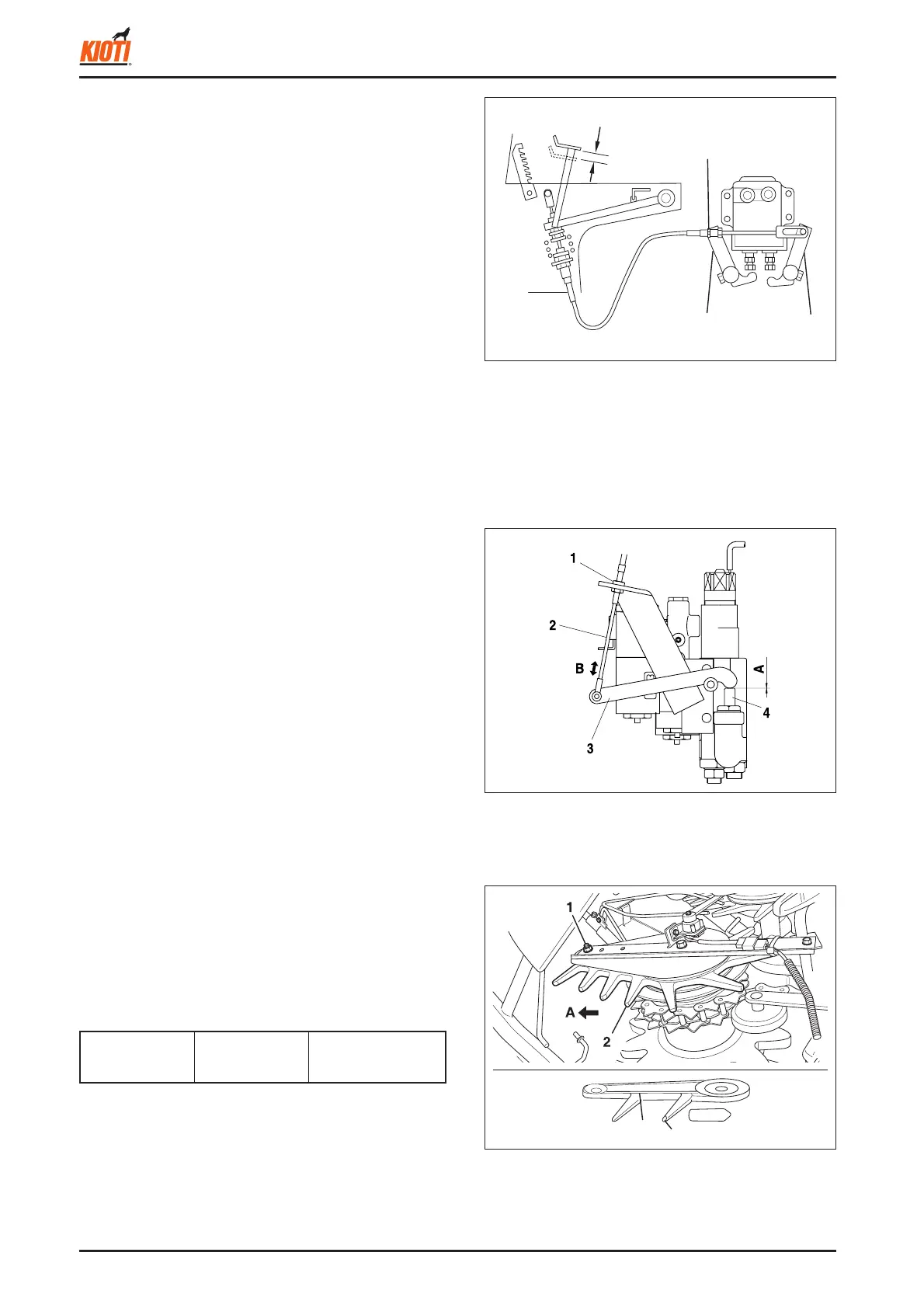

B. ADJUSTING PARKING BRAKE CABLE
• Check
Check if the cable is defl ected or damaged.
• Replacement
If it is malfunctioning
• Adjustment
- Adjust the cable so that the margin of the parking
brake pedal play is 0~5 mm.
- Do not pull the side clutch levers (LH/RH) during ad-
justment.
417W166A
(1) Margin: 0 ~ 5 mm (0 ~ 0.197 in.)
(2) Parking brake cable
(3) Side clutch lever (RH)
(4) Lock
(5) Side clutch lever (LH)
C. ADJUSTING POWER BRAKE CABLE
• Check
Check if the cable is defl ected or damaged.
• Replacement
If it is malfunctioning
• Adjustment
Adjust the power brake cable with the adjusting nut so that
the clearance A between the brake arm and the variable
relief valve is 0.1 ~ 0.4 mm (B = 0.3 ~ 1.9 mm).
417W167A
D. ADJUSTING PROTRUSION BELT
• Check and adjustment
Check the peeled-off or defl ected belt and the broken pro-
trusion.
• Replacement
If the belt is severely worn or the protrusion is cracked
417W168A
(1) Nut (4) Wear
(2) Conveyer belt (A) Pull
(3) Crack
(1) Mounting nut (3) Brake arm
(2) Power brake cable (4) Rod
Defl ection of
belt center
Specifi ed value
5 ~ 10 mm
(0.197 ~ 0.394 in.)
