4
-30
Apr. 2007
DSC48
417W474A

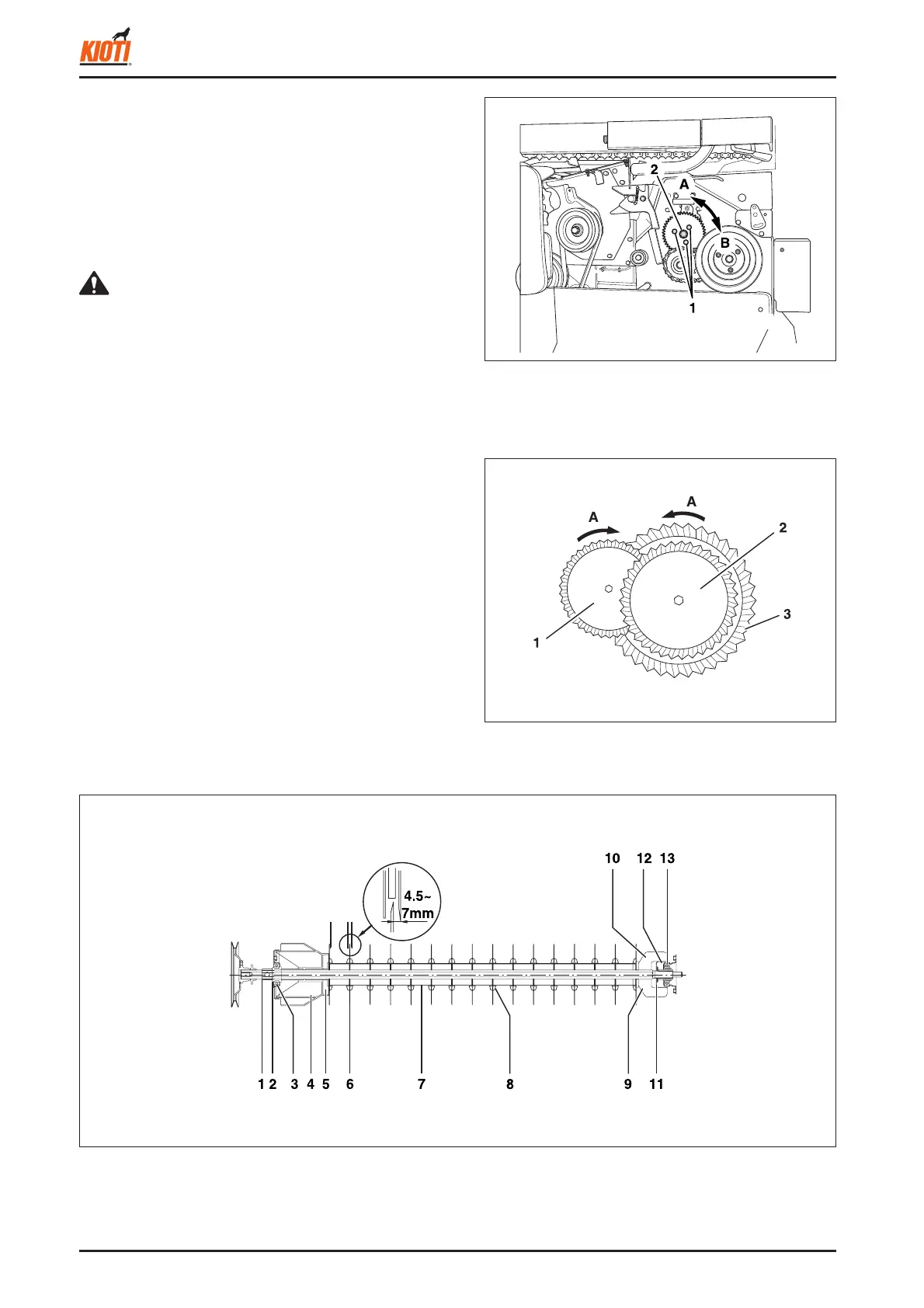

(1) Drive pulley shaft (3) Base disc
(2) Cutter shaft (4) Cutting disc
(5) Scraper (7) Grain side
(6) Feeding loader (A) 4.5 ~ 7.0 mm
417W472A
2. Adjust the gap by pushing (turning) the 38T gear to-
ward the shaft.
• Right turn (gap shortens)
• Left turn (gap widens)
(1) 38T gear (2) Bolt
(A) Left turn: to widen the gap
(B) Right turn: to shorten the gap
• Unscrew the bolt with a spanner from the cutter shaft
side.
CAUTION
D. CUTTER DISC
1. Adjust the gap between the base disc and cutting
disc as follows. The interval between the 1st and 16th
base discs and cutting discs seen from the drive pulley
should be 4.5 ~ 7.0 mm.
<Adjustment>
• Remove the cutter drive belt and unscrew three mount-
ing bolts of the 38T gear on the base shaft.
417W473A
(1) Base disc (3) Cutting disc 200
(2) Cutting disc 170 (A) Rotating direction
To Next Page
