Daedong DSC48 - Page 191

Apr. 2007
4
-31
DSC48
2
3
417W477A
3. Unscrew two M8 bolts and remove the dust-proof plate 5.
(1) M8 bolt
417W475A

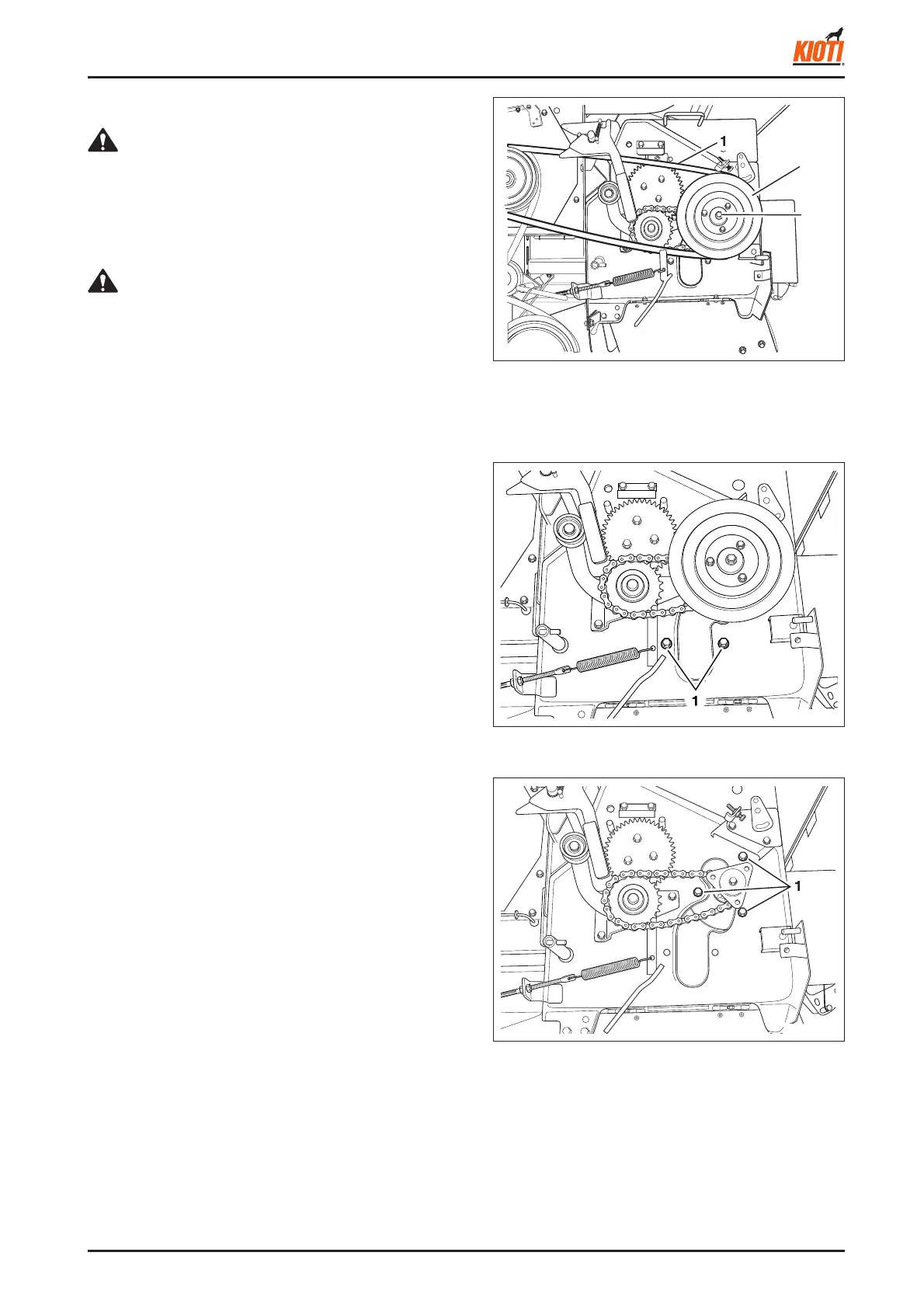

F. REPLACEMENT OF CUTTER DISC
417W476A
(1) M8 bolt
1. Remove both side covers and the cutter drive belt 1.
2. Unscrew the M10 bolt from the cutter drive pulley.
<When assembling>
• Apply LOCTITE to the M10 bolt.
(1) Cutter drive belt (3) M10 bolt
(2) 180 pulley
• Wear protective gloves during work.
• Be careful not to touch the cutter blade when removing
or installing the cutter shaft.
CAUTION
• Unscrew the bolt with a spanner from the cutter shaft
side.
CAUTION
4. Remove the M8 bolts from the shaft support (grain side:
3EA, stem side: 3 EA).
<When assembling>
• Set the 12T sprocket 6 with no boss surface facing the
cutter drive pulley.
