2
-56
Apr. 2007
DSC48
417W2B5A

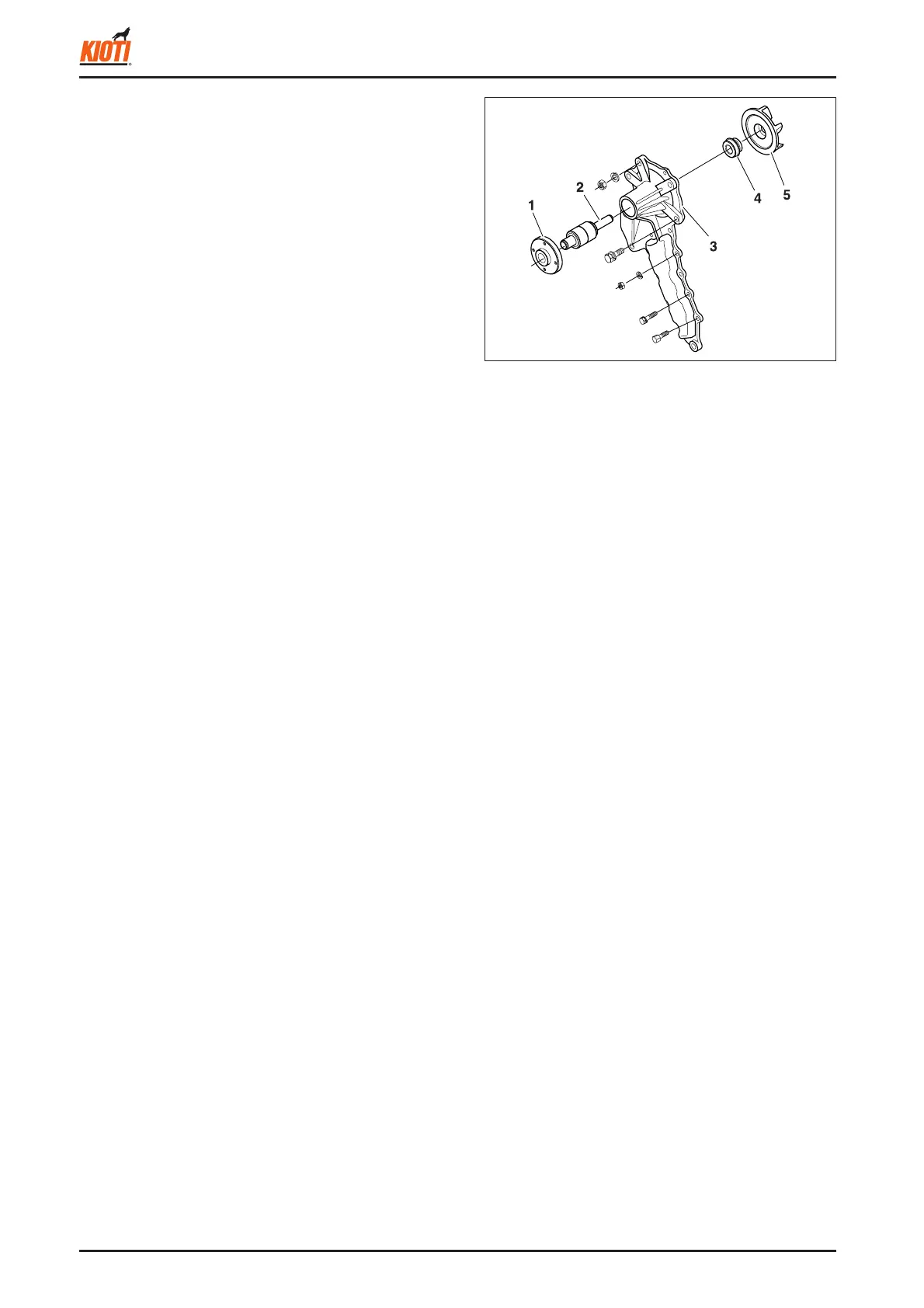

(1) Water pump fl ange (4) Water pump body
(2) Snap ring (5) Mechanical seal
(3) Water pump shaft (6) Impeller
B. DISASSEMBLY AND ASSEMBLY
► WATER PUMP
1. Remove the cooling fan and fan pulley.
2. Remove the water pump assembly from the gear case.
3. Remove the water pump fl ange (1).
4. Pull out the impeller and water pump bearing.
5. Remove the impeller from the water pump bearing.
6. Remove the mechanical seal.
<When reassembling>
• Replace the oil seal with new one.
To Next Page
