Daedong DSC48 - PRECAUTIONS DURING INSTALLATION

Apr. 2007
4
-21
DSC48
1
2
3
4
2
3
(1) Sieve cases (front, 2 EA)
(2) Rocker shaft seal
(3) Fuel tank
(4) No. 1 walker (2 EA)
(5) No. 2 walker (2 EA)
417W447A

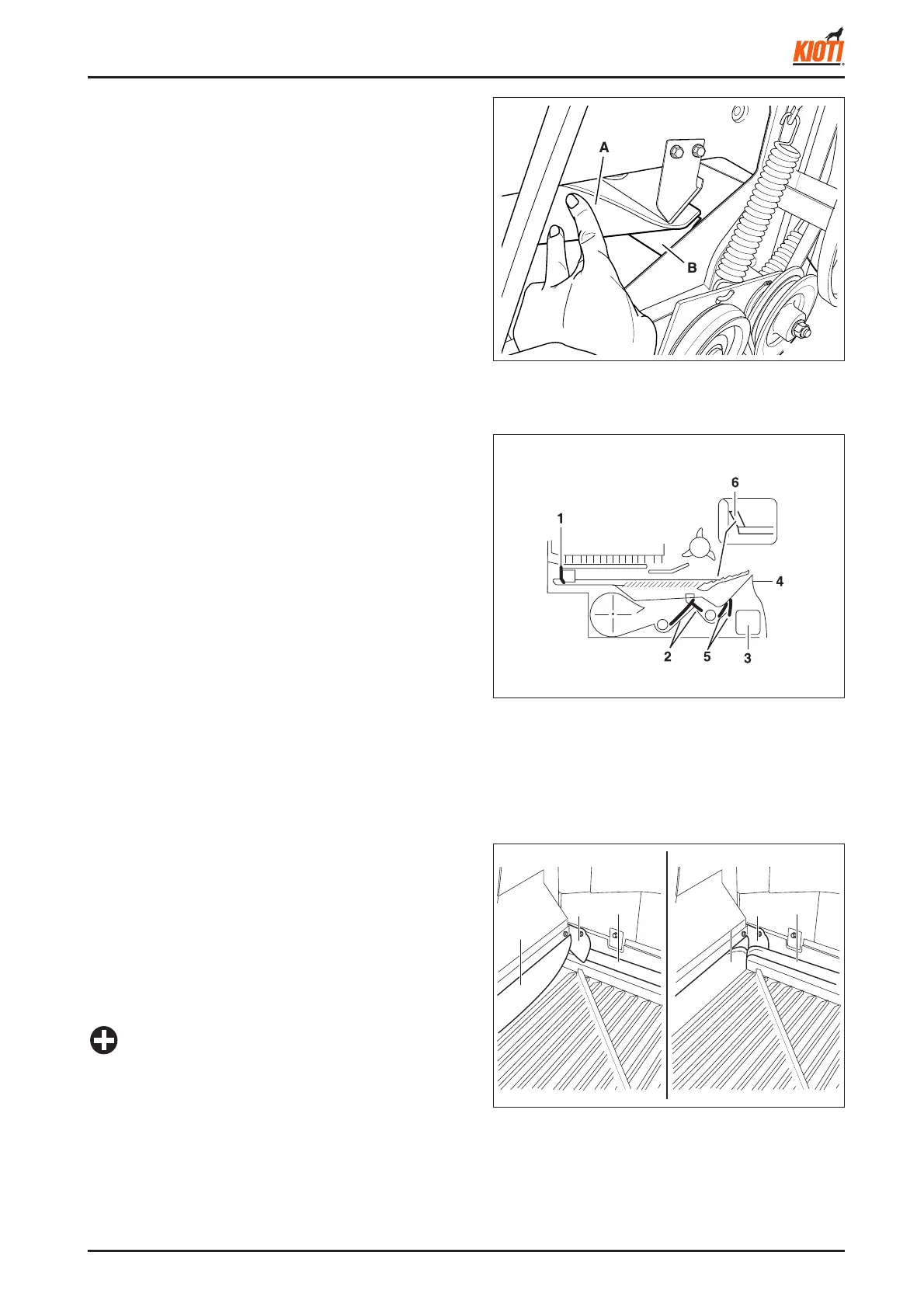

B. PRECAUTIONS DURING INSTALLATION
1. Fold the separator cover to the front and fi x it to the No.
1 walker.
2. Insert the No. 2 cover into the No. 2 walker.
(1) Sieve guide 1
(2) Cover
(3) Cover 2
(4) Cover 6
[Incorrectly installed seal]
3. Remove the blade support to remove the threshing cyl-
inder concave. Install the front cover. The sieve guide 1
should be behind the cover 6 and the cover 2 should be
between the cover and the right plate as shown in the fi g-
ure (Correctly installed seal).
4. Set the covers on the outer right and left sides of the
sieve case to face front.
5. The side plate cover (rear) of the sieve case should
head towards the reaping unit (arrow mark).
[Correctly installed seal]
• When installing the sieve case, make sure it is not
bent. If it is, fl atten it by pressing it down with a pole or
equivalent.
IMPORTANT
417W446A
(A) Separator cover
(B) No. 2 cover
417W448A
