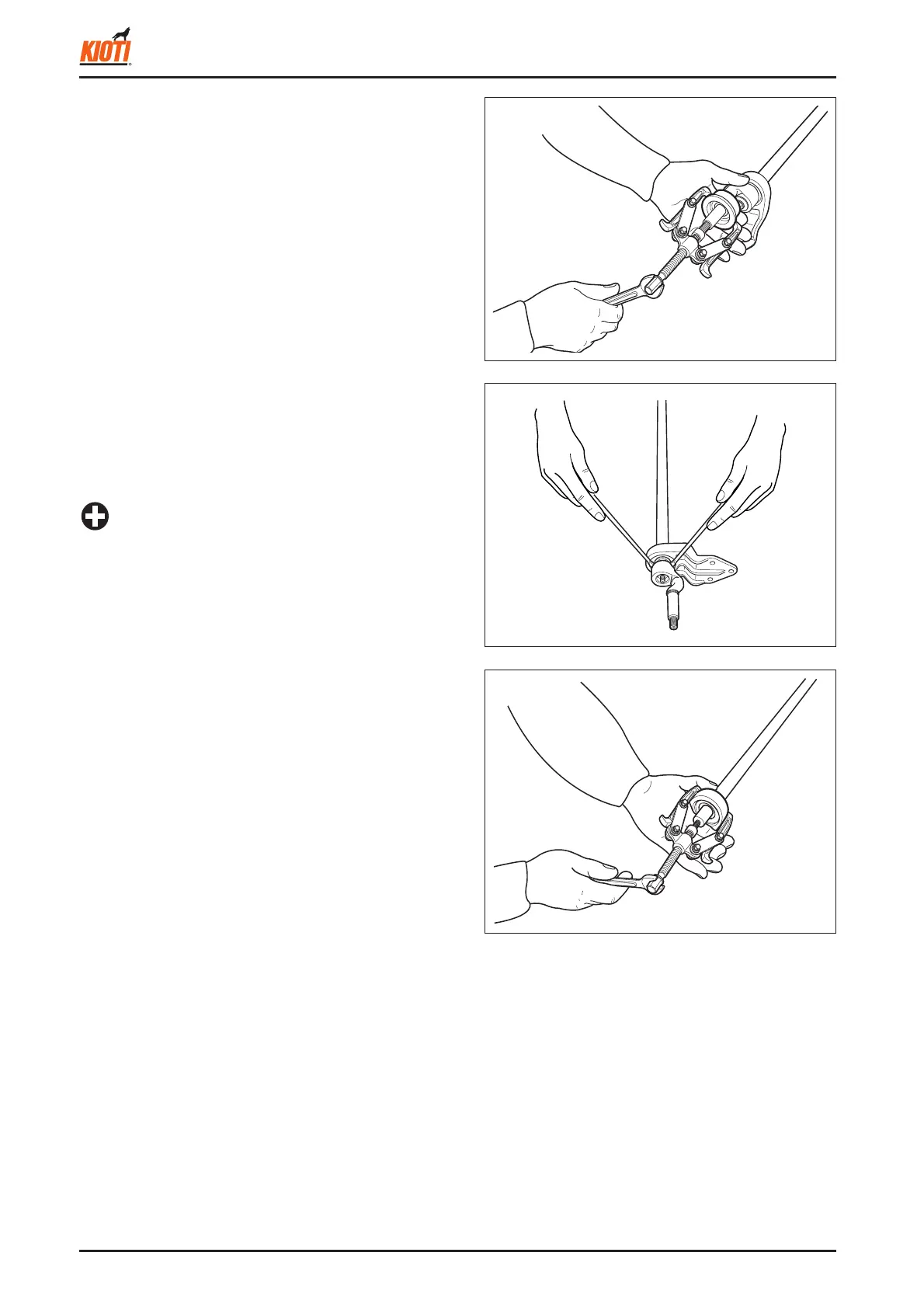

7. Remove the rocker arm using a puller.
<When assembling>
• Before installing the nut, apply LOCTITE to it.
IMPORTANT
417W455A
4. Remove the key and pull out the rocker bearing holder
with a puller.
5. Remove the mounting nut and the washer from the
rocker shaft 2.
417W456A
6. Install the nut to the threaded section of the rocker shaft
1 to be protruded a little or just to contact with. Insert a
screwdriver between the rocker shaft 2 and rocker arm
and push it. While doing this, put a prop on the nut and
tap on it with a hammer to remove the rocker shaft 2
(same work procedure for the rocker shaft 3).
