Pressure-Controlled Ventilation Chapter 7 - Ventilation
Apollo Operator’s Manual 95
Part Number: 90 38 237, 6th edition
Synchronized Pressure-Controlled
Ventilation

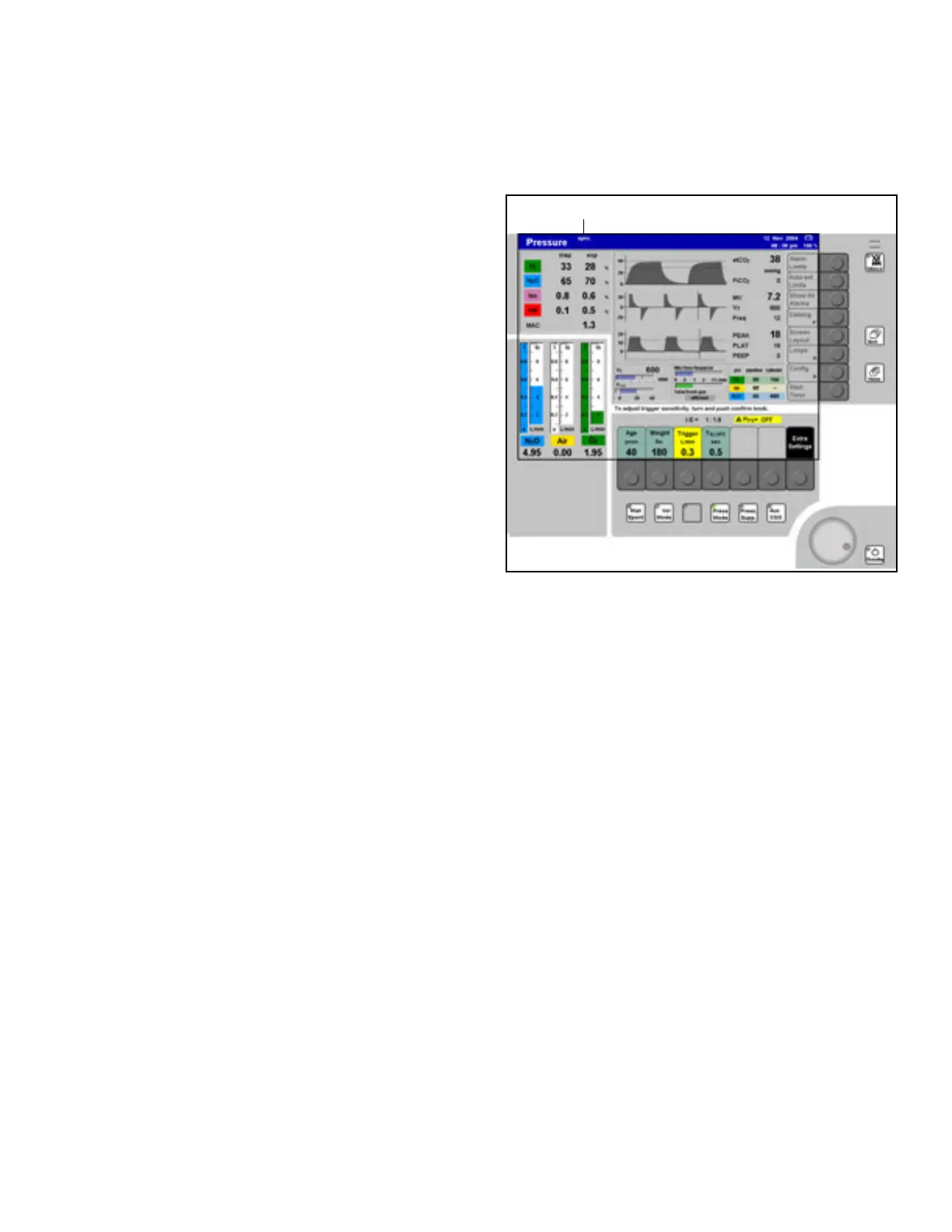

Figure 69. Pressure Mode with SynchronizationSynchronization is activated by entering a value for
the trigger sensitivity using the >Extra Settings<
parameter soft key:
1. Press the >Extra Settings< soft key on the
Pressure mode screen (1 in Figure 69). New soft
keys appear, including the trigger sensitivity
>Trigger< (2 in Figure 69).
2. Press the soft key >Trigger<. The key turns
yellow and shows the last trigger value that was
set. The “sync” indication in the status field
flashes on and off (3 in Figure 69).
3. Turn the confirm knob to adjust the trigger to the
desired value, and press the knob to confirm (4
in Figure 69).
When the trigger value is confirmed, the “sync”
indication in the status field stops flashing and is
displayed steadily.
A ventilation stroke triggered by the patient is
represented by a continuous vertical black line in the
pressure curve and in the flow curve (trigger
indicator). The active window for the stroke triggered
by the patient corresponds to the last 25% of the
applicable expiratory time. The actual trigger status is
shown above the ventilation parameter soft keys.
1
2
3
4
