Chapter 3 - User Interface User Controls
32 Apollo Operator’s Manual
Part Number: 90 38 237, 6th edition

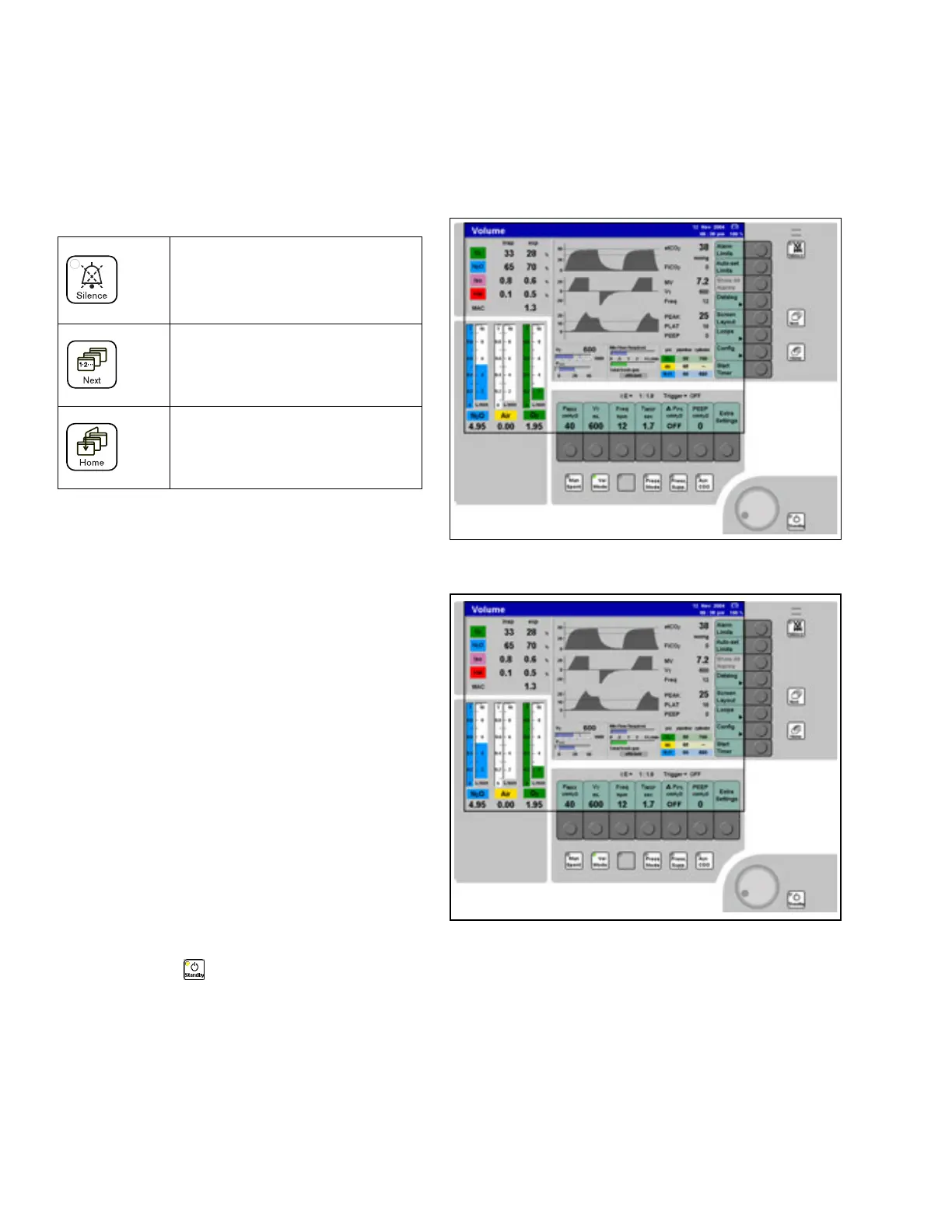

Standard Function Keys
Three keys for standard functions are located on the
right side of the display screen (1 in Figure 11):
Figure 11. Standard Function Keys
Main Confirm Knob
Figure 12. Location of Main Confirm Knob & Standby KeyThe main confirm knob is located on the bottom right
side of the screen (1 in Figure 12). It is the main
control used to select and confirm all monitoring and
system settings:
turn the confirm knob to change or select a
value or parameter (clockwise rotation
increases a value; counterclockwise rotation
decreases a value).
push the confirm knob to set a value or
confirm a selection. If the selection is not
confirmed, the value or parameter will not
change.
Standby Key
The standby key (2 in Figure 12) is used to switch
between operating and standby modes.
to set the machine to standby mode, press the
standby key > <. Then push the confirm
knob to confirm.
The standby key is also used to enter monitoring
mode while in standby (see “Monitoring Mode” on
page 126 for more information).
1
press this key to suppress audible
alarms for two minutes; or to change
the priority of technical alarms and
acknowledge them
press this key to display in succession
the three available monitoring screens:
standard, data, and trend
press this key to display the standard
monitoring screen
1
2
