Overview
The Apollo has three basic screens for the display of
monitoring information: standard, data, and trend.
The gas measurement and gas delivery windows
remain displayed in all three screens, but the
information presented in the graphical/numerical
window will change, depending on the selected
screen and user configuration.
This section of the manual defines all monitoring
parameters and provides instructions for selecting
and configuring monitoring screens and parameters.
Standard Screen

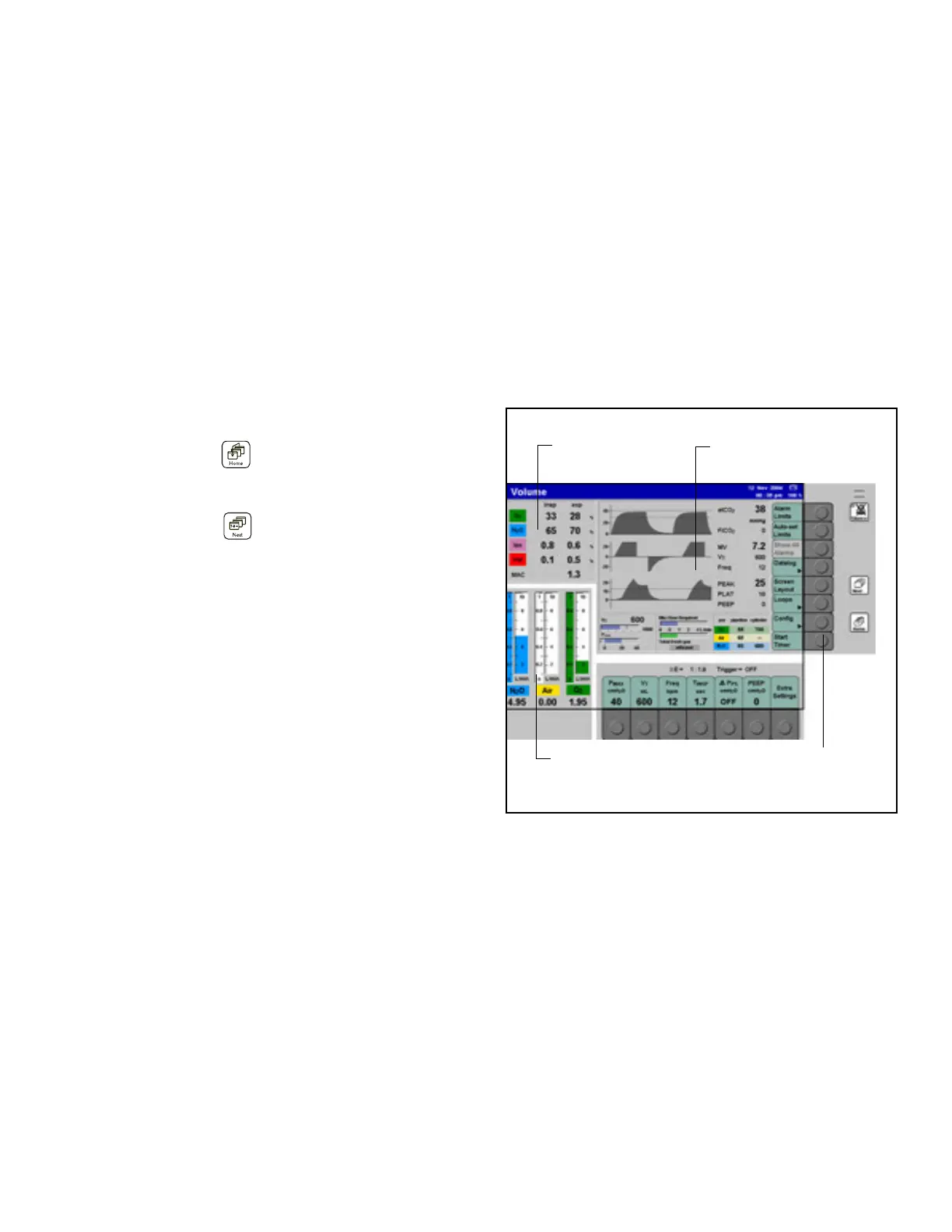

Figure 77. Standard ScreenTo display the standard screen, press one of the
following hard keys on right side of the screen:
• Press the > < key to display the standard
screen directly (1 in Figure 77)
or
• Press the > < key one or two times in
succession until the standard screen is
displayed (2 in Figure 77)
The left side of the standard screen displays the gas
measurement and gas delivery windows which
remain displayed on the screen at all times during
operation (refer to Figure 77).
The graphical/numerical window displays the
majority of Apollo parameter information and can be
customized by the user for screen layout and/or
content. The top portion contains real-time curves
and corresponding numeric values for monitored
parameters, and the bottom portion contains
modules that are configured by the user and provide
various types of ventilation and system information.
The monitoring/configuration soft keys allow the user
to customize the display and provide access to
additional functions.
For a list of monitored parameters, see “Displayed
Parameters” on page 111.
1
2
Gas Measurement
Display
Graphical/Numerical
Display
Fresh Gas Delivery
Display
Monitoring/Configuration
Soft Keys
