Chapter 10 - Configuration Configuring the Default Settings in Standby

152 Apollo Operator’s Manual

Part Number: 90 38 237, 6th edition

Screen Layout

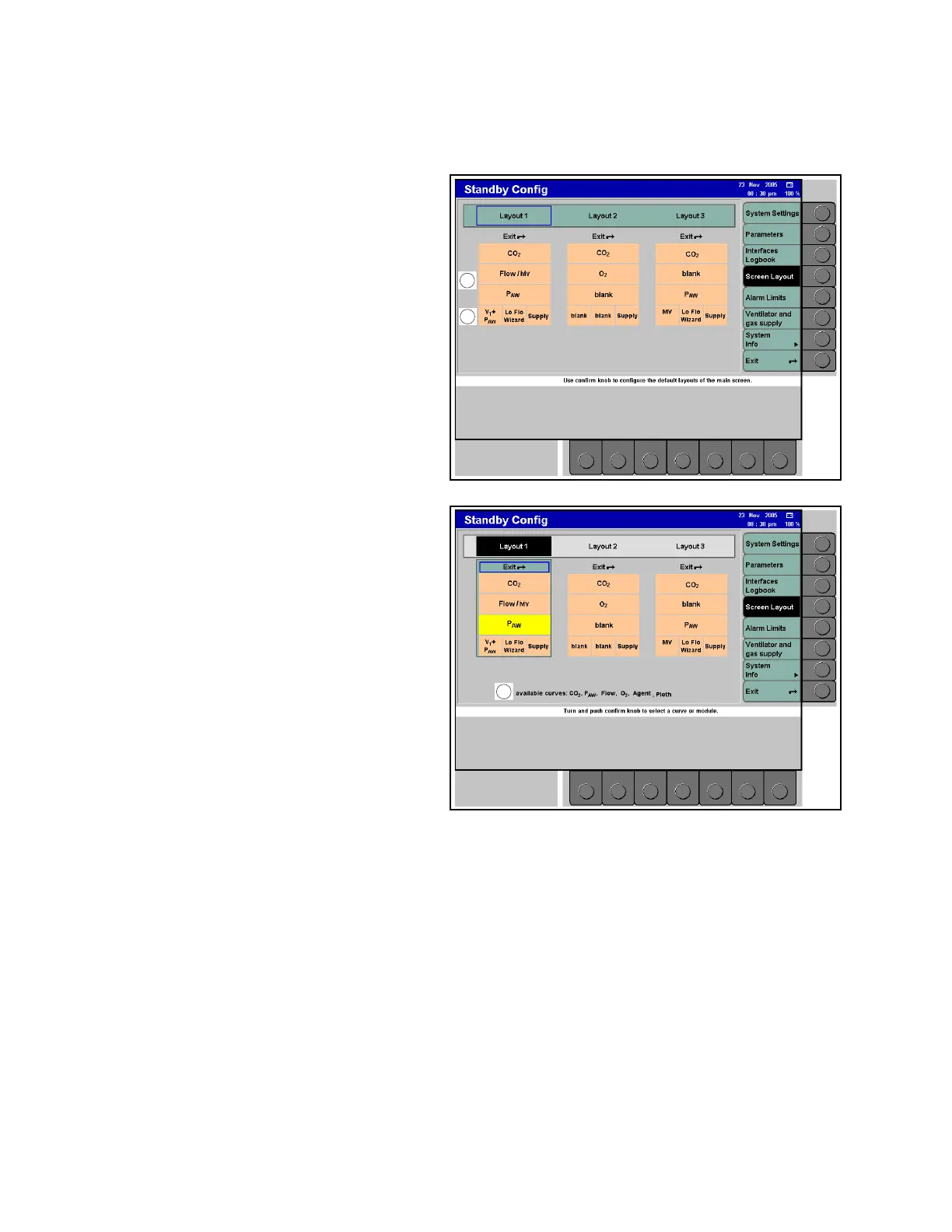

Figure 117. Screen Layout Standby Configuration ScreenThis screen is used to configure the three default

screen layouts that the user can select during

operation: Layout 1, Layout 2, and Layout 3.

For each layout, the top three options (1 in Figure

117) are used to select the curves to be displayed,

while the bottom three options (2 in Figure 117)

determine the modules that are displayed below the

curves.

To configure Layout 1, Layout 2, or Layout 3:

1. Using the confirm knob, select and confirm the

desired layout.

2. Using the confirm knob, select and confirm a

curve or module.

3. Using the confirm knob, change and confirm the

selection.

Figure 118. Available OptionsWhen one of the curves or modules is selected, the

available options are displayed at the bottom of the

screen (1 in Figure 118). Any of the curves or

modules can be configured as “blank”. Each curve or

module can only be selected once; if the same curve

or module is selected a second time, the previous

one is automatically set to “blank”.
