Chapter 11 - Cleaning and Maintenance Reassembling Components
180 Apollo Operator’s Manual
Part Number: 90 38 237, 6th edition
Installing the breathing system

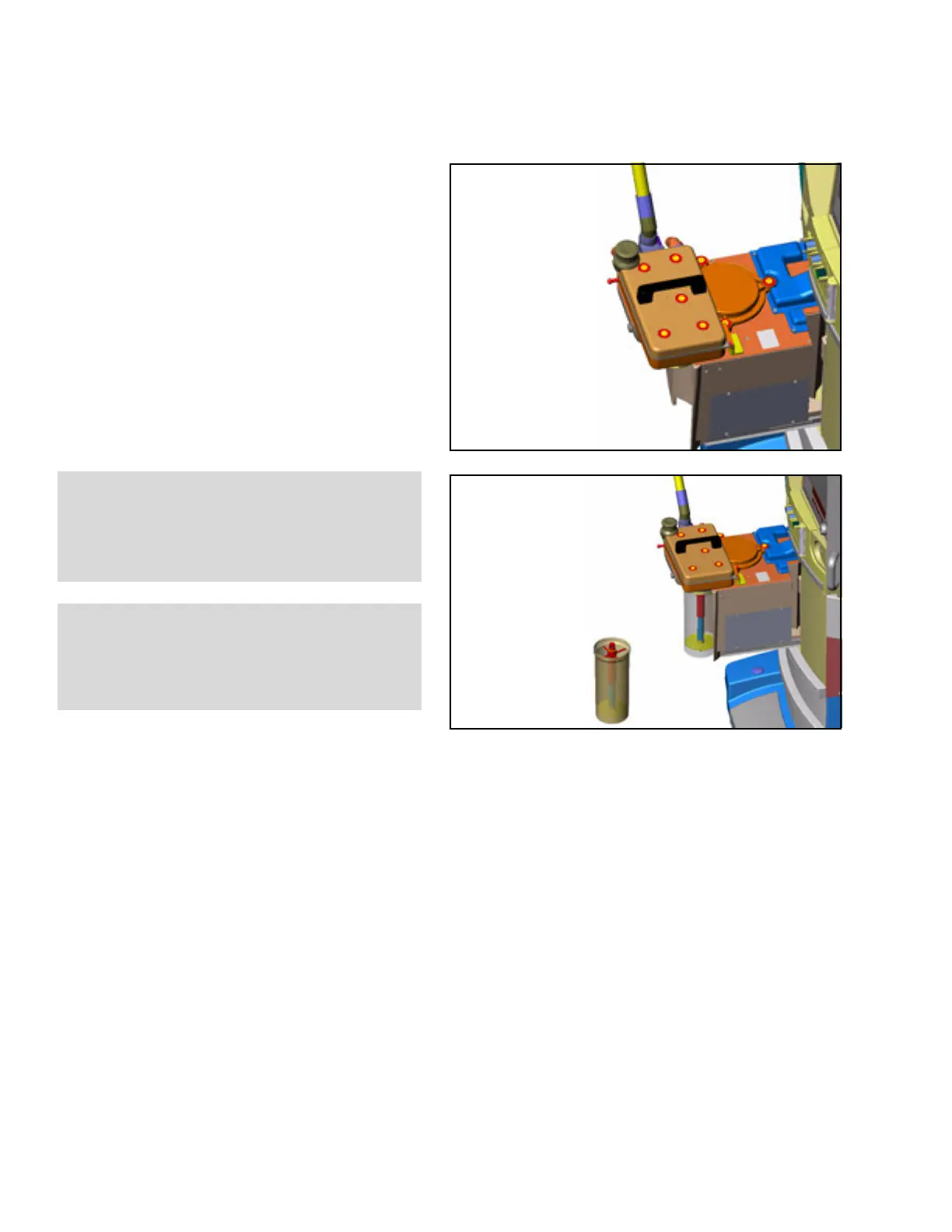

Figure 148. Installing the Breathing System
• Carefully seat the breathing system onto the
ventilator module, and tighten the three sealing
screws (1 in Figure 148) on the ventilator
cover.
Filling and installing the absorber
1. Push the insert fully into the absorber canister (2
in Figure 149).
2. Fill the absorber canister with fresh soda lime up
to the MAX mark.
Figure 149. Installing the Absorber Canister
3. Fit the canister into position below the breathing
system, and turn counterclockwise as far as
possible.
4. Slowly push in the ventilator module until it
engages.
1
1
1
➡
➡
➡
➥
2
WARNING !
Absorbent is caustic and is a strong eye, skin,
and respiratory tract irritant. Use care in
handling the absorbent to avoid spills.
CAUTION !
It is recommended that Drägersorb 800 Plus or
Drägersorb FREE be used. Do not use powdered
soda lime, as a higher dust load may impair
functionality of the Apollo workstation.
