Chapter 8 - Monitoring Monitoring Mode
126 Apollo Operator’s Manual
Part Number: 90 38 237, 6th edition
Monitoring Mode

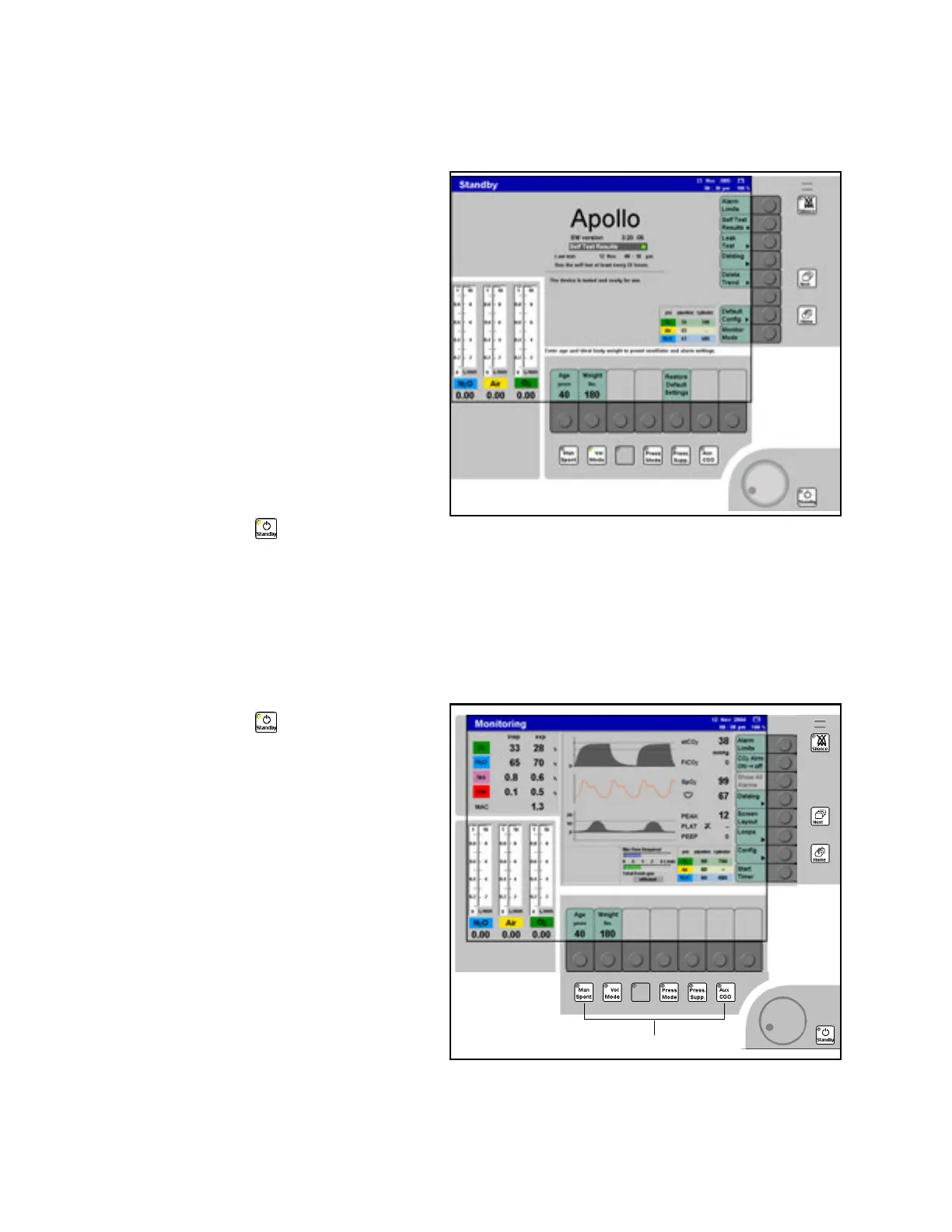

Figure 96. Standby ScreenThe monitoring mode is a special mode that can be
activated only in Standby and is used for specific
types of monitoring, e.g., sidestream CO
2
monitoring
during supplemental O
2
via nasal cannula with SpO
2
monitoring. There is no fresh gas delivery in
monitoring mode and the machine is not in any
ventilation mode.
The alarms that are active in monitoring mode are
comparable to those in Man/Spont mode (see the
“Alarms” chapter for more information.)
If fresh-gas flow is activated while in monitoring
mode, the system switches to Man/Spont mode.
To start the monitoring mode: (machine must be
in Standby)
• Press the >Monitor Mode< soft key on the
Standby screen (1 in Figure 96).
or
• Press the Standby key > < (2 in Figure 96).
The monitoring screen appears (see Figure 97).
Its format is the same as the standard screen,
but no ventilation soft keys are displayed and the
indication “Monitoring” is shown in the status
field.
Figure 97. Monitoring Mode ScreenTo exit monitoring mode and return to Standby:
• Press the Standby key > < (1 in Figure 97),
and confirm by pressing the confirm knob (2 in
Figure 97).
To exit monitoring mode and begin ventilation:
• Press any of the ventilation keys at bottom of
the display panel (3 in Figure 97), and confirm
by pressing the confirm knob (2 in Figure 97).
1
2
1
2
3
