Chapter 8 - Monitoring Displayed Parameters
114 Apollo Operator’s Manual
Part Number: 90 38 237, 6th edition
V
T
/P
AW
Module

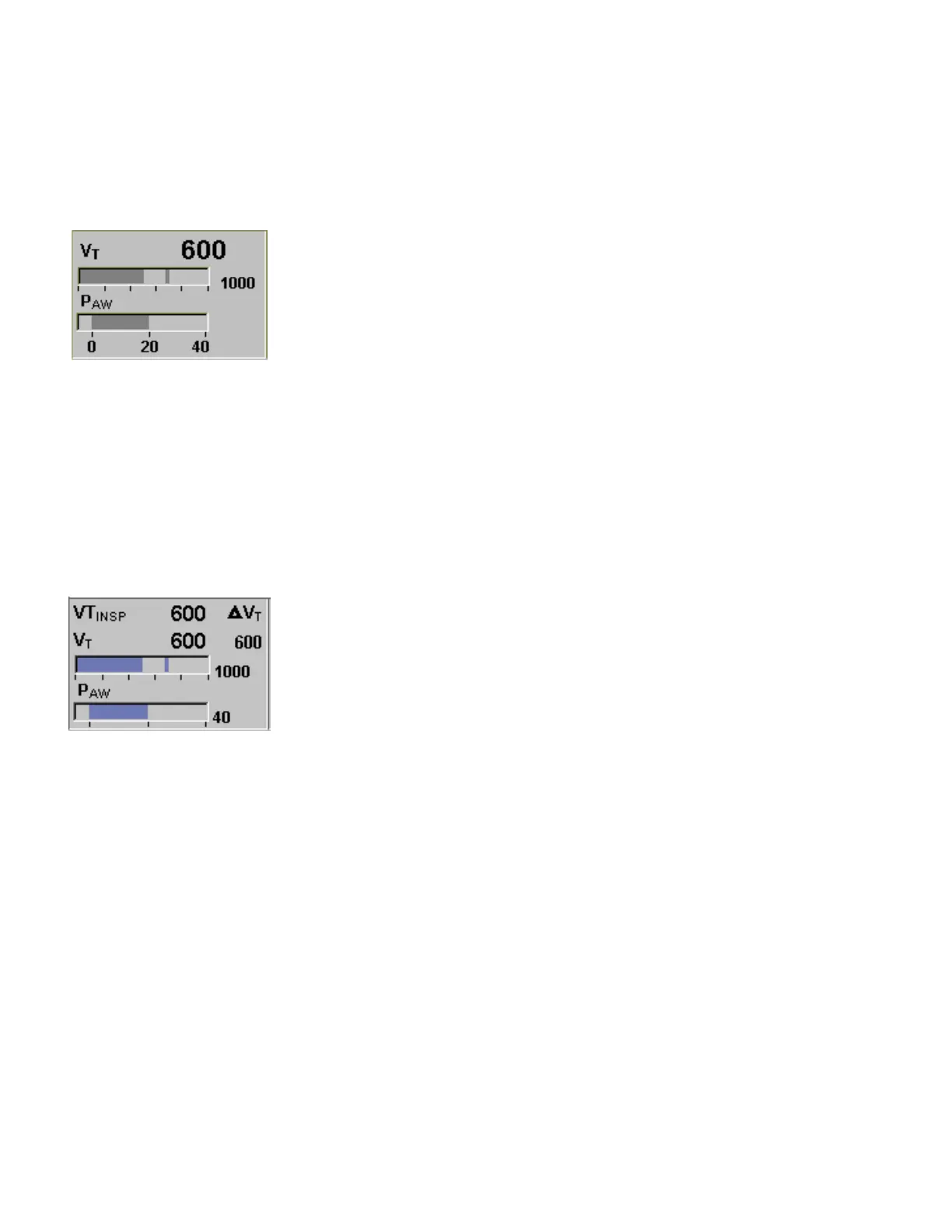

Shows the tidal volume (VT) and airway pressure
(P
AW) as bar graphs, as well as a numerical value for
tidal volume. See “Volumeter Module” on page 116
for more information on the tidal volume graph.
Delta V
T
Module
Shows the tidal volume (VT) and airway pressure
(P
AW) as bar graphs, as well as a numerical value for
inspiratory tidal volume (V
TINSP), expiratory tidal
volume (V
T), and the difference between inspiratory
and expiratory tidal volume (∆V
T). See “Volumeter
Module” on page 116 for more information on the
tidal volume graph.
