Removing the AGS scavenger system (optional)

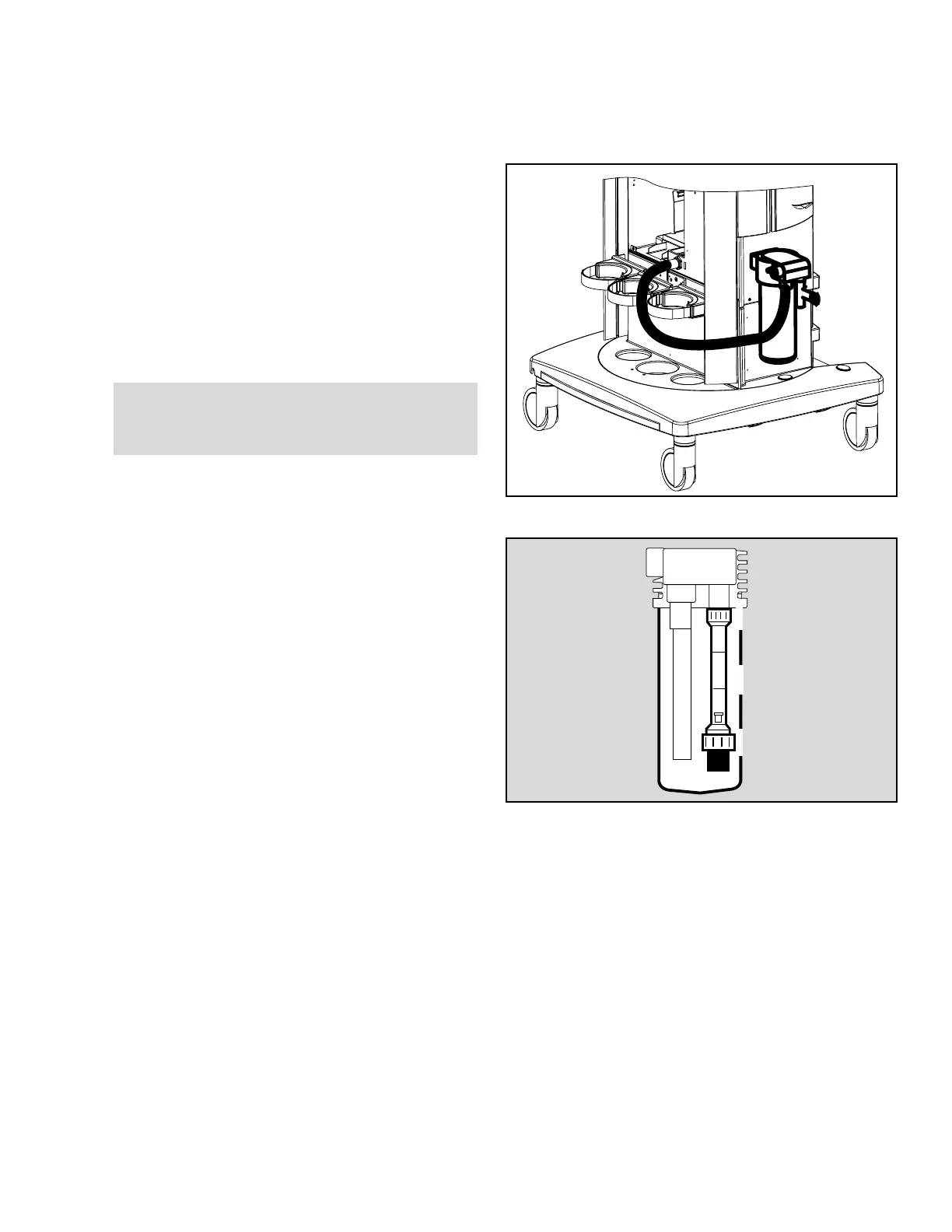

Figure 141. AGS Scavenger System
1. Remove the waste gas vacuum hose connected
between the hospital waste gas disposal system
and the output connection (3 in Figure 141) on
the scavenger.
2. Remove the transfer hose connected between
the scavenger and the scavenger connection on
the back of the anesthesia machine (1 and 2 in
Figure 141).
3. Remove the scavenger system from the
machine.
4. Prepare the parts for cleaning and disinfection.
Figure 142. AGS Scavenger Disassembly5. Disassemble the AGS scavenger:
• Remove the container for buffer
volume.
• Unscrew the union nut (5 in
Figure 142).
• Remove the flow tube (6 in
Figure 142).
• Unscrew the union nut and
remove the particle filter (7 in
Figure 142).The particle filter
can be disposed of with ordinary
waste after being sealed (see
“Maintenance intervals” on
page 185).
1
3
4
2
CAUTION !
Scavenger flow tubes must not be placed in a
cleaning and disinfection machine.
6
D
5
7
