Dräger Apollo Operating Instructions

Overview Chapter 2 - System Components
Apollo Operator’s Manual 19
Part Number: 90 38 237, 6th edition
Overview
This section identifies the major physical components of the Apollo anesthesia machine and provides a brief
description of specific parts.

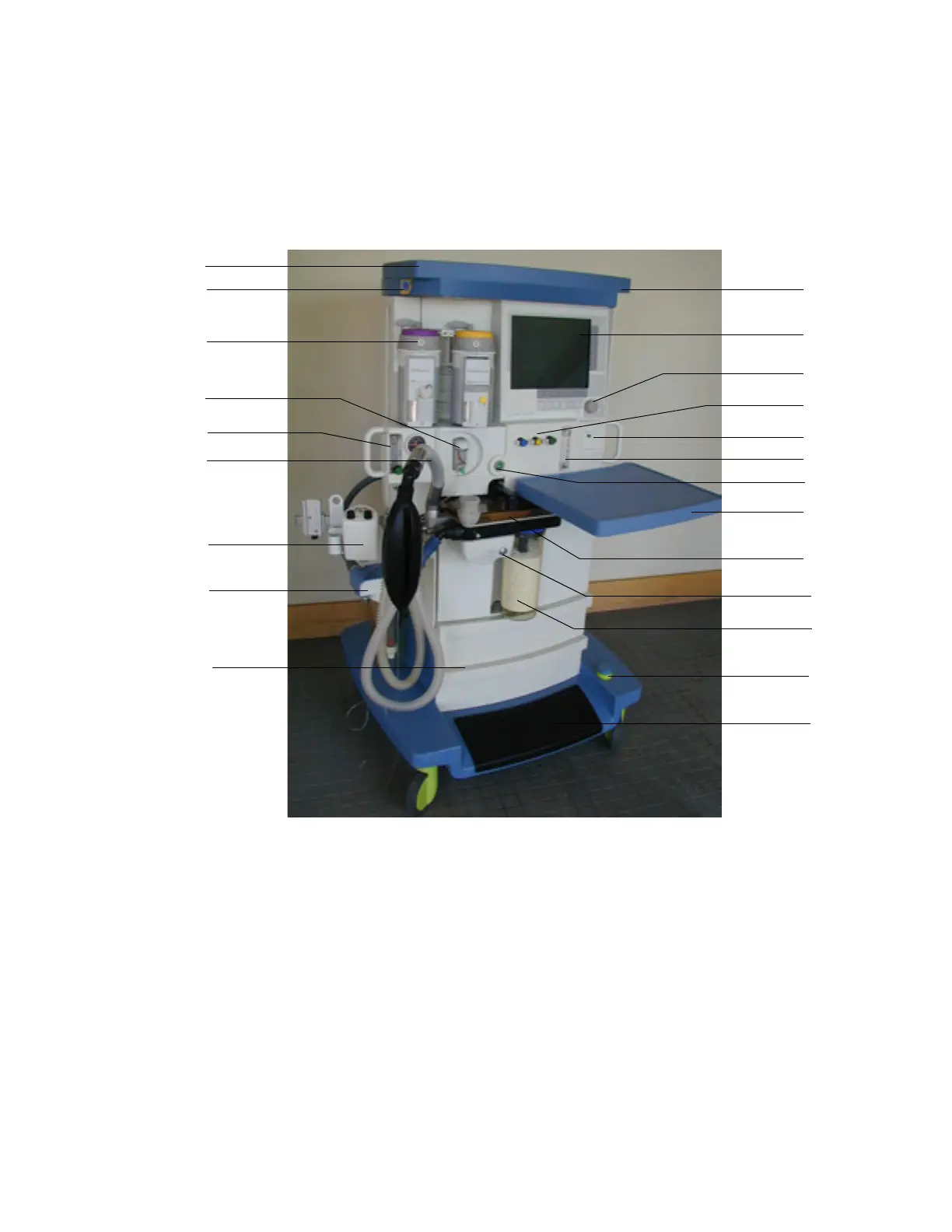

Machine Front View
2
3
5
6
7
8
9
10
11
12
15
16
17
18
19
20
22
1
4
13
14
21
1 Lighting control (dimmer) location 12 Central brake
2 Screen with user interface 13 Footrest
3 Confirm knob 14 Drawers (2) (for storage)
4 Fresh-gas flow controls: O
2
, Air, N
2
O 15 Scavenger (optional)
5 Mains power switch 16 Suction system (optional)
6 Total flow meter 17 Flexible breathing bag arm
7O
2
flush 18 Auxiliary oxygen flowmeter
8 Writing table 19 Water trap with sample line connection
9 Breathing system 20 Vaporizer units with interlock system (optional)
10 Release button for ventilator unit 21 Auxiliary AC outlet (for Desflurane vaporizer)
11 Absorber (optional: disposable Drågersorb
®
CLIC) 22 Top shelf (for external monitors)
