Chapter 7 - Ventilation Auxiliary Common Gas Outlet (CGO) Ventilation (Optional)
102 Apollo Operator’s Manual
Part Number: 90 38 237, 6th edition
Auxiliary Common Gas Outlet
(CGO) Ventilation (Optional)

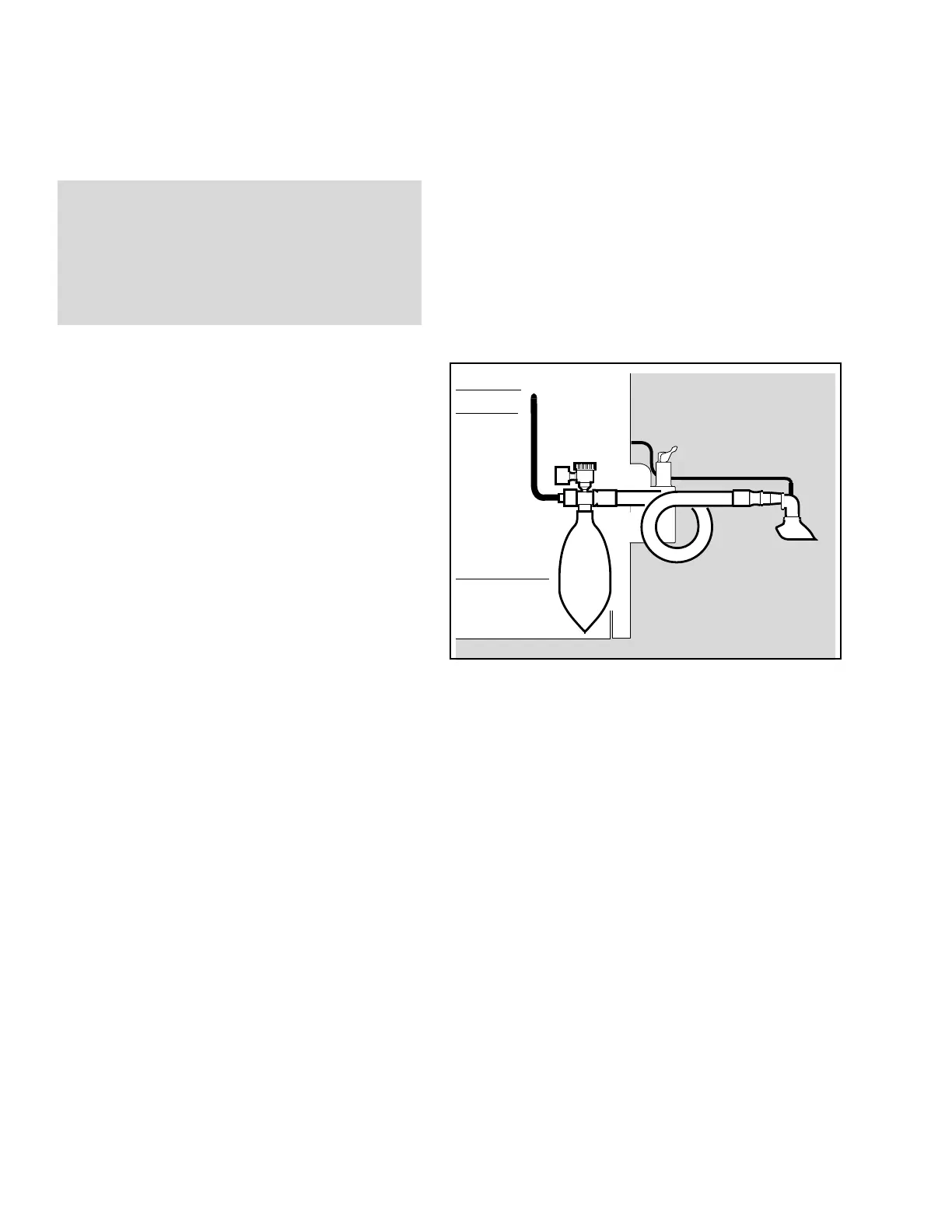

Figure 75. Auxiliary CGO - Bain Circuit shownNote: The Bain system is shown in this example.
Prepare the system as instructed in the
corresponding Instructions for Use.
For prescribed monitoring of O
2
, CO
2
, air, and
anesthetic gases:
1. Connect the sample line to the Luer lock
connection on the mask manifold and to the
water trap connection on the front of the Apollo
(1 in Figure 75).
For mask manifolds without a sample line
connector:
Place a T-piece with filter
between the mask pipe and
fresh gas connection port.
or:
where applicable, use a Luer
lock filter connection.
Connect the fresh gas hose of the Bain system to the
auxiliary common gas outlet (2 in Figure 75).
Connect the gas scavenging system hose of the non-
rebreathing system (3 in Figure 75) to the Y-piece of
the Apollo breathing system.
Follow the Instructions for Use provided with the non-
rebreathing system.
WARNING !
Only non-rebreathing systems with a breathing
bag or additional pressure relief valve may be
used on the Apollo. Check the fresh-gas flow
and inflation of breathing bag; do not use non-
rebreathing systems if the flow is insufficient.
3
2
1
1
