Chapter 2 - System Components Vaporizer Exclusion Systems
24 Apollo Operator’s Manual
Part Number: 90 38 237, 6th edition
Dräger Auto Exclusion 2-Vaporizer
Mount (Optional)
This system has an automatic interlock system that
ensures only one vaporizer can be used at a time.
When one of the two vaporizers is selected for use
(opened), the interlock mechanism within that
vaporizer’s mounting system is activated
automatically, preventing the other vaporizer from
being used.
Note: Only vaporizers labeled as “AUTO
EXCLUSION” vaporizers are compatible with
the Dräger Auto Exclusion 2-Vaporizer
Mount. See Tab le 1 for the Auto Exclusion
Vaporizer technical data.
When using a Desflurane vaporizer, it must be
plugged into the auxiliary power outlet located on the
side of the machine above the vaporizer mount.

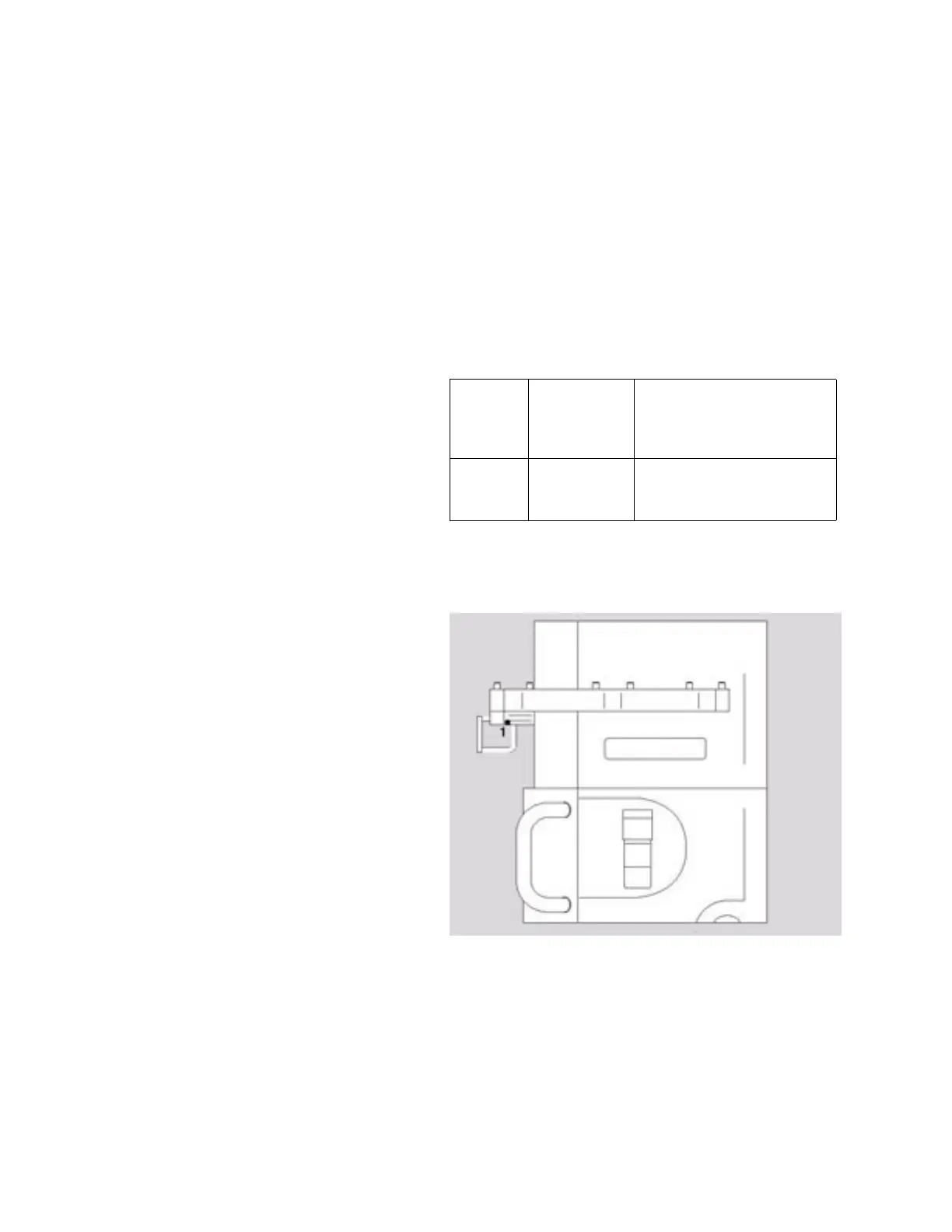

Figure 5. Dräger Auto Exclusion 3-Vaporizer MountDräger Auto Exclusion 3-Vaporizer
Mount (Optional)
This system has an automatic interlock system that
ensures only one vaporizer can be used at a time.
When any one of the three vaporizers is selected for
use (opened), the interlock mechanism within that
vaporizer’s mounting system is activated
automatically, preventing the other two vaporizers
from being used.
Note: Only vaporizers labeled as “AUTO
EXCLUSION” vaporizers are compatible with
the Dräger Auto Exclusion 3-Vaporizer
Mount. See Tab le 1 for the Auto Exclusion
Vaporizer technical data.
When using a Desflurane vaporizer, it must be
plugged into the auxiliary power outlet located on the
side of the machine above the vaporizer mount.
Note: The Desflurane vaporizer should be installed
in the far left position (1 in Figure 5) with the
Dräger Auto Exclusion 3-Vaporizer Mount in
order to have optimum viewing area of the
display screen.
Table 1: Dräger Auto Exclusion Vaporizer Technical
Data
Normal
Operating
Range
≤ 10 L/min Dräger Vapor 2000 Instruction
for Use Manual’s delivered
concentration accuracy values
apply.
Extended
Operating
Range
>10 ≤ 15 L/min Dräger auto exclusion
vaporizer concentration output
accuracy may be reduced.
