Dräger Apollo Operating Instructions

Chapter 8 - Monitoring Loops (Optional)
120 Apollo Operator’s Manual
Part Number: 90 38 237, 6th edition
Loops (Optional)
To display the loops screen:

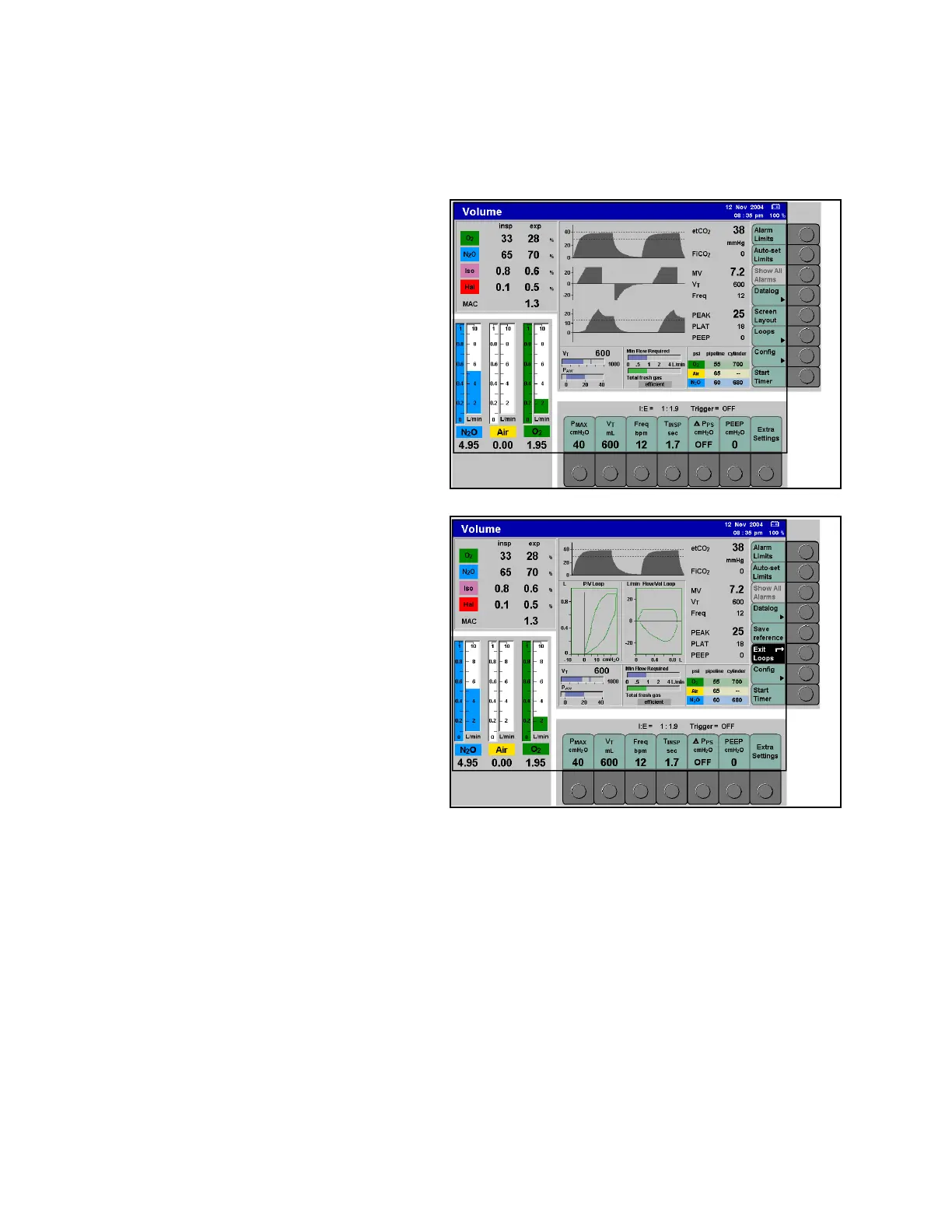

Figure 83. Loops Key on Standard Screen• Press the >Loops< soft key on the standard
screen.
The P/V loop and the Flow/Vol loop are displayed on
the screen in place of the two lower curves (refer to
Figure 84). Each loop remains displayed for three
breathing cycles; the color intensity of the loop
decreases with each cycle.
The scale of the Pressure and Flow axes depends on
the scale selected for the real-time pressure and flow
curves. The Volume axis for both loops is the same
as the scale in the V
T/PAW module.
See the “Configuration” chapter for more information
on scale configuration.
Figure 84. Loops ScreenTo display the current loop in a different color to
use it as a reference:
• Press the >Save reference< soft key while in
the loops screen (1 in Figure 84). The soft key
label changes to >Delete reference<.
The reference loop can be deleted by pressing the
>Delete reference< soft key or by changing to
Standby mode.
To remove the loops from the screen:
• Press the >Exit Loops< soft key while in the
loops screen (2 in Figure 84). The loops are
removed and the two lower curves are
displayed again.
1
1
2
