Dräger Apollo Operating Instructions

Chapter 3 - User Interface User Controls
34 Apollo Operator’s Manual
Part Number: 90 38 237, 6th edition
Setting/Selecting Ventilation Parameters
Example: setting PEEP
1. Press the soft key >PEEP<.
2. Rotate the confirm knob until the desired value is
displayed.
3. Push the confirm knob to confirm the new value.
If the new value is not confirmed within 15
seconds, it automatically reverts to the original
value.

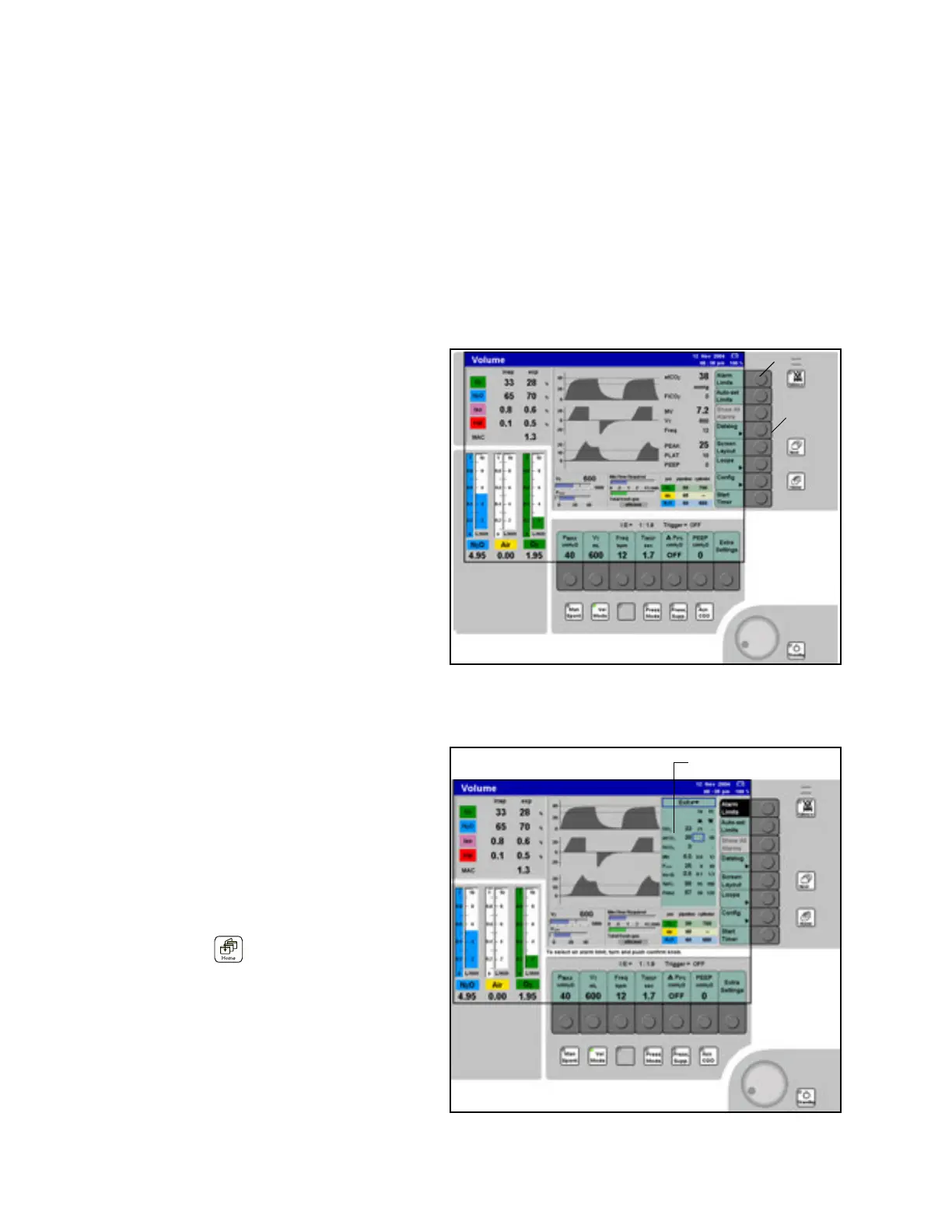

Figure 15. Location of Monitoring/Configuration Keys
Monitoring/Configuration Control Keys
The majority of monitoring and configuration
functions are performed using the vertical column of
soft keys along the right side of the screen (1 in
Figure 15). These keys have variable functions and
their labels change according to which monitoring
screen is selected (standard, data, or trend). An
arrow () on the soft key label indicates that
pressing that key will bring up a second set of soft
keys with further user options.
Setting/Selecting Monitoring Functions
Example: change lower alarm limit for etCO
2
:
1. Press the soft key >Alarm Limits< (2 in Figure
15). The alarm limits menu is displayed on the
screen.
2. Turn the confirm knob to select the low alarm
limit value for etCO
2
(see Figure 16).
Figure 16. Alarm Limits Menu3. Push the confirm knob to confirm the selection.
4. Turn the confirm knob until the desired alarm
value is displayed.
5. Push the confirm knob to confirm the new alarm
limit value.
6. Exit the alarm limits menu by either:
• confirming the close symbol >
z< with
the confirm knob, or
• pressing the > < key.
2
1
Alarm Limits Menu
