Dräger Apollo Operating Instructions

Connecting AC Power Chapter 4 - System Setup
Apollo Operator’s Manual 53
Part Number: 90 38 237, 6th edition
Connecting AC Power

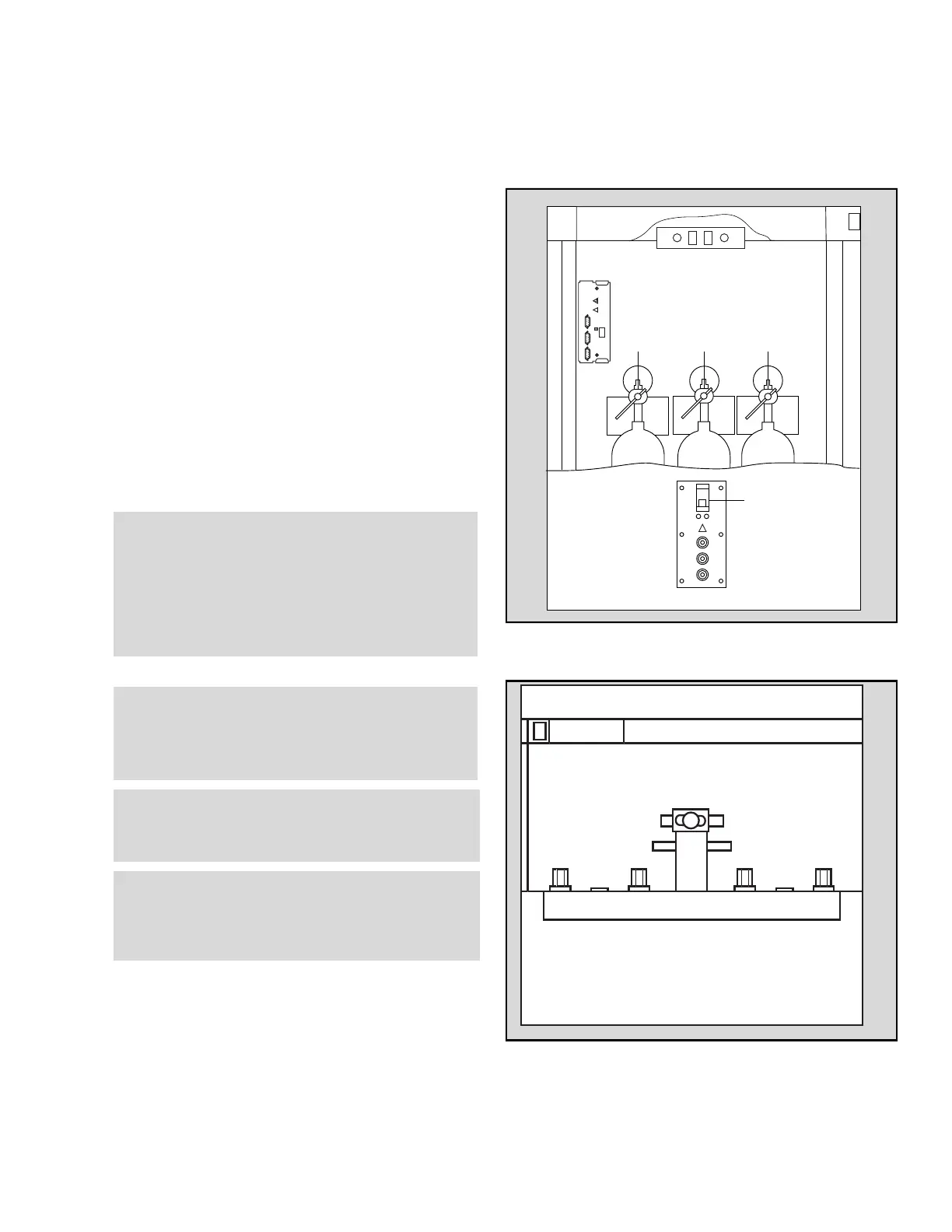

Figure 34. Location of Auxiliary Outlets on Back of
Machine
Connecting Auxiliary Devices
The Apollo has two auxiliary outlets on the back of
the machine (1 in Figure 34). Each outlet is rated 4
amps and is protected by circuit breakers.
• connect the external device to an outlet on the
back of the machine
There is also a dedicated (2 amp) outlet for a
Desflurane vaporizer on the side of the machine,
above the vaporizer mount (1 in Figure 35). This
outlet is protected by safety fuses.
• install the Desflurane vaporizer in its mount
and connect it to the outlet on the side of the
machine
Figure 35. Location of Desflurane Outlet
1
2
COM 1
COM 2
IV System
SpO
2
!
Caution! Consult Accompanying Documents
ESD Seneltivity
!
WARNING !
Connecting equipment to the auxiliary outlets
may cause the patient leakage current to rise
above the permitted values if a protective earth
conductor should fail. The risk of electric shock
cannot be excluded in such cases.
1
WARNING !
Additional power adapter sockets must not be
connected to the auxiliary outlets.
CAUTION !
Do not connect HF surgical devices to the auxiliary
outlets
CAUTION !
The auxiliary outlets are not powered by the
uninterruptible power supply (UPS) in the event of a
power failure.
