Chapter 4 - System Setup Installing Vaporizers
50 Apollo Operator’s Manual
Part Number: 90 38 237, 6th edition
5. Make all necessary connections between the
suction bottle, suction regulator, and piped
vacuum system as specified in the Instructions
for Use provided with the bottle assembly.
Installing Vaporizers
Install vaporizers as directed in the appropriate
Instructions for Use supplied with the vaporizers
available for use with the Apollo.
Installing the Manual Breathing
Bag Arm

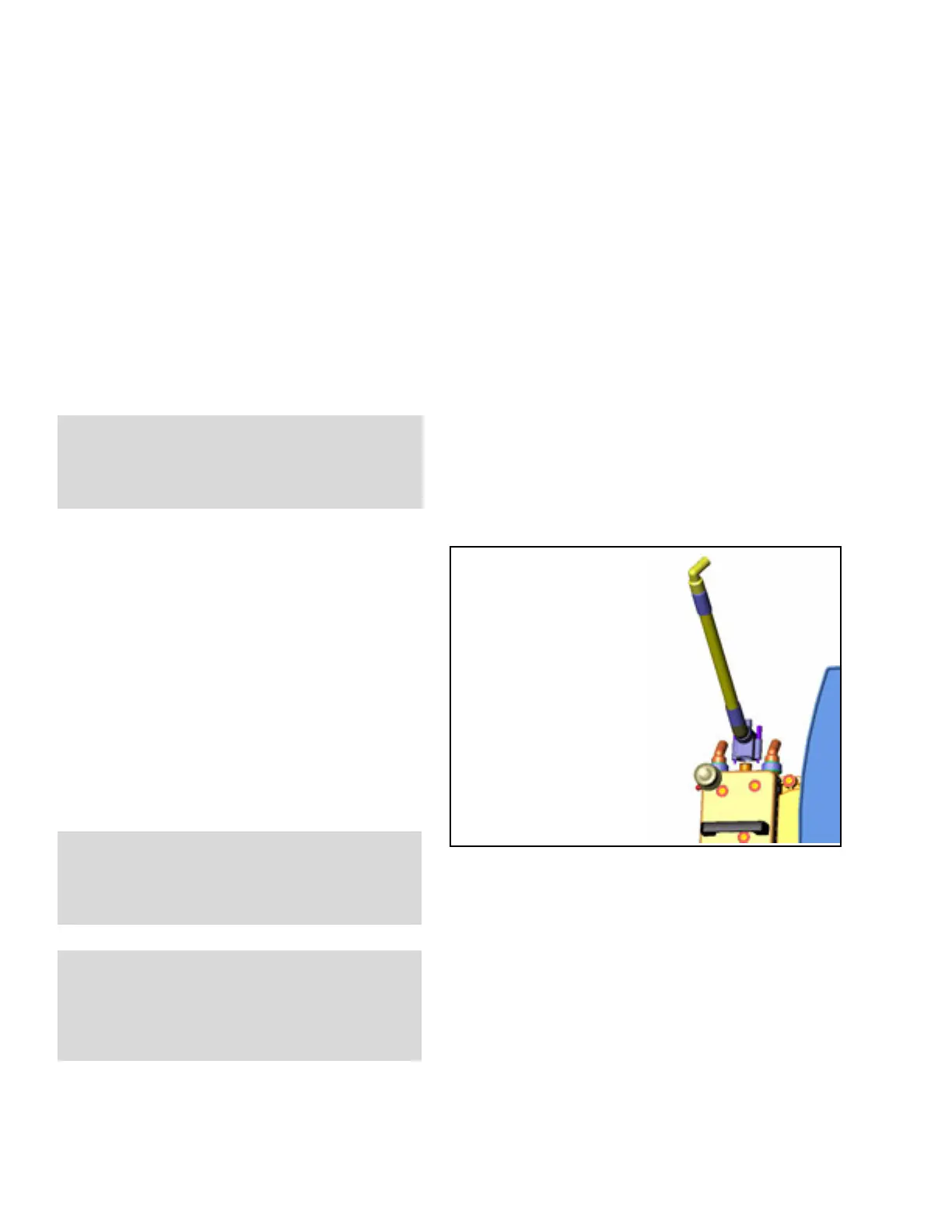

Figure 32. Breathing Bag Arm Connection
1. Slide the bag arm assembly onto the breathing
bag port on the side of the breathing system (1 in
Figure 32).
2. Tighten the two thumb screws (2 in Figure 32) to
secure.
3. Attach the 90° fitting to the end of the bag arm (3
in Figure 32), and attach the breathing bag to the
other end of the fitting.
Connecting the Breathing Hoses
WARNING !
Breathing bags used on the Apollo must comply
with current ANSI standards.
1
2
2
3
WARNING !
Breathing hoses used on the Apollo must
comply with current ANSI standards.
WARNING !
Do not use antistatic or conductive breathing
hoses. There is a risk of burns when using high
frequency electro-surgical equipment.
To Next Page
