Dräger Apollo Operating Instructions

Reassembling Components Chapter 11 - Cleaning and Maintenance
Apollo Operator’s Manual 179
Part Number: 90 38 237, 6th edition
Reassembling Components

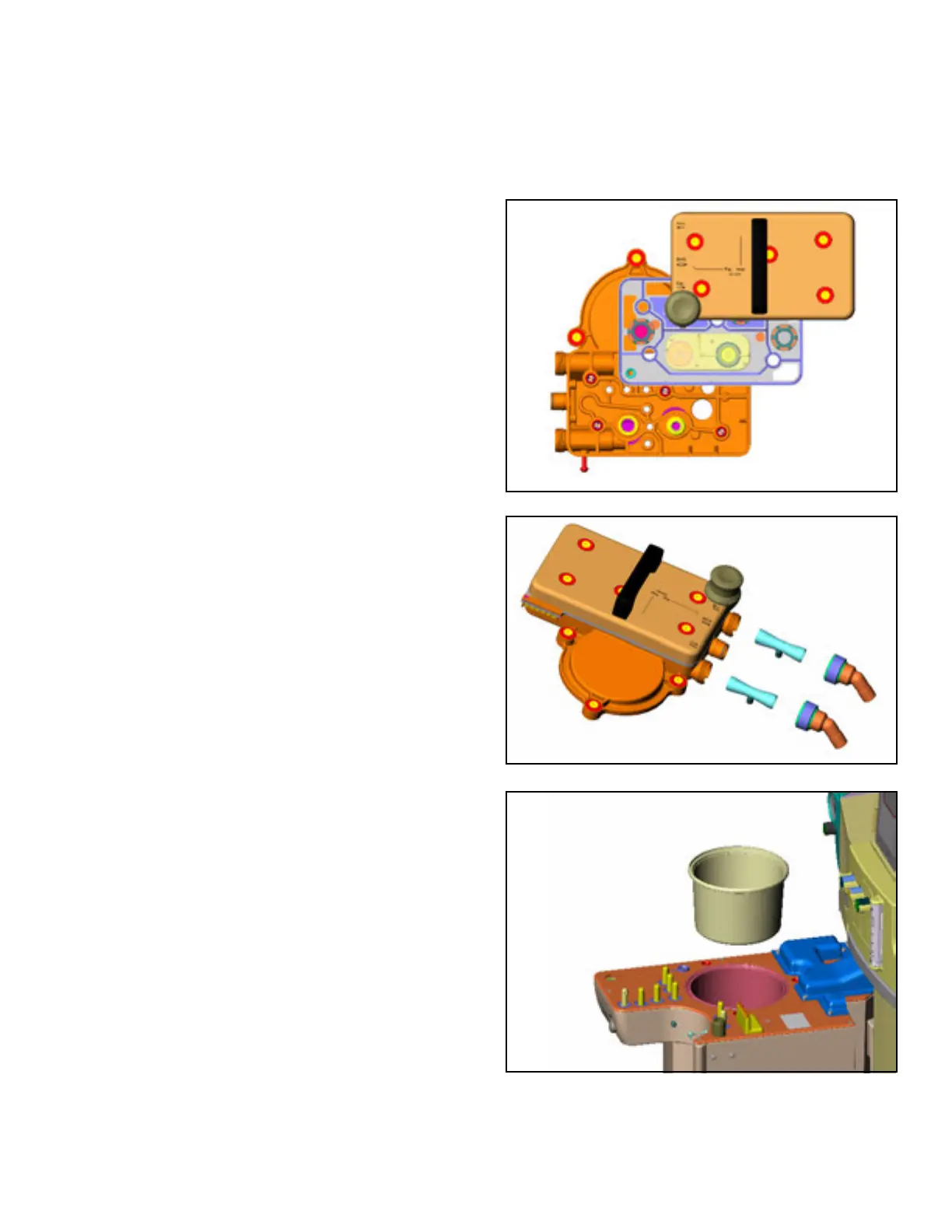

Figure 145. Assembling the Breathing SystemAssembling the breathing system
1. Place the bottom section on a flat surface (1 in
Figure 145).
2. Fit the metal valve plate onto the bottom section
(2 in Figure 145).
3. Fit the cover securely on top of the valve plate (3
in Figure 145).
4. Tighten the five sealing screws a quarter turn
clockwise (4 in Figure 145).
Inserting the flow sensors
Figure 146. Installing the Flow Sensors
1. Insert the flow sensors (1 in Figure 146) into the
two port connections on the breathing system,
with the electric connection on each sensor
facing down in the slot.
2. Orient the inspiratory and expiratory ports (2 in
Figure 146) so that the key on each port lines up
with the slot. Install the ports and tighten by
turning clockwise.
Note: Flow sensors must be recalibrated after
replacement by performing the power-on
self test (see Chapter 5).
Figure 147. Inserting the Ventilator Diaphragm
Installing the ventilator diaphragm
• Insert the ventilator diaphragm so that the
Dräger legend is visible (1 in Figure 147).
1
2
3
4
4
4
4
4
1
1
2
2
1
